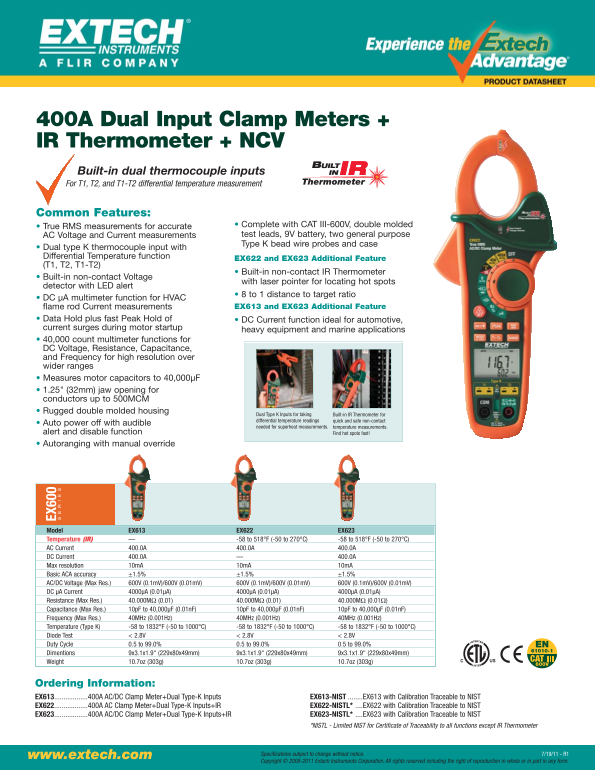

EXTECH EX613 400A Dual Input Clamp Meters + IR Thermometer + NCV Owner's Manual + Specifications + User Guide

400A Dual Input Clamp Meters + IR Thermometer + NCV Built-in dual thermocouple inputs For T1, T2, and T1-T2 differential temperature measurement Common Features:

True RMS measurements for accurate Complete with CAT III-600V, double molded AC Voltage and Current measurements test leads, 9V battery, two general purpose Type K bead wire probes and case

Dual type K thermocouple input with Differential Temperature function

EX622 and EX623 Additional Feature

Built-in non-contact IR Thermometer

Built-in non-contact Voltage

with laser pointer for locating hot spots

detector with LED alert

8 to 1 distance to target ratio

DC μA multimeter function for HVAC

flame rod Current measurements EX613 and EX623 Additional Feature

Data Hold plus fast Peak Hold of DC Current function ideal for automotive, current surges during motor startup heavy equipment and marine applications 40,000 count multimeter functions for DC Voltage, Resistance, Capacitance, and Frequency for high resolution over wider ranges Measures motor capacitors to 40,000μF 1.25" (32mm) jaw opening for conductors up to 500MCM Rugged double molded housing

Dual Type K Inputs for taking Built-in IR Thermometer for differential temperature readings quick and safe non-contact

Auto power off with audible

needed for superheat measurements. temperature measurements.

alert and disable function Find hot spots fast! Autoranging with manual override

Model EX613 EX622 EX623 Temperature (IR) -58 to 518°F (-50 to 270°C) -58 to 518°F (-50 to 270°C) AC Current 400.0A 400.0A 400.0A DC Current 400.0A — 400.0A Max resolution 10m A 10m A 10m A Basic ACA accuracy ±1.5% ±1.5% ±1.5% AC/DC Voltage (Max Res.) 600V (0.1m V)/600V (0.01m V) 600V (0.1m V)/600V (0.01m V) 600V (0.1m V)/600V (0.01m V) DC μA Current 4000μA (0.01μA) 4000μA (0.01μA) 4000μA (0.01μA) Resistance (Max Res.) 40.000MΩ (0.01) 40.000MΩ (0.01) 40.000MΩ (0.01Ω) Capacitance (Max Res.) 10p F to 40,000μF (0.01n F) 10p F to 40,000μF (0.01n F) 10p F to 40,000μF (0.01n F) Frequency (Max Res.) 40MHz (0.001Hz) 40MHz (0.001Hz) 40MHz (0.001Hz) Temperature (Type K) -58 to 1832°F (-50 to 1000°C) -58 to 1832°F (-50 to 1000°C) -58 to 1832°F (-50 to 1000°C) Diode Test < 2.8V < 2.8V < 2.8V Duty Cycle 0.5 to 99.0% 0.5 to 99.0% 0.5 to 99.0% Dimentions 9x3.1x1.9" (229x80x49mm) 9x3.1x1.9" (229x80x49mm) 9x3.1x1.9" (229x80x49mm) Weight 10.7oz (303g) 10.7oz (303g) 10.7oz (303g)

Ordering Information: EX613..................400A AC/DC Clamp Meter+Dual Type-K Inputs EX613-NIST ........EX613 with Calibration Traceable to NIST EX622..................400A AC Clamp Meter+Dual Type-K Inputs+IR EX622-NISTL* ....EX622 with Calibration Traceable to NIST EX623..................400A AC/DC Clamp Meter+Dual Type-K Inputs+IR EX623-NISTL* ....EX623 with Calibration Traceable to NIST

*NISTL - Limited NIST for Certificate of Traceability to all functions except IR Thermometer
