EverFocus EQ120 User Guide and Manual

Summary

The EQ120 is a high-quality, solid-state B/W digital CCD camera designed for professional surveillance and security applications. Utilizing advanced DSP technology, this robust camera ensures accurate and reliable imaging while offering flexible C-mount or CS-mount lens compatibility. This comprehensive manual provides users with essential knowledge, including detailed technical specifications, step-by-step installation guidelines, and crucial safety warnings to ensure optimal performance and longevity of the surveillance system.

📄 Preview ‹ PAGE OF 13 ›

‹

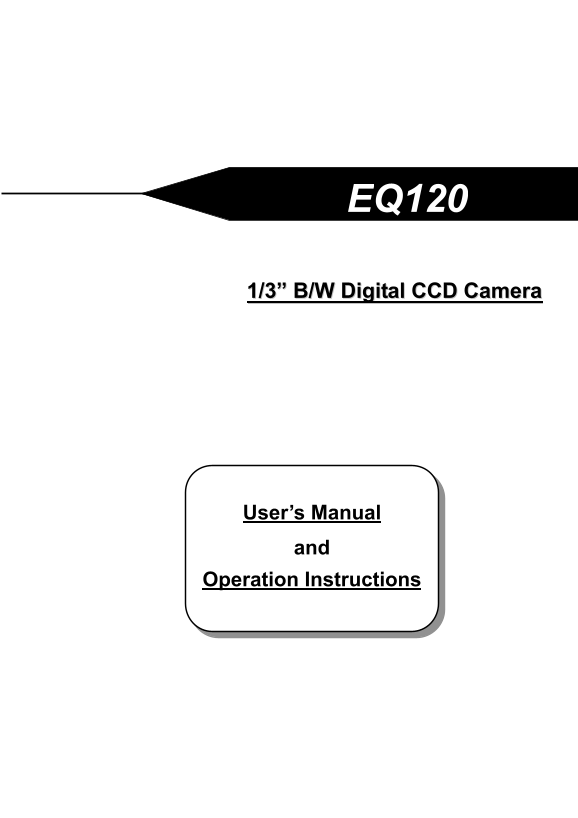

EverFocus EQ120 User Guide and Manual - Page 1

›

Page 1 Text Content

EQ120

1/3” B/W Digital CCD Camera

User’s Manual and Operation Instructions

Page Summary Contents For EverFocus EQ120 User Guide and Manual

Page 1 EQ120 1/3” B/W Digital CCD Camera User’s Manual and Operation Instructions

Page 2 Notice This manual is presented to the users of EQ120 by Ever Focus Electronics Corp. With years of engineering researches, Ever Focus has spared no effort to provide the high quality products to the ...

Page 3 Table of Contents Safety Warning …………………………………………1 Introduction……………………………………………..2 Specification…………………………………………….3 Major Parts and Their Functions………………….…..4 Installation Instructions………………………….….…...

Page 5 Safety Warning 1. Handle the camera with care. Be careful when handling the camera, do not drop it or subject it to strong shock or vibration to prevent any damages to it. Do not disassemble it or pla...

Page 6 Introduction The new EQ120 series is a solid-state B/W video camera specially designed for high quality surveillance applications. It incorporates break through DSP technology that provides most relia...

Page 7 Specification Pickup Device 1/3" SONY B/W CCD Picture Elements 510 x 492 (EIA) 500 x 580 (CCIR) Horizontal Resolution 420 TV lines Sensitivity 0.01 lux/F=1.2 S/N Ratio Over 48 d B (AGC off) Elect...

Page 8 Major Parts Names and Their Functions Front Side Rear (EQ120) Rear(EQ120A)

Page 9 1. Focal Length Adjustment Ring Use this ring to adjust the appropriate focal length according to the type of lens. Rotate the ring clockwise for the CS-mount lens, rotate it counterclockwise for the ...

Page 10 ES (Electronic Shutter) Off/On ES ON: The camera continuously adjusts the shutter speed from 1/60 (EIA), 1/50(CCIR) second to 1/100,000 second according to the luminance conditions of the scene. ES OF...

Page 11 VD/DD (Auto Iris lens Type) For video drive auto iris lens, please set switch to VD. For direct drive iris lens, set switch to DD. The default setting is DD. Wire the cable of lens to lens connector a...

Page 12 Installation Instructions 1. Remove the cover cap from the top of the lens mount. 2. To attach a C-mount/CS-mount lens, turn the focal length adjustment ring to the appropriate position. Note: If a C-...

Page 13 Ever Focus Electronics Corp. Head Office: Europe Office: 12F, No.79 Sec. 1 Shin-Tai Wu Road, Albert-Einstein-Strasse 1 Hsi-Chih, Taipei, Taiwan D-46446 Emmerich, Germany TEL: +886-2-26982334 TEL: 49-2...

Manual Details

Brand	EverFocus
Pages	13
File Size	198.95 KB
Published	May 19, 2026

111 views

Enter the captcha to get the download link:

Frequently Asked Questions

What is the recommended operating temperature range?

The camera should be installed where the temperature stays between 0℃ and 50℃ (32℉ to 122℉).

How do I clean the CCD sensor and lens?

Use a soft cloth for the body, or lens tissue/cotton-tipped applicator with ethanol for the CCD sensor and lens.

Can this camera use different types of lenses?

Yes, it is compatible with either C-mount or CS-mount lenses.

What environmental hazards should be avoided during installation?

Do not install the camera near electric/magnetic fields (TVs, radio transmitters), or in high temperatures.
