EverFocus ED100 Operation Instructions

Summary

This compact CCD dome camera provides versatile, full-function surveillance monitoring using a high-sensitivity 1/3" Sony B/W sensor. Engineered for reliable visual coverage and suitable for both ceiling and wall mounting applications. The accompanying manual serves as a complete technical guide, detailing optimal installation procedures, wiring diagrams, lens adjustment techniques, and operational specifications. It is designed for professional installers, technical service personnel, and security systems integrators needing a stable and precise surveillance solution.

📄 Preview ‹ PAGE OF 11 ›

‹

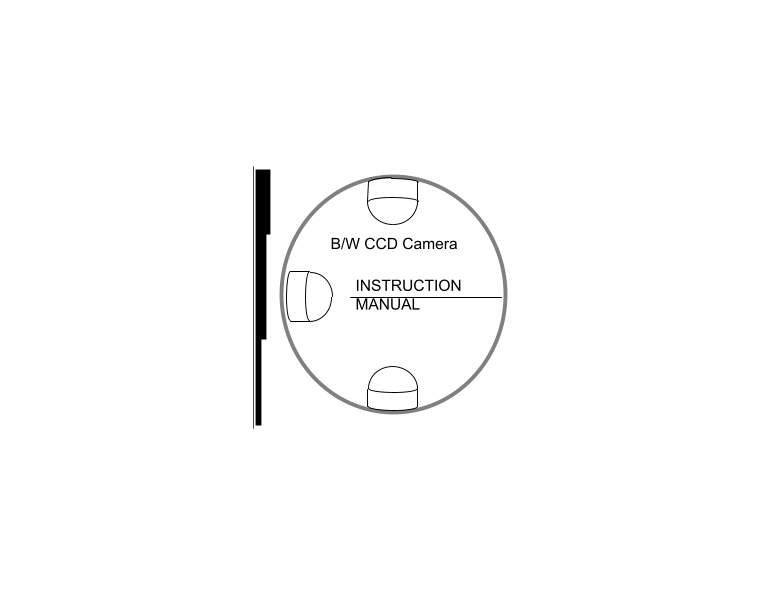

EverFocus ED100 Operation Instructions - Page 1

›

Page 1 Text Content

B/W CCD Camera

INSTRUCTION MANUAL

Page Summary Contents For EverFocus ED100 Operation Instructions

Page 1 B/W CCD Camera INSTRUCTION MANUAL

Page 2 Important Safeguards Read all of these instructions. Save these instructions for later use. All warnings on the products and in the operating instructions should be adhered to. Unplug this appliance s...

Page 3 Follow all warnings and instructions marked on the appliance. Do not overload wall outlets and extension cords as this can result in fire or electric shock. Never push objects of any kind into his app...

Page 4 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER ( OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERRSONN...

Page 5 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection....

Page 6 I. General This Camera is a compact, full functioned CCD Camera. Its stylish appearance can be applied as per installer's ideal locations. These dome cameras can be mounted either on the ceiling or on...

Page 7 III. Lens Available * Standard board lens f=3.6 mm, F=2.0 mm. * Other available lens : Lens f=2.5 mm, F=2.0 mm Lens f=4.3 mm, F=2.0 mm Lens f=6.0 mm, F=2.0 mm Lens f=8.0 mm, F=2.0 mm VI. Installation ...

Page 8 a. Floor Mount b. Ceiling Mount c. Wall mount, d. Wall mount, aim to the right aim to the left Connect the BNC connector of the camera to a monochrome monitor, or other video device through a 75 ohm t...

Page 9 Connect the +12VDC regulated power source of the camera (DC Jack) to the 12VDC Power-in jack with 2 mm, center+, outer- plug. 7. Once the image appears on the monitor, loosen the fixing screw located ...

Page 10 IV. Specifications 1/3" SONY B/W CCDPickup Device Picture Elements 510 x 492(EIA) 500 x 582(CCIR) 420 TV lines Horizontal Resolution 0.04 Lux /F=1.2Sensitivity Over 48 d B (AGC off)S/N Ratio 1/50...

Page 11 V.Package Contents One Camera unit User’s manual Your Ever Focus product is designed Ihr Ever Focus Produkt wurde and manufactured with high quality entwickelt und hergestellt mit materials and compon...

Manual Details

Brand	EverFocus
Pages	11
File Size	84.12 KB
Published	May 19, 2026

92 views

Enter the captcha to get the download link:

Frequently Asked Questions

How do I clean this camera system safely?

Unplug it, then use a damp cloth for cleaning. Do not use liquid or aerosol cleaners.

What is the required power source and voltage?

The camera requires a stable regulated power source of +12VDC

Where should the camera NOT be used?

Do not operate it near water sources, in wet basements, or near swimming pools.

Can I mount this device on a wall or ceiling?

Yes, dome cameras can be mounted easily on either the ceiling or on the wall. Use manufacturer-approved kits for mounting.
