ESTES 1861 – Blast Jet Manual
Summary
Launch your rocketry passion with confidence using this comprehensive guide for the Air Power Blast Jets system. The manual provides detailed instructions on assembly, safe operation setup, and optimal launch procedures for both pumps and rocket units. Designed for amateur model rocketry enthusiasts, it ensures every user knows how to perform crucial pre-flight checks and adhere to stringent safety guidelines. Perfect for outdoor launches in large open fields.

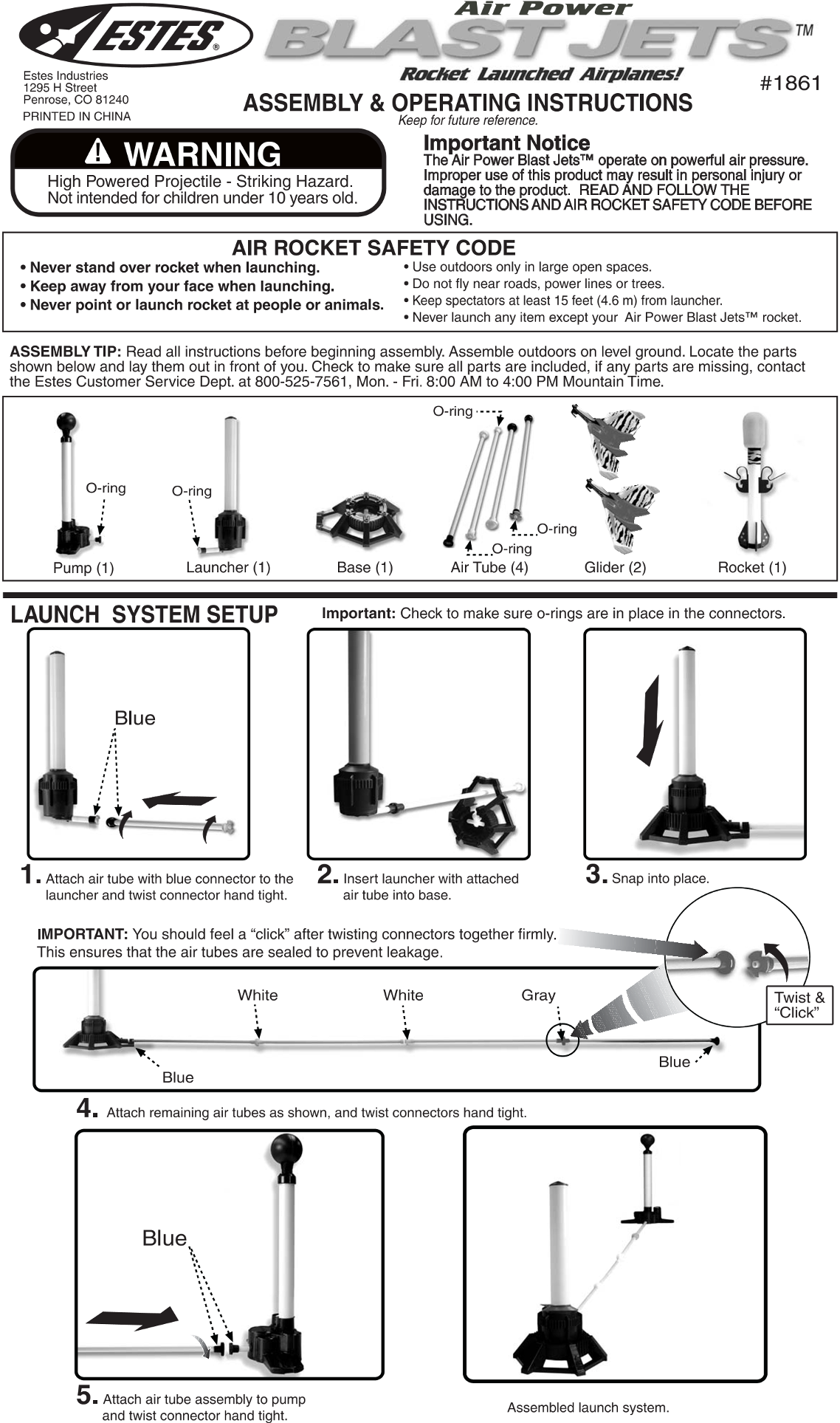

Page 1 Text Content
区 1] Estes Industries
ACEe Z LNTCNET THTATES7 #1861
1295 H Street
Penrose, CO 81240 ASSEMBLY & OPERATING INSTRUCTIONS PRINTED IN CHINA Keep pr future /ee1ence.
信 WARNING Important Notice
The Air Power Blast Jetsr M operate on powerful air pressure. Improper use of this product may result in personal injury or
High Powered Projectile - Striking Hazard.
damage to the product， READ AND FOLLOW THE
Not intended for children under 10 years old.
INSTRUCTIONSANDAIR ROCKET SAFETY CODE BEFORE USING.
AIR ROCKET SAFETY CODE
*Never stand over rocket when launching. * Use outdoors only in large open spaces. *Do not fy near roads, power lines or trees.
*。Keep away from your face when launching,
* Keep spectators at least 15 feet (4.6 m) from launcher
* Never point or launch rocket at people or animals.
。Never launch any item except your Air Power Blast Jetsry rocket.
ASSEMBLYTIP: Read all instructions before beginning assembly Assemble outdoors on level ground. Locate the parts shown below and lay them out in front of you. Check to make sure all parts are included, if any parts are missing, contact the Estes Customer Service Dept, at 800-525-7561, Mon. - Fri. 8:00 AM to 4:00 PM Mountain Time.
.全 Pump (1) Launcher (1) Rocket (1)
LAUNCH SYSTEM SETUP Important: Check to make sure 0-rings are in place in the connectors.
1 ma Attach air tube with blue connectorto the 2. Insert launcher with attached 3. Snap into place.
launcher and twist connector hand tight， airtube into base.
IMPORTANT: You should feel a “click” after twisting connectors together firmly. This ensures that the airtubes are sealed to prevent leakage，
White White Gray Twist &
1 ， 1 答 “Click” ， 了 ( 红 na
、…、 Blue
4. Attach remaining air tubes as shown, and twist connectors hand tight.
5. Attach air tube assembly to pump
Assembled launch system.
and twist connector hand tight.
Page Summary Contents For ESTES 1861 – Blast Jet Manual
Manual Details
| Brand | Estes |
|---|---|
| Pages | 2 |
| File Size | 1.61 MB |
| Published | June 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Where should I launch the rocket?
Use a large open space, such as a field, and ensure it is away from roads, buildings, power lines, or trees.
What safety precaution must be followed when launching?
Keep spectators at least 15 feet (4.6 m) from the launcher, never point or launch at people or animals, and always read the Air Rocket Safety Code.
How do I check if my assembled launch system is correct?
Ensure all connectors are twisted hand tight until you feel a distinct 'click,' which confirms they are sealed and prevent leakage.
What conditions should I be aware of regarding setup?
The launcher must be level, and when launching rockets or gliders, it is best to have another person observe the launch and recovery process with you.
