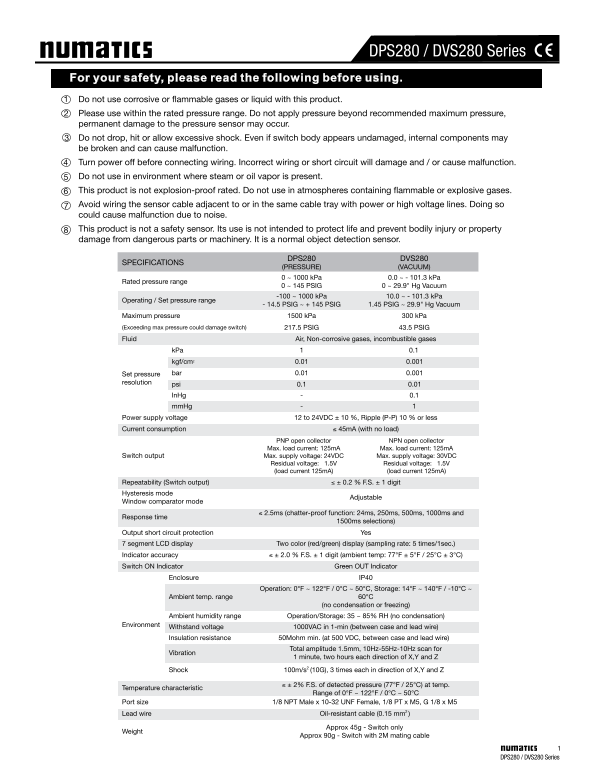

EMERSON Safety Manual Series DPS280 DVS280 ASCO

DPS280 / DVS280 Series

Do not use corrosive or flammable gases or liquid with this product. Please use within the rated pressure range. Do not apply pressure beyond recommended maximum pressure, permanent damage to the pressure sensor may occur. Do not drop, hit or allow excessive shock. Even if switch body appears undamaged, internal components may be broken and can cause malfunction. Turn power off before connecting wiring. Incorrect wiring or short circuit will damage and / or cause malfunction. Do not use in environment where steam or oil vapor is present. This product is not explosion-proof rated. Do not use in atmospheres containing flammable or explosive gases. Avoid wiring the sensor cable adjacent to or in the same cable tray with power or high voltage lines. Doing so could cause malfunction due to noise. This product is not a safety sensor. Its use is not intended to protect life and prevent bodily injury or property damage from dangerous parts or machinery. It is a normal object detection sensor.

DPS280 DVS280

SPECIFICATIONS

(PRESSURE) (VACUUM) 0 ~ 1000 k Pa 0.0 ~ - 101.3 k Pa

Rated pressure range

0 ~ 145 PSIG 0 ~ 29.9" Hg Vacuum -100 ~ 1000 k Pa 10.0 ~ - 101.3 k Pa

Operating / Set pressure range

- 14.5 PSIG ~ + 145 PSIG 1.45 PSIG ~ 29.9" Hg Vacuum

Maximum pressure 1500 k Pa 300 k Pa (Exceeding max pressure could damage switch) 217.5 PSIG 43.5 PSIG Fluid Air, Non-corrosive gases, incombustible gases

k Pa 0.1 kgf/cm2 0.01 0.001 Set pressure bar 0.01 0.001

resolution

psi 0.1 0.01 In Hg 0.1 mm Hg

Power supply voltage 12 to 24VDC ± 10 %, Ripple (P-P) 10 % or less Current consumption ≤ 45m A (with no load)

PNP open collector NPN open collector Max. load current: 125m A Max. load current: 125m A

Switch output Max. supply voltage: 24VDC Max. supply voltage: 30VDC

Residual voltage:  1.5V Residual voltage:  1.5V (load current 125m A) (load current 125m A)

Repeatability (Switch output) ≤ ± 0.2 % F.S. ± 1 digit Hysteresis mode

Adjustable

Window comparator mode

≤ 2.5ms (chatter-proof function: 24ms, 250ms, 500ms, 1000ms and

Response time

1500ms selections)

Output short circuit protection Yes 7 segment LCD display Two color (red/green) display (sampling rate: 5 times/1sec.) Indicator accuracy ≤ ± 2.0 % F.S. ± 1 digit (ambient temp: 77°F ± 5°F / 25°C ± 3°C) Switch ON Indicator Green OUT Indicator

Enclosure IP40

Operation: 0°F ~ 122°F / 0°C ~ 50°C, Storage: 14°F ~ 140°F / -10°C ~

Ambient temp. range 60°C

(no condensation or freezing)

Ambient humidity range Operation/Storage: 35 ~ 85% RH (no condensation)

Environment

Withstand voltage 1000VAC in 1-min (between case and lead wire) Insulation resistance 50Mohm min. (at 500 VDC, between case and lead wire)

Total amplitude 1.5mm, 10Hz-55Hz-10Hz scan for

Vibration

1 minute, two hours each direction of X,Y and Z

Shock 100m/s2 (10G), 3 times each in direction of X,Y and Z

≤ ± 2% F.S. of detected pressure (77°F / 25°C) at temp.

Temperature characteristic

Range of 0°F ~ 122°F / 0°C ~ 50°C

Port size 1/8 NPT Male x 10-32 UNF Female, 1/8 PT x M5, G 1/8 x M5 Lead wire Oil-resistant cable (0.15 mm2 )

Approx 45g - Switch only

Weight

Approx 90g - Switch with 2M mating cable
