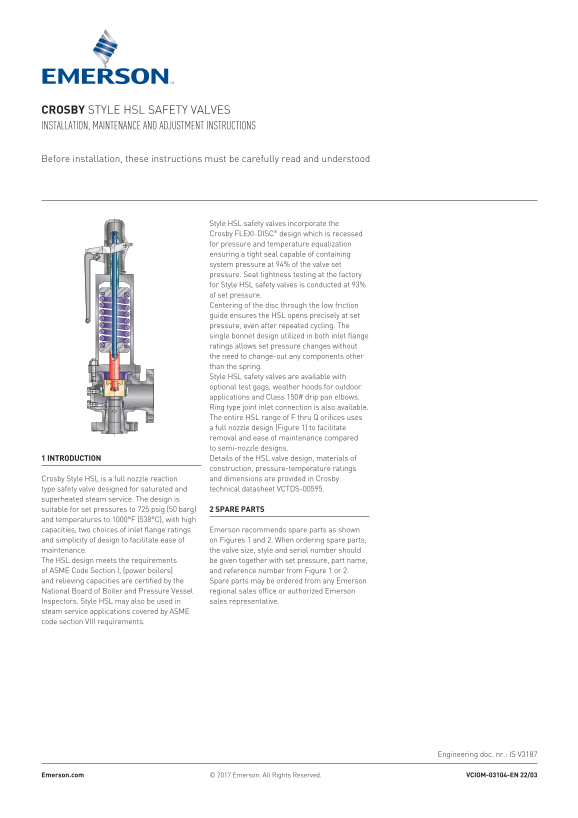

Page 1 Text Content
CROSBY STYLE HSL SAFETY VALVES INSTALLATION, MAINTENANCE AND ADJUSTMENT INSTRUCTIONS
Before installation, these instructions must be carefully read and understood
Style HSL safety valves incorporate the Crosby FLEXI-DISC® design which is recessed for pressure and temperature equalization ensuring a tight seal capable of containing system pressure at 94% of the valve set pressure. Seat tightness testing at the factory for Style HSL safety valves is conducted at 93% of set pressure. Centering of the disc through the low friction guide ensures the HSL opens precisely at set pressure, even after repeated cycling. The single bonnet design utilized in both inlet flange ratings allows set pressure changes without the need to change-out any components other than the spring. Style HSL safety valves are available with optional test gags, weather hoods for outdoor applications and Class 150# drip pan elbows. Ring type joint inlet connection is also available. The entire HSL range of F thru Q orifices uses a full nozzle design (Figure 1) to facilitate removal and ease of maintenance compared to semi-nozzle designs. 1 INTRODUCTION Details of the HSL valve design, materials of construction, pressure-temperature ratings Crosby Style HSL is a full nozzle reaction and dimensions are provided in Crosby type safety valve designed for saturated and technical datasheet VCTDS-00595.
superheated steam service. The design is suitable for set pressures to 725 psig (50 barg) 2 SPARE PARTS and temperatures to 1000°F (538°C), with high capacities, two choices of inlet flange ratings Emerson recommends spare parts as shown and simplicity of design to facilitate ease of on Figures 1 and 2. When ordering spare parts, maintenance. the valve size, style and serial number should The HSL design meets the requirements be given together with set pressure, part name, of ASME Code Section I, (power boilers) and reference number from Figure 1 or 2. and relieving capacities are certified by the Spare parts may be ordered from any Emerson National Board of Boiler and Pressure Vessel regional sales office or authorized Emerson Inspectors. Style HSL may also be used in sales representative. steam service applications covered by ASME code section VIII requirements.
Engineering doc. nr.: IS V3187
Emerson.com © 2017 Emerson. All Rights Reserved. VCIOM-03104-EN 22/03
