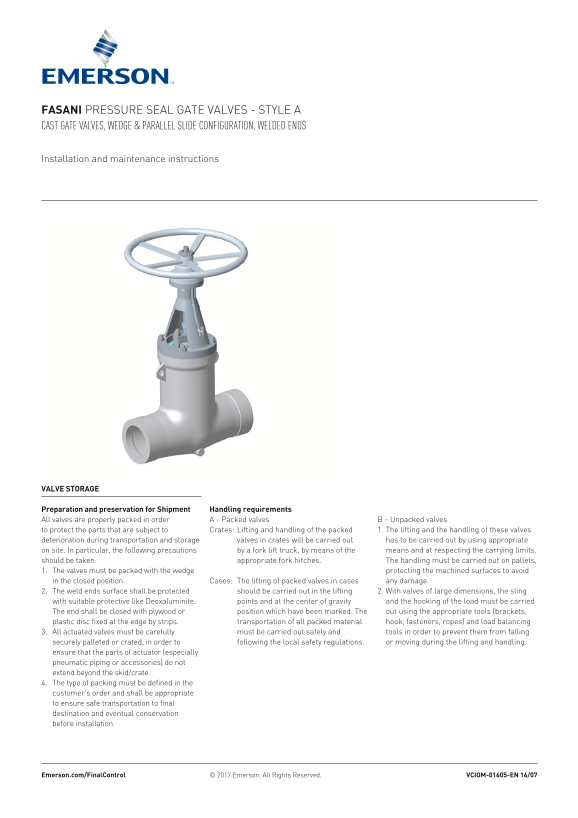

FASANI PRESSURE SEAL GATE VALVES - STYLE A CAST GATE VALVES, WEDGE & PARALLEL SLIDE CONFIGURATION, WELDED ENDS
Installation and maintenance instructions
VALVE STORAGE
Preparation and preservation for Shipment Handling requirements
All valves are properly packed in order A - Packed valves B - Unpacked valves to protect the parts that are subject to Crates: Lifting and handling of the packed 1. The lifting and the handling of these valves deterioration during transportation and storage valves in crates will be carried out has to be carried out by using appropriate on site. In particular, the following precautions by a fork lift truck, by means of the means and at respecting the carrying limits. should be taken: appropriate fork hitches. The handling must be carried out on pallets, 1. The valves must be packed with the wedge protecting the machined surfaces to avoid in the closed position. Cases: The lifting of packed valves in cases any damage. 2. The weld ends surface shall be protected should be carried out in the lifting 2. With valves of large dimensions, the sling with suitable protective like Deoxaluminite. points and at the center of gravity and the hooking of the load must be carried The end shall be closed with plywood or position which have been marked. The out using the appropriate tools (brackets, plastic disc fixed at the edge by strips. transportation of all packed material hook, fasteners, ropes) and load balancing 3. All actuated valves must be carefully must be carried out safely and tools in order to prevent them from falling securely palleted or crated, in order to following the local safety regulations. or moving during the lifting and handling.
ensure that the parts of actuator (especially pneumatic piping or accessories) do not extend beyond the skid/crate. 4. The type of packing must be defined in the customer’s order and shall be appropriate to ensure safe transportation to final destination and eventual conservation before installation.
