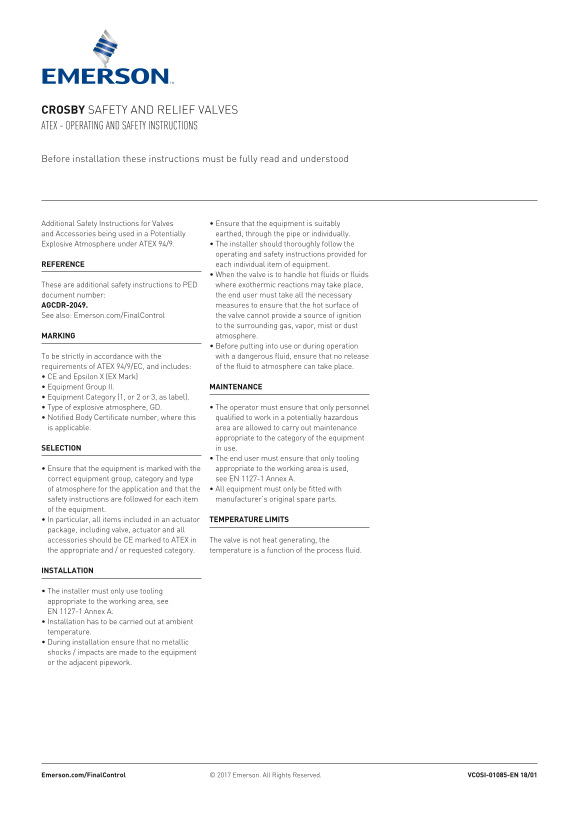

Page 1 Text Content
Crosby Safety and relief valve S ATEX - Op Er ATing And s Af ETy ins Truc Ti Ons
Before installation these instructions must be fully read and understood
additional Safety instructions for valves • ensure that the equipment is suitably and accessories being used in a Potentially earthed, through the pipe or individually. explosive atmosphere under ate X 94/9. • the installer should thoroughly follow the
operating and safety instructions provided for referen Ce each individual item of equipment. • When the valve is to handle hot fluids or fluids these are additional safety instructions to Ped where exothermic reactions may take place, document number: the end user must take all the necessary AGCDr-2049. measures to ensure that the hot surface of See also: emerson.com/final Control the valve cannot provide a source of ignition to the surrounding gas, vapor, mist or dust MArkin G atmosphere. • Before putting into use or during operation to be strictly in accordance with the with a dangerous fluid, ensure that no release requirements of ate X 94/9/e C, and includes: of the fluid to atmosphere can take place.
• Ce and epsilon X (e X Mark) • equipment Group ii. MAinten An Ce • equipment Category (1, or 2 or 3, as label). • type of explosive atmosphere, Gd. • the operator must ensure that only personnel • notified Body Certificate number, where this qualified to work in a potentially hazardous is applicable. area are allowed to carry out maintenance
appropriate to the category of the equipment sele Ction in use. • the end user must ensure that only tooling • ensure that the equipment is marked with the appropriate to the working area is used, correct equipment group, category and type see en 1127-1 annex a. of atmosphere for the application and that the • all equipment must only be fitted with safety instructions are followed for each item manufacturer’s original spare parts.
of the equipment. • in particular, all items included in an actuator te Mper Ature li Mits package, including valve, actuator and all accessories should be Ce marked to ate X in the valve is not heat generating, the the appropriate and / or requested category. temperature is a function of the process fluid.
inst All Ation
• the installer must only use tooling appropriate to the working area, see en 1127-1 annex a. • installation has to be carried out at ambient temperature. • during installation ensure that no metallic shocks / impacts are made to the equipment or the adjacent pipework.
emerson.com/final Control © 2017 emerson. all rights reserved. VCosi-01085-en 18/01
