The Type B-95 is a fully automatic pressure regulating or building valve designed to safely reduce high inlet pressures to precise lower operational levels for utility services including air, water, steam, oil, and gas. This comprehensive manual provides detailed guidance for the expert installation, operation, adjustment, and maintenance of the unit, covering various material options and specialized connections. It is intended for qualified technical personnel who require accurate procedures to ensure safe and peak performance in system applications.
Page 1 Text Content

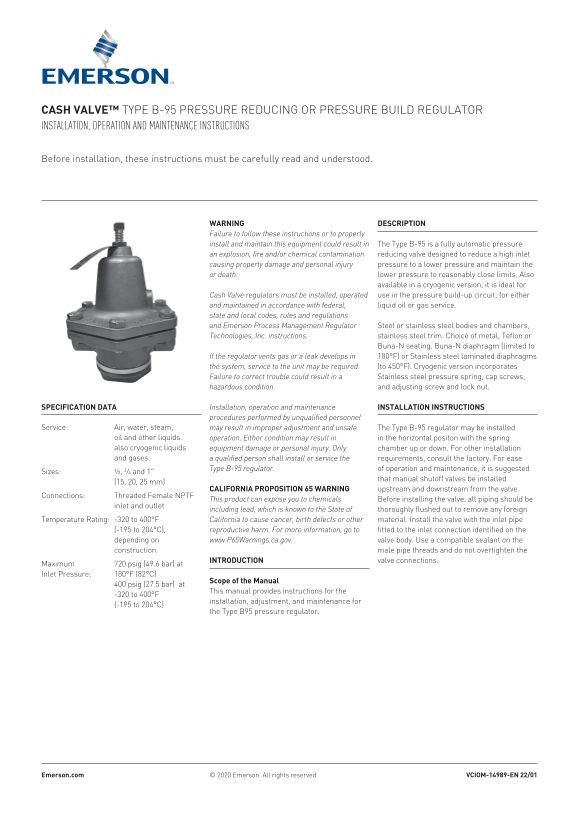

CASH VALVE™ TYPE B-95 PRESSURE REDUCING OR PRESSURE BUILD REGULATOR INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
Before installation, these instructions must be carefully read and understood.
WARNING DESCRIPTION Failure to follow these instructions or to properly install and maintain this equipment could result in The Type B-95 is a fully automatic pressure an explosion, fire and/or chemical contamination reducing valve designed to reduce a high inlet causing property damage and personal injury pressure to a lower pressure and maintain the or death. lower pressure to reasonably close limits. Also
available in a cryogenic version, it is ideal for
Cash Valve regulators must be installed, operated use in the pressure build-up circuit, for either and maintained in accordance with federal, liquid oil or gas service. state and local codes, rules and regulations and Emerson Process Management Regulator Steel or stainless steel bodies and chambers, Technologies, Inc. instructions. stainless steel trim. Choice of metal, Teflon or
Buna-N seating. Buna-N diaphragm (limited to If the regulator vents gas or a leak develops in 180°F) or Stainless steel laminated diaphragms the system, service to the unit may be required. (to 450°F). Cryogenic version incorporates Failure to correct trouble could result in a Stainless steel pressure spring, cap screws, hazardous condition. and adjusting screw and lock nut.
SPECIFICATION DATA Installation, operation and maintenance INSTALLATION INSTRUCTIONS procedures performed by unqualified personnel
Service: Air, water, steam, may result in improper adjustment and unsafe The Type B-95 regulator may be installed
oil and other liquids. operation. Either condition may result in in the horizontal positon with the spring also cryogenic liquids equipment damage or personal injury. Only chamber up or down. For other installation and gases. a qualified person shall install or service the requirements, consult the factory. For ease
Type B-95 regulator. of operation and maintenance, it is suggested
Sizes: ½, 3/4 and 1"
that manual shutoff valves be installed
(15, 20, 25 mm)
CALIFORNIA PROPOSITION 65 WARNING upstream and downstream from the valve.
Connections: Threaded Female NPTF
This product can expose you to chemicals Before installing the valve, all piping should be
inlet and outlet
including lead, which is known to the State of thoroughly flushed out to remove any foreign Temperature Rating: -320 to 400°F California to cause cancer, birth defects or other material. Install the valve with the inlet pipe (-195 to 204°C), reproductive harm. For more information, go to fitted to the inlet connection identified on the depending on www.P65Warnings.ca.gov. valve body. Use a compatible sealant on the
construction. male pipe threads and do not overtighten the
INTRODUCTION valve connections.
Maximum 720 psig (49.6 bar) at Inlet Pressure: 180°F (82°C)
Scope of the Manual
400 psig (27.5 bar) at
This manual provides instructions for the
-320 to 400°F
installation, adjustment, and maintenance for
(-195 to 204°C)
the Type B95 pressure regulator.
VCIOM-14989-EN 22/01© 2020 Emerson. All rights reserved.Emerson.com
Page Summary Contents For EMERSON Manual Cash Valve Type B-95 Pressure Reducing or Pressure Build Regulator, Cash Valve-EN Manual
Manual Details
| Brand | Emerson |
|---|---|
| Pages | 4 |
| File Size | 639.22 KB |
| Published | June 06, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
Who should install or service the Type B-95 regulator?
Only a qualified person shall install or service this equipment to prevent damage or personal injury.
What preparation is needed before installing the valve?
All piping connecting to the unit, including lead, must be thoroughly flushed out to remove any foreign material.
What is the recommended installation method for ease of maintenance?
It is suggested that manual shutoff valves be installed both upstream and downstream from the valve.
How do I adjust the delivery pressure setting?
To adjust, loosen the lock nut (2) and turn the adjusting screw counterclockwise (to decrease pressure) or clockwise (to increase pressure).
