SMCF.R.L. Pressure Control Element Modular Pressure Reducing Valve ARM2500 3000
Summary
This manifold regulator provides robust fluid power control for complex pneumatic systems. The accompanying operational manual is an essential guide designed for engineers, designers, and technicians responsible for installing, maintaining, and troubleshooting industrial compressed air equipment. It thoroughly covers technical specifications, detailed safety precautions (including Dangers, Warnings, and Cautions), component parts lists, and comprehensive maintenance procedures to guarantee safe and reliable system performance.

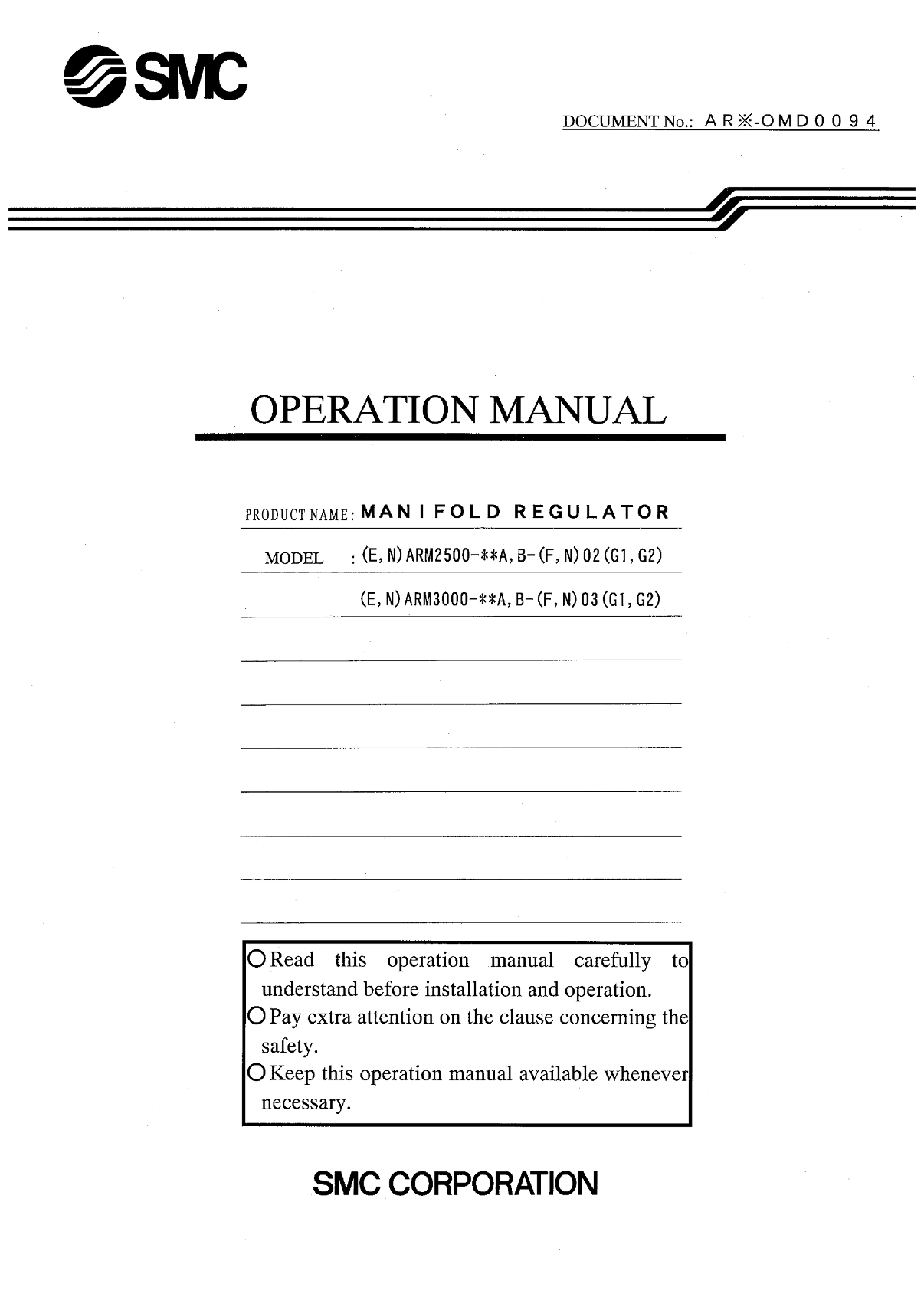

Page 1 Text Content
OPERATION MANUAL
PRODUCTNAME:MANIFOLD REGULATOR
MODEL “:(E, N)ARM2500-##A,B-(F, N)02(61, 62)
《E, NARM3000-##A, B- (F, ND)03(G1T, G2)
GO 〇 Read this operation manual carefully to understand before installation and operation， @ 〇 了 Pay extra attention on the clause concerning the| Safety. GO 〇 Keep this operation manual available whenevel neces SSafy.
SMC CORPRPORAIION
Page Summary Contents For SMCF.R.L. Pressure Control Element Modular Pressure Reducing Valve ARM2500 3000
Manual Details
| Brand | Element |
|---|---|
| Pages | 13 |
| File Size | 2.49 MB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What classifications are used to indicate potential hazards?
The precautions are categorized into 'Caution,' 'Warning,' and 'Danger' to specify the degree of possible hazard or urgency.
What safety steps must be followed before servicing the apparatus?
Before working on the unit, the air supply source must be turned off, the system pressurized with compressed air should be exhausted, and appropriate prevention measures for sudden movement must be confirmed.
What external environments or materials are incompatible with the regulator?
Do not use it in atmospheres of synthetic fluid, thinners, acetone, alcohols, strong chemicals (like sulfuric acid), or flammable fuels such as kerosene and gasoline.
How do I fix an air leak near the bonnet connection?
Simply fasten the bonnet evenly until the air leaks are sealed and resolved.
