EMERSON Instruction Sheet Industrial Baymaster LED Luminaire (Pendant Mount), 650546-001 Appleton
Summary
Illuminate your industrial space with this heavy-duty Appleton Baymaster LED Luminaire Pendant Mount. This manual provides comprehensive guidelines for safely wiring and installing the unit, ensuring full compliance with National and Canadian electrical codes. It details step-by-step procedures for proper grounding, mounting adaptable components, and maintaining operational safety standards in demanding wet and marine environments. Designed specifically for skilled industrial electricians and trained professionals, this guide ensures reliable peak performance for commercial and heavy-duty applications.

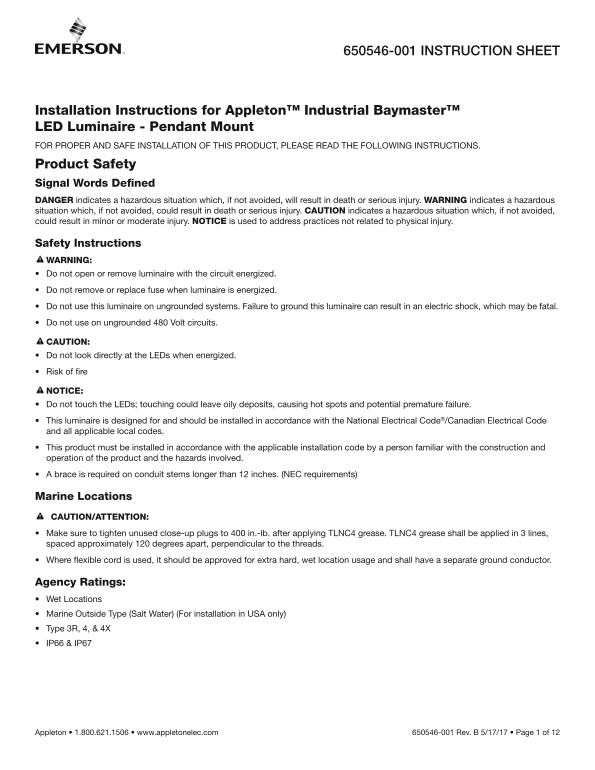

Page 1 Text Content
650546-001 INSTRUCTION SHEET
Installation Instructions for Appleton™ Industrial Baymaster™ LED Luminaire - Pendant Mount FOR PROPER AND SAFE INSTALLATION OF THIS PRODUCT, PLEASE READ THE FOLLOWING INSTRUCTIONS. Product Safety Signal Words Defined DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE is used to address practices not related to physical injury.
Safety Instructions WARNING: • Do not open or remove luminaire with the circuit energized. • Do not remove or replace fuse when luminaire is energized. • Do not use this luminaire on ungrounded systems. Failure to ground this luminaire can result in an electric shock, which may be fatal. • Do not use on ungrounded 480 Volt circuits.
CAUTION: • Do not look directly at the LEDs when energized. • Risk of fire
NOTICE: • Do not touch the LEDs; touching could leave oily deposits, causing hot spots and potential premature failure. • This luminaire is designed for and should be installed in accordance with the National Electrical Code®/Canadian Electrical Code and all applicable local codes. • This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved. • A brace is required on conduit stems longer than 12 inches. (NEC requirements)
Marine Locations CAUTION/ATTENTION: • Make sure to tighten unused close-up plugs to 400 in.-lb. after applying TLNC4 grease. TLNC4 grease shall be applied in 3 lines, spaced approximately 120 degrees apart, perpendicular to the threads. • Where flexible cord is used, it should be approved for extra hard, wet location usage and shall have a separate ground conductor.
Agency Ratings: • Wet Locations • Marine Outside Type (Salt Water) (For installation in USA only) • Type 3R, 4, & 4X • IP66 & IP67
Appleton • 1.800.621.1506 • www.appletonelec.com 650546-001 Rev. B 5/17/17 • Page 1 of 12
Page Summary Contents For EMERSON Instruction Sheet Industrial Baymaster LED Luminaire (Pendant Mount), 650546-001 Appleton
Manual Details
| Brand | Emerson |
|---|---|
| Pages | 12 |
| File Size | 3.67 MB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the primary safety requirement before energizing the luminaire?
The luminaire must be properly grounded. Use an Ohm meter to verify ground continuity if required by NEC or CEC.
Where should this luminaire be installed according to local codes?
It must be installed in accordance with the National Electrical Code /Canadian Electrical Code and all applicable local codes.
How do I correctly attach the luminaire to the pendant hood?
Align the arrows, push in direction of arrow, rotate counter-clockwise until it clicks, then tighten the locking set screw (37 in-lbs).
