EMERSON Instruction Sheet GA-2443, HSC100 Splice Connection Kit Without Enclosure
Summary
Ensure reliable connections with the HSC100 Splice Connection Kit, designed to join two self-regulating heater cables within a customer-supplied enclosure. This comprehensive manual provides step-by-step technical instructions for electricians and installation professionals, covering everything from cable preparation and standoff mounting to safe power termination. Facilitate compliant heating installations across all major cable types while maintaining adherence to necessary industry standards (including ATEX/IECEx requirements).
Page 1 Text Content

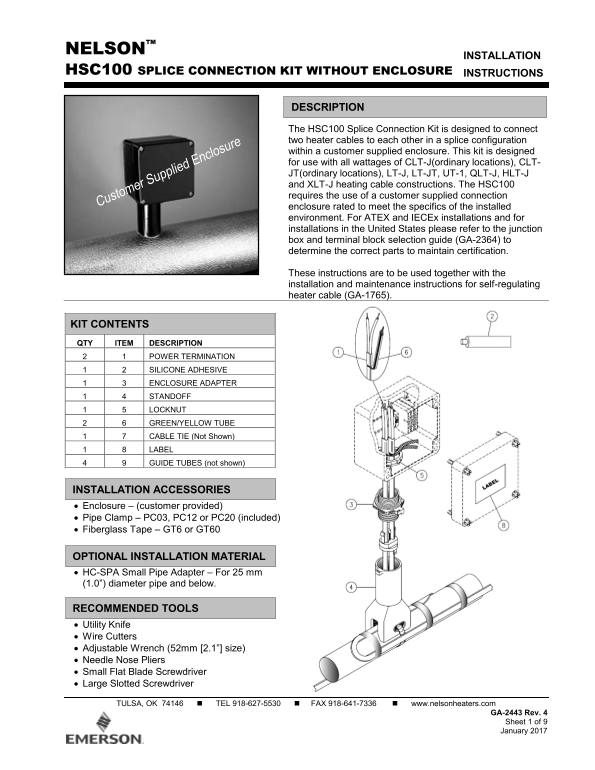

NELSON
INSTALLATION
HSC100 SPLICE CONNECTION KIT WITHOUT ENCLOSUREINSTRUCTIONS
DESCRIPTION The HSC100 Splice Connection Kit is designed to connect two heater cables to each other in a splice configuration within a customer supplied enclosure. This kit is designed for use with all wattages of CLT-J(ordinary locations), CLT- JT(ordinary locations), LT-J, LT-JT, UT-1, QLT-J, HLT-J and XLT-J heating cable constructions. The HSC100 requires the use of a customer supplied connection enclosure rated to meet the specifics of the installed environment. For ATEX and IECEx installations and for installations in the United States please refer to the junction box and terminal block selection guide (GA-2364) to determine the correct parts to maintain certification.
These instructions are to be used together with the installation and maintenance instructions for self-regulating heater cable (GA-1765).
KIT CONTENTS QTY ITEM DESCRIPTION 2 1 POWER TERMINATION 1 2 SILICONE ADHESIVE 1 3 ENCLOSURE ADAPTER 1 4 STANDOFF 1 5 LOCKNUT 2 6 GREEN/YELLOW TUBE 1 7 CABLE TIE (Not Shown) 1 8 LABEL 4 9 GUIDE TUBES (not shown)
INSTALLATION ACCESSORIES Enclosure – (customer provided) Pipe Clamp – PC03, PC12 or PC20 (included) Fiberglass Tape – GT6 or GT60
OPTIONAL INSTALLATION MATERIAL HC-SPA Small Pipe Adapter – For 25 mm (1.0”) diameter pipe and below.
RECOMMENDED TOOLS Utility Knife Wire Cutters Adjustable Wrench (52mm [2.1”] size) Needle Nose Pliers Small Flat Blade Screwdriver Large Slotted Screwdriver
TULSA, OK 74146 TEL 918-627-5530 FAX 918-641-7336 www.nelsonheaters.com
GA-2443 Rev. 4 Sheet 1 of 9 January 2017
