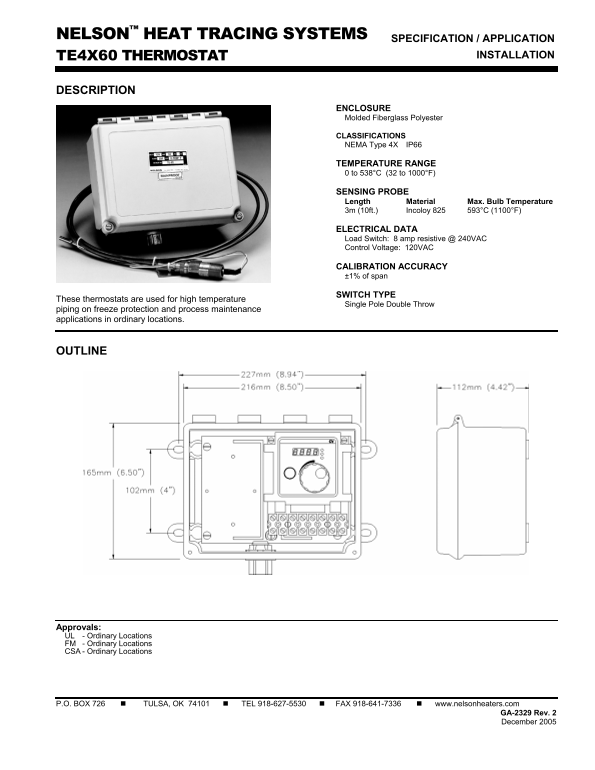

NELSON™ HEAT TRACING SYSTEMS SPECIFICATION / APPLICATION TE4X60 THERMOSTAT INSTALLATION
DESCRIPTION
ENCLOSURE Molded Fiberglass Polyester
CLASSIFICATIONS NEMA Type 4X IP66
TEMPERATURE RANGE 0 to 538°C (32 to 1000°F)
SENSING PROBE Length Material Max. Bulb Temperature 3m (10ft.) Incoloy 825 593°C (1100°F)
ELECTRICAL DATA Load Switch: 8 amp resistive @ 240VAC Control Voltage: 120VAC
CALIBRATION ACCURACY ±1% of span
SWITCH TYPE
These thermostats are used for high temperature
Single Pole Double Throw
piping on freeze protection and process maintenance applications in ordinary locations.
OUTLINE
Approvals: UL - Ordinary Locations FM - Ordinary Locations CSA - Ordinary Locations
