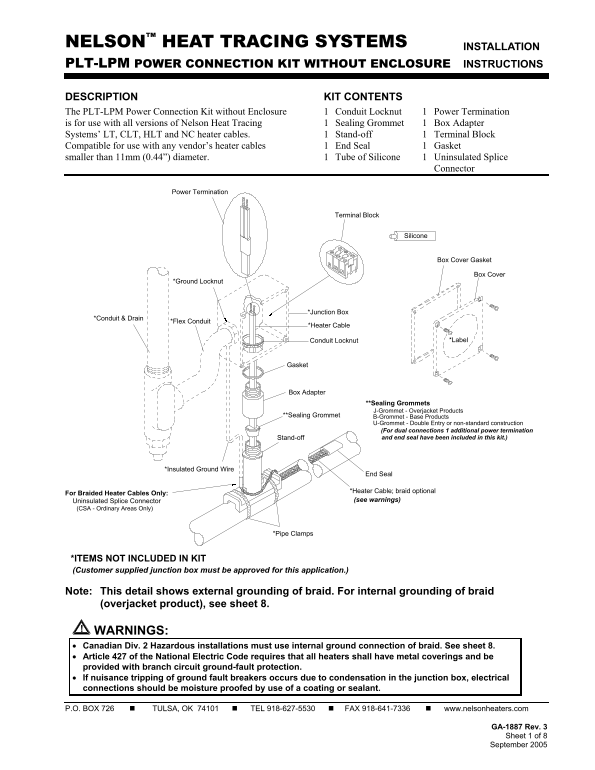

NELSON™ HEAT TRACING SYSTEMS INSTALLATION PLT-LPM POWER CONNECTION KIT WITHOUT ENCLOSURE INSTRUCTIONS
DESCRIPTION KIT CONTENTS The PLT-LPM Power Connection Kit without Enclosure Conduit Locknut 1 Power Termination
is for use with all versions of Nelson Heat Tracing Sealing Grommet 1 Box Adapter Systems’ LT, CLT, HLT and NC heater cables. Stand-off 1 Terminal Block Compatible for use with any vendor’s heater cables End Seal 1 Gasket smaller than 11mm (0.44”) diameter. Tube of Silicone 1 Uninsulated Splice
Connector
Power Termination
Terminal Block
Silicone
Box Cover Gasket
Box Cover
*Ground Locknut
*Junction Box
*Conduit & Drain
*Flex Conduit
*Heater Cable
Conduit Locknut *Label
Gasket
Box Adapter
**Sealing Grommets J-Grommet - Overjacket Products
**Sealing Grommet B-Grommet - Base Products
U-Grommet - Double Entry or non-standard construction (For dual connections 1 additional power termination Stand-off and end seal have been included in this kit.)
*Insulated Ground Wire
End Seal
*Heater Cable; braid optional
For Braided Heater Cables Only:
Uninsulated Splice Connector (see warnings)
(CSA - Ordinary Areas Only)
*Pipe Clamps
*ITEMS NOT INCLUDED IN KIT (Customer supplied junction box must be approved for this application.)
Note: This detail shows external grounding of braid. For internal grounding of braid (overjacket product), see sheet 8.
WARNINGS: • Canadian Div. 2 Hazardous installations must use internal ground connection of braid. See sheet 8. • Article 427 of the National Electric Code requires that all heaters shall have metal coverings and be provided with branch circuit ground-fault protection. • If nuisance tripping of ground fault breakers occurs due to condensation in the junction box, electrical connections should be moisture proofed by use of a coating or sealant.
P.O. BOX 726 TULSA, OK 74101 TEL 918-627-5530 FAX 918-641-7336 www.nelsonheaters.com
GA-1887 Rev. 3 Sheet 1 of 8 September 2005
