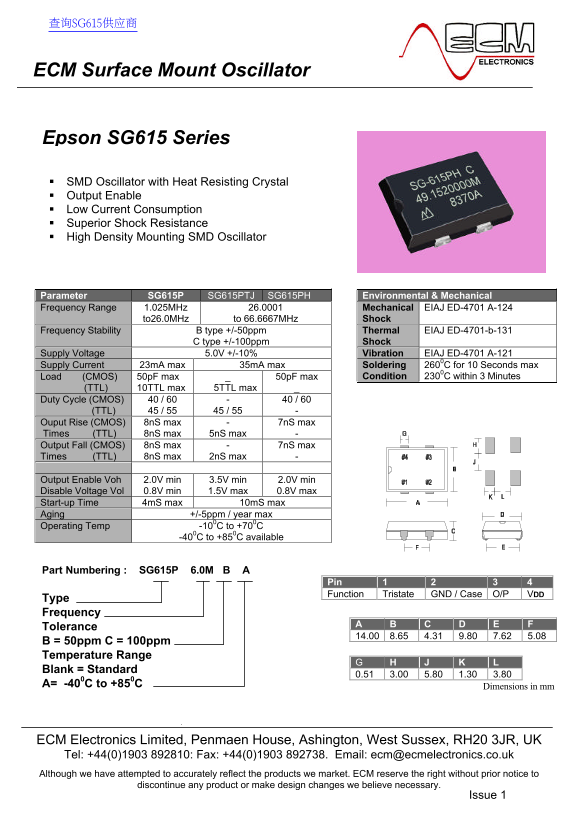

Page 1 Text Content
查询SG615供应商
ECM Surface Mount Oscillator
Epson SG615 Series
§ SMD Oscillator with Heat Resisting Crystal § Output Enable § Low Current Consumption § Superior Shock Resistance § High Density Mounting SMD Oscillator
Parameter SG615P SG615PTJ SG615PH Environmental & Mechanical Frequency Range 1.025MHz 26.0001 Mechanical EIAJ ED-4701 A-124
to26.0MHz to 66.6667MHz Shock
Frequency Stability B type +/-50ppm Thermal EIAJ ED-4701-b-131
C type +/-100ppm Shock
Supply Voltage 5.0V +/-10% Vibration EIAJ ED-4701 A-121 Supply Current 23m A max 35m A max Soldering 2600C for 10 Seconds max
Load (CMOS) 50p F max 50p F max Condition 2300C within 3 Minutes
(TTL) 10TTL max 5TTL max Duty Cycle (CMOS) 40 / 60 40 / 60 (TTL) 45 / 55 45 / 55 Ouput Rise (CMOS) 8n S max 7n S max Times (TTL) 8n S max 5n S max Output Fall (CMOS) 8n S max 7n S max Times (TTL) 8n S max 2n S max
Output Enable Voh 2.0V min 3.5V min 2.0V min Disable Voltage Vol 0.8V min 1.5V max 0.8V max Start-up Time 4m S max 10m S max Aging +/-5ppm / year max Operating Temp -100C to +700C
-400C to +850C available
Part Numbering : SG615P 6.0M B A
Pin Function Tristate GND / Case O/P VDD
Type Frequency Tolerance
B = 50ppm C = 100ppm Temperature Range Blank = Standard
A= -400C to +850C Dimensions in mm
ECM Electronics Limited, Penmaen House, Ashington, West Sussex, RH20 3JR, UK Tel: +44(0)1903 892810: Fax: +44(0)1903 892738. Email: [email protected] Although we have attempted to accurately reflect the products we market. ECM reserve the right without prior notice to
discontinue any product or make design changes we believe necessary.
Issue 1
