Dell Vostro 20-3052 Owner's Manual
Summary
This comprehensive owner's manual is essential for the Dell Vostro 20–3052 computer user who needs guidelines for safe maintenance and troubleshooting. It provides detailed safety protocols, including steps to avoid static discharge and properly disconnect power sources before working internally. The manual guides the owner through system shutdown procedures, explains indicator lights, reviews environmental specifications, and outlines authorized service practices to ensure your unit remains powered safely and efficiently.
Page 1 Text Content
Dell Vostro 20–3052 Owner's Manual
Regulatory Model: W15B Regulatory Type: W15B002
Page Summary Contents For Dell Vostro 20-3052 Owner's Manual
Page 1

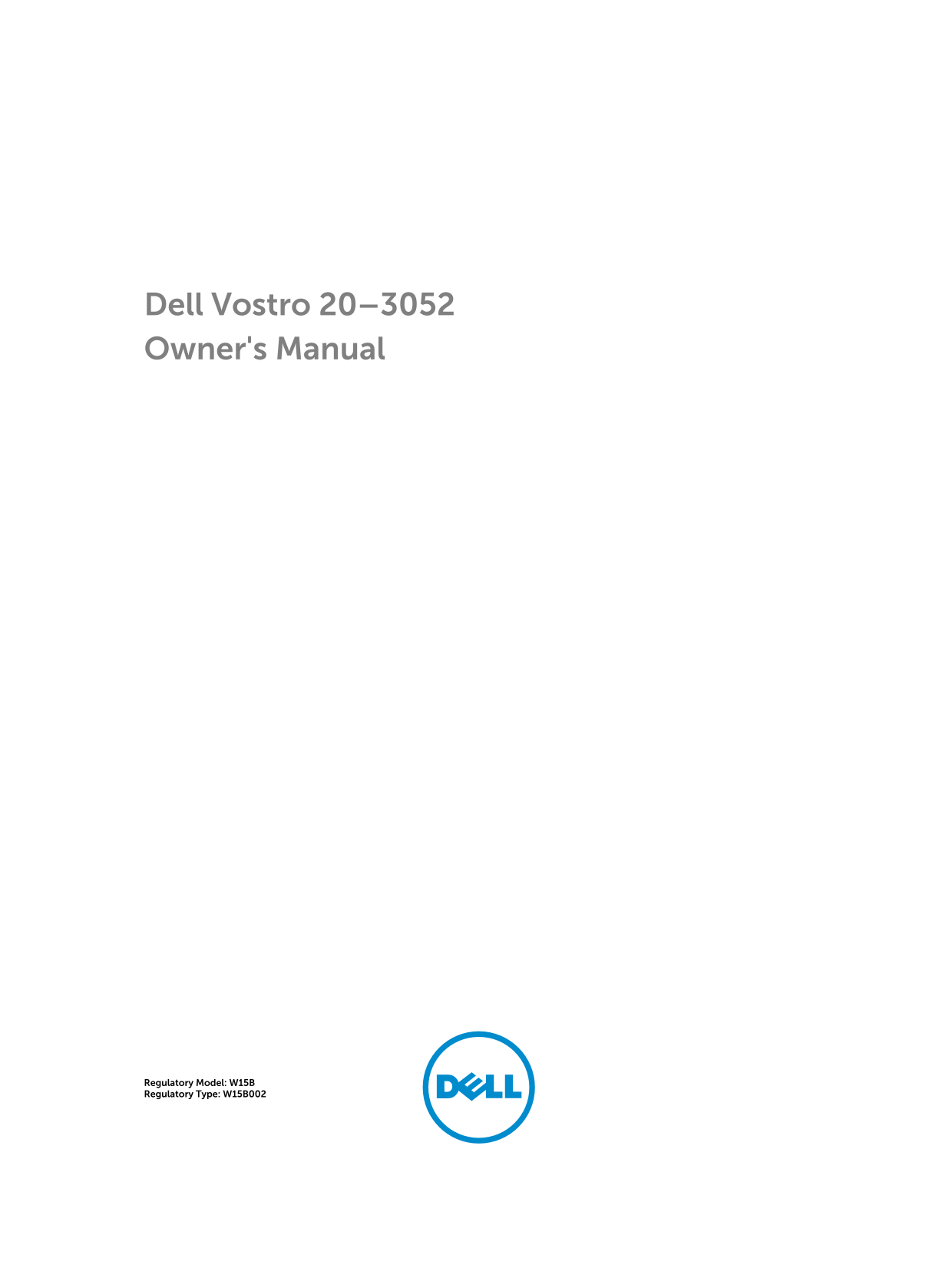

Dell Vostro 20–3052 Owner's Manual Regulatory Model: W15B Regulatory Type: W15B002
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates either potential damage to hardware or loss of ...
Page 3
Working on Your Computer Before Working Inside Your Computer Use the following safety guidelines to help protect your computer from potential damage and to help to ensure your personal safety. Unless ...
Page 4
CAUTION: To disconnect a network cable, first unplug the cable from your computer and then unplug the cable from the network device. 3. Disconnect all network cables from the computer. 4. Disconnect y...
Page 5
2. Click the arrow in the lower-right corner of the Start menu as shown below, and then click Shut Down.. 2. Ensure that the computer and all attached devices are turned off. If your computer and atta...
Page 6
Removing and Installing Components This section provides detailed information on how to remove or install the components from your computer. Removing the Stand 1. Follow the procedures in Before Worki...
Page 7
5. Remove the stand from the computer. Installing the Stand 1. Align the stand on the computer, and tighten the screws to secure the stand to the computer. 2. Place and press the hinge cover on the co...
Page 8
3. Perform the following steps as shown in the illustration: a. Press on the tab indicated using a scribe [1]. b. Slide the optical-disk drive (ODD) out of the computer [2]. 4. Remove the screws that ...
Page 9
Removing the Back Cover 1. Follow the procedures in Before Working Inside Your Computer. 2. Remove: a. stand b. optical-disk drive 3. Perform the following steps as shown in the illustration: a. Pry t...
Page 10
4. Remove the hard-drive from the computer. 5. Remove the screws that secure the hard-drive to the bracket, lift the hard-drive from bracket [1,2]
Page 11
Installing the Hard Drive 1. Place the hard-drive in the bracket. 2. Tighten the screws that secure the hard-drive to the bracket. 3. Slide the hard-drive into the screw holes of the display bracket. ...
Page 12
Installing the Power-Switch Board 1. Connect the power-switch cable to the power-switch board. Insert the power-switch board into its slot on the computer. 2. Install: a. back cover b. optical-disk dr...
Page 13
Installing the System-Board Shield 1. Align the system-board shield on the system board. Tighten the screws to secure it to the computer. 2. Install: a. back cover b. optical-disk drive c. stand 3. Fo...
Page 14
Installing the Memory NOTE: Please use DIMM 2 slot if there is only one memory module available. 1. Align the notch on the memory-card with the tab on the system-board connector. 2. Press down on the ...
Page 15
Installing the System Fan 1. Align the system fan with the heatsink such that pins of the bracket are in line with the holes of the system fan and tighten the screws to secure it to the computer. 2. C...
Page 16
4. Remove the heatsink assembly from the system board. Installing the Heatsink Assembly 1. Install the heatsink assembly and tighten the screws to secure it to the system board. 2. Install: a. system-...
Page 17
c. back cover d. system-board shield 3. Press the release latch away from the battery and remove the coin-cell battery from the computer [1,2]. Installing the Coin-Cell Battery 1. Insert the coin-cell...
Page 18
Installing the WLAN Card 1. Insert the WLAN card into its slot. 2. Connect the two connectors (black cable to the black triangle and white cable to the white triangle). 3. Place the WLAN holder and ti...
Page 19
4. Remove the speaker from the computer. Installing the Speakers 1. Align the speakers on the computer. 2. Align the speaker cables through their tabs on the computer and connect the speaker cable to ...
Page 20
System Board Layout The following image displays the system board layout of the computer. 1. Processor 2. WLAN connector 3. Reserved 4. Webcam connector 5. TXE header 6. Password header 7. CMOS clear ...
Page 21
Removing the System Board 1. Follow the procedures in Before Working Inside Your Computer. 2. Remove: a. stand b. optical-disk drive c. back cover d. system-board shield e. heatsink f. WLAN card g. me...
Page 22
Installing the System Board 1. Align the system board on the computer. 2. Tighten the screws to secure the system board to the computer. 3. Connect the following cables to the system board: a. camera ...
Page 23
c. back cover d. system-board shield e. hard drive f. speakers g. heatsink h. system fan i. memory j. WLAN card k. system board 3. Perform the following steps as shown in the illustration: a. Disconne...
Page 24
5. Remove the screws that secure the display bracket to the computer. Lift the display bracket. 6. Pry the edges of the display assembly from the computer. 7. Remove the display assembly from the comp...
Page 25
Installing the Display Assembly 1. Align and press the display bracket on the computer. 2. Tighten the screws to secure the display bracket to the computer. 3. Align the display assembly cable through...
Page 26
System Setup System Setup enables you to manage your computer hardware and specify BIOS‐level options. From the System Setup, you can: Change the NVRAM settings after you add or remove hardware View t...
Page 27
Table 1. Navigation Keys Keys Navigation Up arrow Moves to the previous field. Down arrow Moves to the next field. <Enter> Allows you to select a value in the selected field (if applicable) or f...
Page 28
L2 Cache Displays the processor L2 cache size. Fixed HDD Displays the HDD ID and capacity. SATA ODD Displays the type of AC Adapter Type Displays the power adapter type. System Memory Displays the mem...
Page 29
Internal WLAN Allows you to Default: Enabled enable or disable the Internal WLAN Media Card Reader Allows you to Default: Enabled enable or disable the Media Card Reader Optical Device Allows you to D...
Page 30
Auto Power On Date Allows you to Default: Disabled designate a specific date when the computer will turn on automatically Auto Power On Time Allows you to Default: Disabled designate a specific time w...
Page 31
Set PK from Files Allows you to Set PK from Files from Factory Default. Key Exchange Key Database (KEK) Delete the KEY Allows you to Delete the KEK. Set KEK from Files Allows you to Set KEY from Files...
Page 32
Boot Option 2 Allows you to select the 2nd boot device preference Boot Option 3 Allows you to select the 3rd boot device preference Table 6. Exit tab Save Changes and Reset Allows you to Save Changes ...
Page 33
12. Click Run to install the updated BIOS settings on your computer. Follow the instructions on the screen. System and Setup Password You can create a system password and a setup password to secure yo...
Page 34
Deleting or Changing an Existing System and/or Setup Password Ensure that the Password Status is Unlocked (in the System Setup) before attempting to delete or change the existing System and/or Setup p...
Page 35
Technical Specifications NOTE: Offerings may vary by region. The following specifications are only those required by law to ship with your computer. For more information about the configuration of you...
Page 36
Feature Specification Volume controls Volume up/down buttons, program menus, and keyboard media-control keys Table 11. Communications Feature Specification Network adapter Intel 10/100/1000 Mbps Ether...
Page 37
Feature Specification Height 26.00 mm (1.02 inches) 32.00 mm (1.3 inches) Width 40.00 mm (1.57 inches) 52.00 mm (2.0 inches) Depth 94.00 mm (3.70 inches) 128.00 mm (5.0 inches) Coin-cell battery 3 V C...
Page 38
Feature Specification Off (no light) — the computer is not detecting a physical connection to the network. Network activity light on integrated Yellow light — A blinking yellow light indicates that ne...
Page 39
Contacting Dell Contacting Dell NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog. Dell pro...
