Page 1

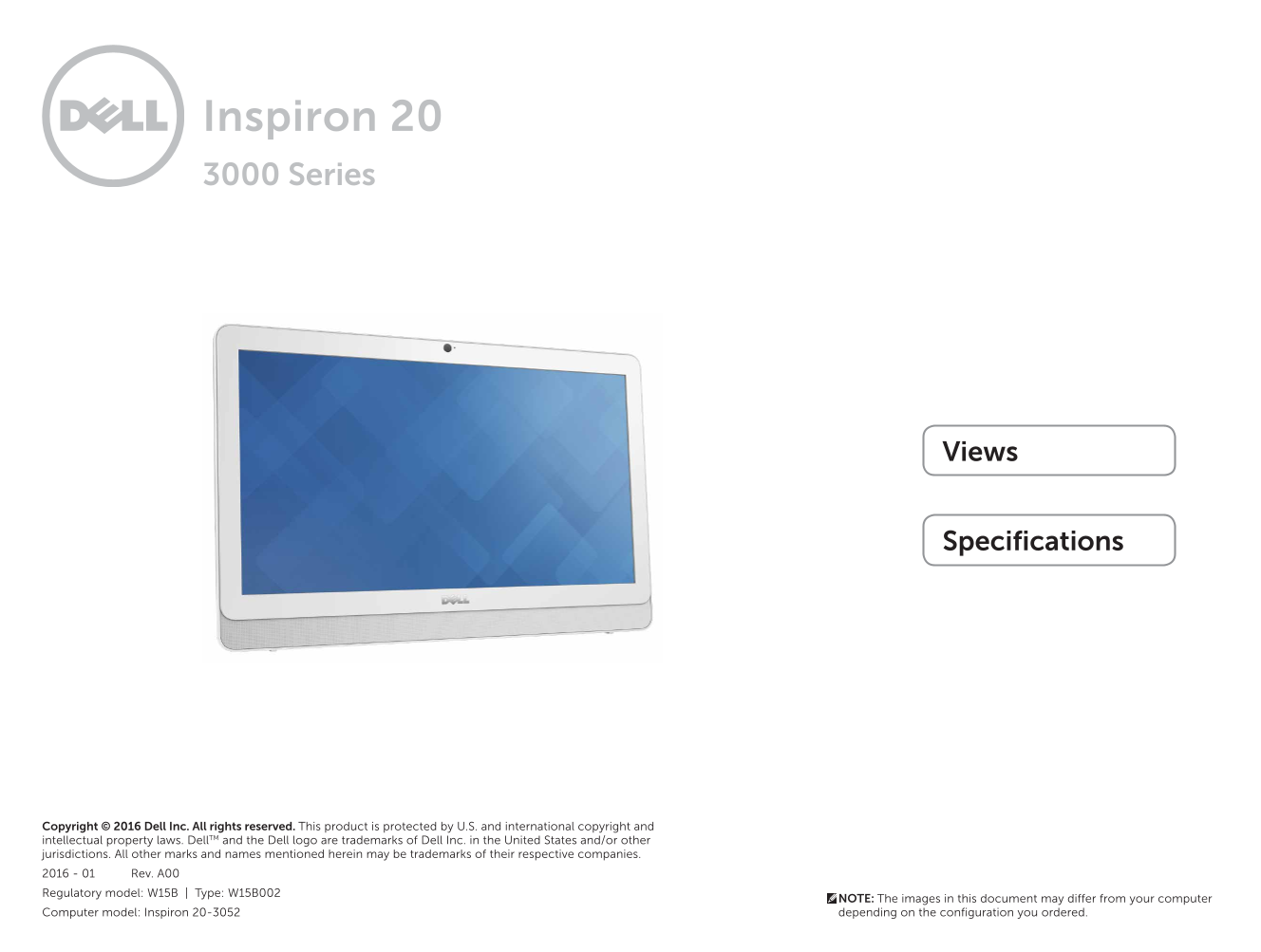

Inspiron 20 3000 Series Views Specifications Copyright © 2016 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell TM and t...
Page 2
Views Specifications Microphone (for touch-screen model) Camera Allows you to video chat, capture photos, and record Provides digital sound input for audio recording, voice videos. calls, and so on. C...
Page 3
Views Specifications Media-card reader Headset port Reads from and writes to media cards. Connect a headphone, a microphone, or a headset (headphone and microphone combo). USB 3.0 ports (2) Connect pe...
Page 4
Views Specifications Display-brightness control buttons Power button Press to increase or decrease the display brightness. Press to turn on the computer if it is turned off, in sleep state, or in hibe...
Page 5
Views Specifications Audio-out port Network port Connect audio‑output devices such as speakers and Connect an Ethernet (RJ45) cable from a router or a amplifiers. broadband modem for network or intern...
Page 6
Views Specifications Easel stand
Page 7
Specifications Views Dimensions and weight Height 317.64 mm (12.51 in) Width 480.52 mm (18.92 in) Depth 33.12 mm (1.30 in) Weight without stand (maximum) 4.47 kg (9.85 lb) NOTE: The weight of your com...
Page 8
Specifications Views System information Computer model Inspiron 20‑3052 Processor Intel Pentium Quad Core Chipset Integrated in processor Dimensions and System Ports and Memory Communications Video Au...
Page 9
Specifications Views Memory Slots One SODIMM slot Type DDR3L Speed Up to 1600 MHz Configurations supported 4 GB and 8 GB Dimensions and System Ports and Memory Communications Video Audio Storage weigh...
Page 10
Specifications Views Ports and connectors External: Network One RJ45 port USB • Two USB 2.0 ports • Two USB 3.0 ports Audio/Video • One headset port • One audio line‑out port Internal: NGFF card One N...
Page 11
Specifications Views Communications Ethernet 10/100/1000 Mbps Ethernet controller integrated on system board Wireless • Wi‑Fi 802.11ac • Wi‑Fi 802.11b/g/n • Bluetooth 4.0 Dimensions and System Ports a...
Page 12
Specifications Views Video Controller Integrated in processor Memory Shared system memory Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors Media-...
Page 13
Specifications Views Audio Controller Realtek ALC3661 Waves Maxx Audio Speakers Two Speaker output: Average 2 W Peak 2.5 W Microphone Digital‑array microphones Volume controls Program menus Dimensions...
Page 14
Specifications Views Storage Interface SATA 6 Gbps for hard drive Hard drive One 2.5‑inch drive Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors ...
Page 15
Specifications Views Media-card reader Type One 4‑in‑1 slot Cards supported • SD card • Multi Media Card (MMC) • SD Extended Capacity (SDXC) card • SD High Capacity (SDHC) card Dimensions and System P...
Page 16
Specifications Views Display Type 19.5‑inch HD+ touch screen Resolution (maximum) 1600 x 900 Dimensions: Height 263 mm (10.35 in) Width 452 mm (17.80 in) Diagonal 495.30 mm (19.50 in) Refresh rate 60 ...
Page 17
Specifications Views Camera Resolution: Still image 0.92 megapixels Video 1280 x 720 at 30 fps (maximum) Diagonal viewing angle 74 degrees Dimensions and System Ports and Memory Communications Video A...
Page 18
Specifications Views Stand Height 174.80 mm (6.88 in) Width 120 mm (4.72 in) Depth 22.48 mm (0.89 in) Weight 0.56 kg (1.23 lb) Dimensions and System Ports and Memory Communications Video Audio Storage...
Page 19
Specifications Views Battery Type 4‑cell prismatic 58 WHr Dimensions: Height 14.85 mm (0.58 in) Width 105.25 mm (4.14 in) Depth 123.25 mm (4.85 in) Weight (maximum) 0.32 kg (0.71 lb) Voltage 14.8 VDC ...
Page 20
Specifications Views Power adapter Type 45 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current (maximum) 1.30 A Output current (maximum) 2.31 A Rated output voltage 19.50 VDC Tem...
Page 21
Specifications Views Computer environment Airborne contaminant level G1 as defined by ISA‑S71.04‑1985 Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) –40°C to 65°C (–40°F to 149°F) Rela...
