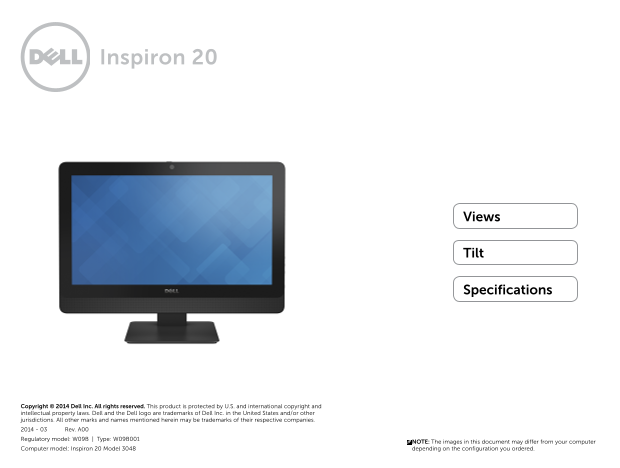

Page 1
Inspiron 20 Views Specifications Copyright © 2014 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell and the Dell logo ar...
Page 2
Views Specifications Microphone (touchscreen Camera-cover latch computer only) Covers your computer camera lens. Slide the latch to the Provides high‑quality digital sound input for audio right‑side o...
Page 3
Views Specifications Media-card reader Headset port Reads from and writes to media cards. Connect a headphone, a microphone, or a headphone and microphone combo (headset). USB 3.0 ports (2) Connect pe...
Page 4
Views Specifications Optical drive Hard-drive activity light Reads from and writes to CDs and DVDs. Turns on when the computer reads from or writes to the hard drive. Display-brightness increase butto...
Page 5
Views Specifications Power-adapter port Audio-out port Connect a power adapter to provide power to your Connect audio‑output devices such as speakers, computer. amplifiers, and so on. Network port USB...
Page 7
Specifications Views Dimensions and Weight Height 385.58 mm (15.18 in) Width 489.92 mm (19.29 in) Depth 204.97 mm (8.07 in) Weight (maximum): Touchscreen Non-touchscreen Without stand 5.22 kg (11.51 l...
Page 8
Specifications Views System Information Computer model Inspiron 20 Model 3048 Processor 4th Generation Intel Core i3 4th Generation Intel Pentium Dual Core 4th Generation Intel Celeron Dual Core Syste...
Page 9
Specifications Views Memory Slots Two SODIMM slots Type Dual‑channel DDR3 Speed Up to 1600 MHz Configurations supported 2 GB, 4 GB, 8 GB, and 16 GB Dimensions and System Ports and Memory Communication...
Page 10
Specifications Views Ports and Connectors External: Network One RJ45 port USB Four USB 2.0 ports Two USB 3.0 ports Audio/Video One headset port One audio‑out port One HDMI‑out port Internal: M.2 card ...
Page 11
Specifications Views Communications Ethernet 10/100/1000 Mbps Ethernet controller integrated on system board Wireless Wi‑Fi 802.11 n Wi‑Fi 802.11 ac Bluetooth 4.0 Dimensions and System Ports and Memor...
Page 12
Specifications Views Video Controller: Integrated Intel HD Graphics 4400 for Intel Core i3 Intel HD Graphics for Intel Pentium Dual Core/Intel Celeron Dual Core Discrete AMD Radeon R5 A240 Memory: Int...
Page 13
Specifications Views Audio Controller Realtek ALC3661 with Waves Maxx Audio Speakers Two Speaker output: Average 2 W Peak 2.5 W Microphone Digital microphone in camera assembly Volume controls Program...
Page 14
Specifications Views Storage Interface SATA 3 Gbps for optical drive SATA 6 Gbps for hard drive Hard drive One 2.5‑in drive Optical drive One 9.5‑mm DVD+/‑RW drive Dimensions and System Ports and Memo...
Page 15
Specifications Views Media-Card Reader Type One 4‑in‑1 slot Cards supported SD card Multi Media Card (MMC) SD Extended Capacity (SDXC) card SD High Capacity (SDHC) card Dimensions and System Ports and...
Page 16
Specifications Views Display Type 19.5‑in HD+ touchscreen 19.5‑in HD+ non‑touchscreen Resolution (maximum) 1600 x 900 Dimensions: Height 236.34 mm (9.30 in) Width 433.92 mm (17.08 in) Diagonal 495.30 ...
Page 17
Specifications Views Camera Resolution: Still image 0.92 megapixels Video 1280 x 720 at 30 fps (maximum) Diagonal viewing angle 74 degrees Dimensions and System Ports and Memory Communications Video A...
Page 18
Specifications Views Stand Height 183.18 mm (7.21 in) Width 204.97 mm (8.07 in) Depth 204.97 mm (8.07 in) Dimensions and System Ports and Memory Communications Video Audio Storage Weight Information C...
Page 19
Specifications Views Power Adapter Type 130 W 150 W (only for AMD Radeon R5 A240) Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current (maximum) 2.50 A Output current: 130 W 6.70 A ...
Page 20
Specifications Views Computer Environment Airborne contaminant level G1 as defined by ISA‑S71.04‑1985 Operating Storage Temperature range 0°C to 40°C (32°F to 104°F) –40°C to 65°C (–40°F to 149°F) Rel...
