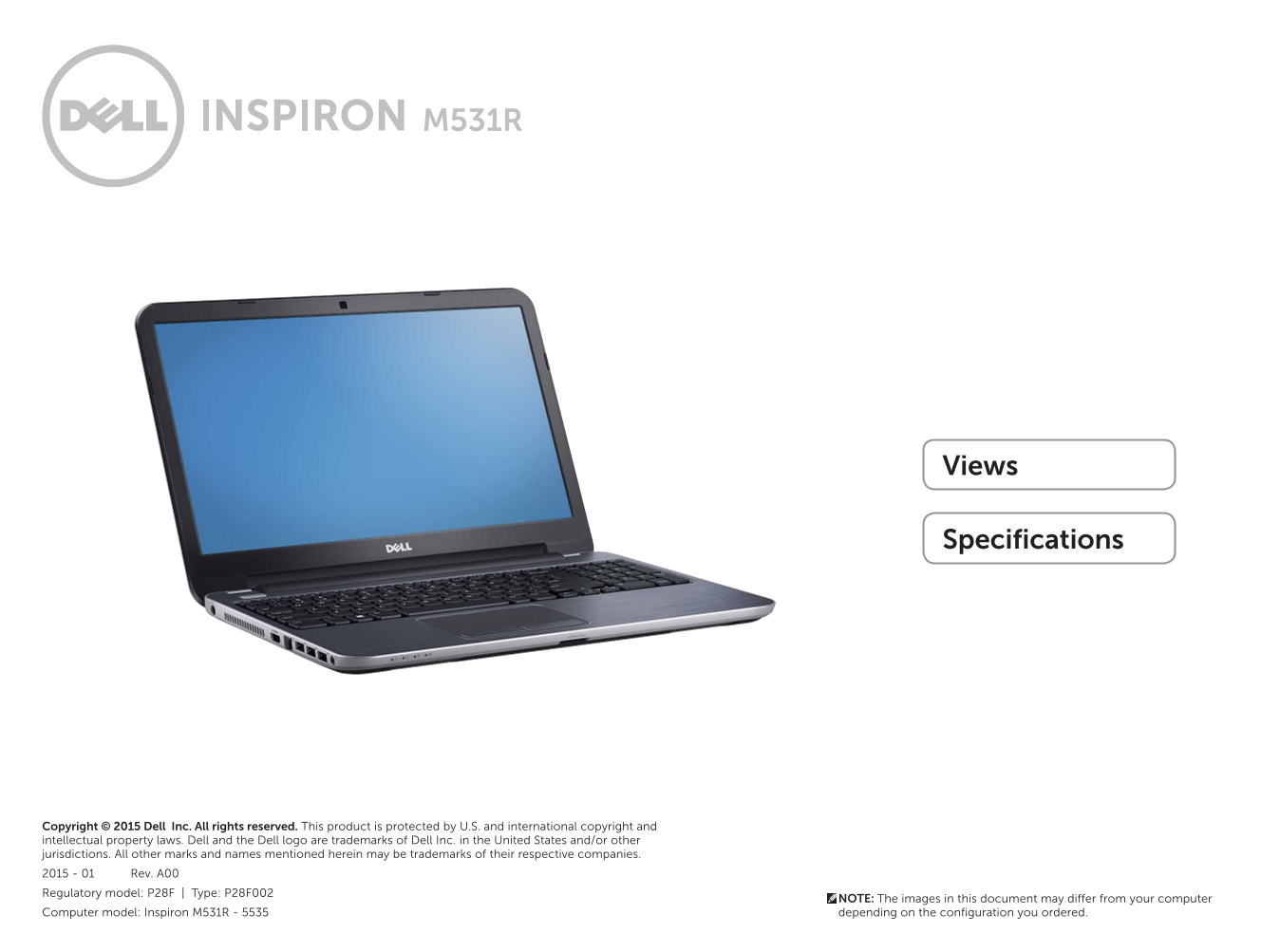

Page 1
Views Specifications Copyright © 2015 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell and the Dell logo are trademarks...
Page 2
Views Specifications Power‑status light Battery‑status light Indicates the power state of the computer. Indicates the battery state of the computer. Solid yellow light — Battery charge is low or criti...
Page 3
Views Specifications Power‑adapter port USB 3.0 ports (2) Connect a power adapter to provide power to your Connect peripherals such as storage devices, printers, computer and charge the battery. and s...
Page 4
Views Specifications USB 2.0 port (supports Windows debugging) Optical drive Connect peripherals such as storage devices, printers, Reads from and writes to CDs , DVDs and Blu‑ray discs. and so on. Pr...
Page 5
Views Specifications Power button Touchpad Press to turn on the computer if it is turned off or in Move your finger on the touchpad to move the mouse Sleep state. pointer. Tap to left‑click. Press to ...
Page 6
Views Specifications Display Digital microphone Camera Provides high‑quality digital sound input for audio Allows you to video chat, capture photos, and record recording, voice calls, and so on. video...
Page 7
Specifications Views Dimensions and Weight Height 1 in (25.40 mm) Width 14.80 in (376 mm) Depth 10.20 in (259 mm) Weight with 6‑cell battery (maximum) 5.73 lbs (2.60 kg) NOTE: The weight of your lapto...
Page 8
Specifications Views System Information Computer model Inspiron M531R Processor AMD A4‑5145M APU AMD A6‑5345M APU AMD Quad Core A8‑5545M APU L1 cache Up to 192 KB L2 cache Up to 4 MB Chipset AMD A76M ...
Page 9
Specifications Views Memory Connectors Two DDR3/DDR3L SODIMM connectors Capacity 2 GB and 4 GB Type 1600 MHz dual‑channel DDR3 configuration (operating at 1333 MHz) Configurations supported 2 GB, 4 GB...
Page 10
Specifications Views Ports and Connectors External: Network One RJ45 port USB Two USB 3.0 ports One USB 2.0 port One USB 2.0 port with Windows debugging HDMI One HDMI port Audio One headphone and micr...
Page 11
Specifications Views Communications Ethernet 10/100 Mbps Ethernet controller integrated on system board Wireless Wi‑Fi 802.11 b/g/n Bluetooth 4.0 Dimensions and System Ports and Memory Communications ...
Page 12
Specifications Views Video Controller: Integrated AMD Radeon HD 8310G AMD Radeon HD 8410G AMD Radeon HD 8510G Discrete AMD Radeon HD 8670M (1 GB DDR3) AMD Radeon HD 8410G+8670M (1 GB DDR3 or 2 GB DDR3...
Page 13
Specifications Views Audio Controller ALC3223 Speakers Two Speaker output: Average 2 watt Peak 2 watt Microphone Digital microphone in the camera assembly Volume controls Program menus and keyboard me...
Page 14
Specifications Views Storage Interface SATA 1.5 Gbps SATA 3 Gbps SATA 6 Gbps Hard drives One 7 mm/9.5 mm SATA drive Optical drives One 9.5 mm SATA drive Drives supported DVD+/‑RW Dimensions and System...
Page 15
Specifications Views Media‑card reader Type One 8‑in‑1 slot Cards supported Secure Digital (SD) memory card SD High‑Capacity (SDHC) card Secure‑Digital Extended Capacity (SDXC) card with Ultra High Sp...
Page 16
Specifications Views Display Type 15.6‑inch HD True‑Life Resolution (maximum) HD — 1366 x 768 Dimensions: Height 8.83 in (224.30 mm) Width 14.17 in (360 mm) Diagonal 15.60 in (396.24 mm) Refresh rate ...
Page 17
Specifications Views Keyboard Type Chiclet keyboard Shortcut keys Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary funct...
Page 18
Specifications Views Camera Resolution: Still image 0.92 megapixel Video 1280 x 720 (HD) at 30 fps (maximum) Diagonal viewing angle 66 degrees Dimensions and System Ports and Memory Communications Vid...
Page 19
Specifications Views Touchpad Resolution: Horizontal 1261 dpi Vertical 1810 dpi Dimensions: Width 2.13 in (54 mm) Height 3.86 in (98 mm) Dimensions and System Ports and Memory Communications Video Aud...
Page 20
Specifications Views Battery Type 4‑cell “smart” lithium ion (40 WHr) 6‑cell “smart” lithium ion (65 WHr) Dimensions: 4‑cell 6‑cell Height 0.79 in (20 mm) 1.08 in (27.4 mm) Width 10.72 in (272.40 mm) ...
Page 21
Specifications Views Power Adapter Type 65 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current 1.50A/1.60A/1.70A/2.50A Output current 3.34 A/4.62 A Rated output voltage 19.50 VDC...
Page 22
Specifications Views Computer Environment Airborne contaminant level G1 as defined by ISA‑S71.04‑1985 Operating Storage Temperature range 0 °C to 40 °C (32 °F to 104 °F) –40 °C to 70 °C (–40 °F to 158...
