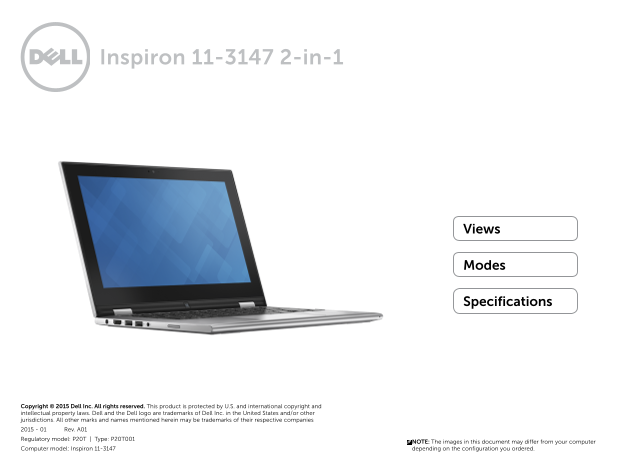

Page 1
Inspiron 11-3147 2-in-1 Views Modes Specifications Copyright © 2015 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell an...
Page 2
Views Specifications Power/Battery-status light Indicates the power state and battery state of the computer. Solid white — Power adapter is connected to the computer and the battery is being charged. ...
Page 3
Views Specifications Power-adapter port NOTE: Certain USB devices may not charge when the computer is turned off or in the Sleep state. In such Connect a power adapter to provide power to your cases, ...
Page 4
Views Specifications Power button USB 2.0 port Press to turn on the computer if it is turned off or in Connect peripherals such as storage devices, printers, Sleep state. and so on. Provides data tran...
Page 5
Views Specifications Left-click area Right-click area Press to left‑click. Press to right‑click. Touch pad Move your finger on the touch pad to move the mouse pointer. Tap to left‑click. Display
Page 6
Views Specifications Display Left microphone Camera-status light Provides high‑quality digital sound input for audio Turns on when the camera is in use. recording, voice calls, and so on. Right microp...
Page 7
Modes Notebook Tablet Tablet Stand Tent
Page 8
Specifications Views Dimensions and weight Height 19 mm (0.74 in) Width 300 mm (11.81 in) Depth 201 mm (7.91 in) Weight (maximum) 1.41 kg (3.10 lb) NOTE: The weight of your computer varies depending o...
Page 9
Specifications Views System information Computer model Inspiron 11‑3147 Processor Intel Pentium Quad Core Intel Celeron Dual Core Chipset Integrated in the processor Dimensions and System Ports and Me...
Page 10
Specifications Views Memory Slot One SODIMM slot Type DDR3L Speed 1333 MHz Configurations supported 4 GB Dimensions and System Ports and Memory Communications Video Audio Storage weight information co...
Page 11
Specifications Views Ports and connectors External: USB Two USB 2.0 ports One USB 3.0 port Audio/Video One HDMI port One headphone and microphone combo (headset) port Internal: M.2 One M.2 card slot f...
Page 12
Specifications Views Communications Wireless Wi‑Fi 802.11b/g/n Wi‑Fi 802.11ac Bluetooth 4.0 Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors Medi...
Page 13
Specifications Views Video Controller Intel HD Graphics Memory Shared system memory Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors Media-card C...
Page 14
Specifications Views Audio Controller Realtek ALC3234 with Waves Maxx Audio Speakers Two Speaker output: Average 2 W Peak 2.5 W Microphone Digital‑array microphones in camera assembly Volume controls ...
Page 15
Specifications Views Storage Interface SATA 3 Gbps Hard drive One 2.5‑inch drive Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors Media-card Comp...
Page 16
Specifications Views Media-card reader Type One 2‑in‑1 slot Cards supported SD card Multi Media Card (MMC) Dimensions and System Ports and Memory Communications Video Audio Storage weight information ...
Page 17
Specifications Views Display Type 11.6‑inch HD WLED touch Resolution (maximum) 1366 x 768 Dimensions: Height 143.81 mm (5.66 in) Width 256.12 mm (10.08 in) Diagonal 294.64 mm (11.60 in) Refresh rate 6...
Page 18
Specifications Views Keyboard Type Chiclet keyboard Shortcut keys Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary funct...
Page 19
Specifications Views Camera Resolution: Still image 0.92 megapixel Video 1280 x 720 (HD) at 30 fps (maximum) Diagonal viewing angle 74 degrees Dimensions and System Ports and Memory Communications Vid...
Page 20
Specifications Views Touch pad Resolution: Horizontal 1207 dpi Vertical 1702 dpi Dimensions: Width 102.40 mm (4.03 in) Height 77.40 mm (3.04 in) Dimensions and System Ports and Memory Communications V...
Page 21
Specifications Views Battery Type 3 cell Dimensions: Width 77.20 mm (3.04 in) Depth 254 mm (10 in) Height 6.80 mm (0.27 in) Weight (maximum) 0.25 kg (0.55 lb) Voltage 11.4 VDC Charging time when the c...
Page 22
Specifications Views Power adapter Type 65 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current 1.60 A Output current 3.34 A Rated output voltage 19.50 VDC Temperature range: Oper...
Page 23
Specifications Views Computer environment Airborne contaminant level G1 as defined by ISA‑S71.04‑1985 Operating Storage Temperature range 0°C to 40°C (32°F to 104°F) –40°C to 65°C (–40°F to 149°F) Rel...
