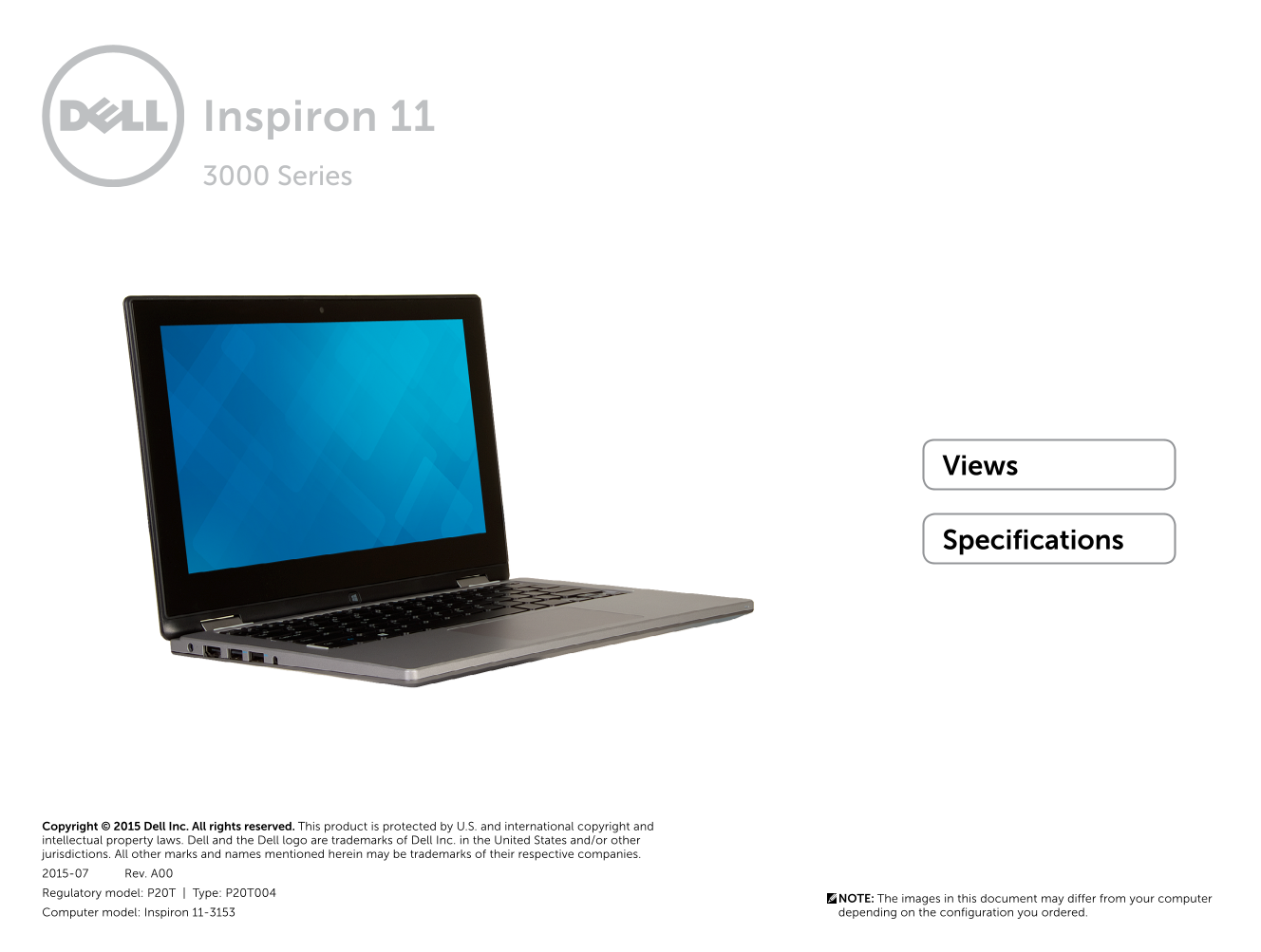

Page 1
Inspiron 11 3000 Series Views Specifications Copyright © 2015 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell and the ...
Page 2
Views Specifications Power/Battery status light Indicates the power state and battery state of the computer. Solid white — Power adapter is connected to the computer and the battery is being charged. ...
Page 3
Views Specifications Power-adapter port NOTE: Certain USB devices may not charge when the computer is turned off or in the Sleep state. In Connect a power adapter to provide power to your such cases, ...
Page 4
Views Specifications Power button Volume-control buttons (2) Press to turn on the computer if it is turned off or in Press to increase or decrease the volume.. Sleep state. USB 2.0 port Press to put t...
Page 5
Views Specifications Left-click area Right-click area Press to left click. Press to right click. Touch pad Move your finger on the touch pad to move the mouse pointer. Tap to left click. Display Modes
Page 6
Views Specifications Display Left microphone Camera-status light Provides high-quality digital sound input for audio Turns on when the camera is in use. recording, voice calls, and so on. Right microp...
Page 7
Views Specifications Modes Notebook Tablet Stand Tent Display Modes
Page 8
Specifications Views Dimensions and weight Height 19 mm (0.75 in) Width 300 mm (11.81 in) Depth 201 mm (7.91 in) Weight 1.41 kg (3.11 lb) NOTE: The weight of your laptop varies depending on the config...
Page 9
Specifications Views System information Computer model Inspiron 11-3153 Processor 6th Generation Intel Core i3 Processor 6th Generation Intel Core i5 Processor Chipset Integrated in processor Dimensio...
Page 10
Specifications Views Memory Slot One SODIMM slot Type DDR3L Speed 1600 MHz Configurations supported: 4 GB and 8 GB Dimensions and System Ports and Memory Communications Video Audio Storage weight info...
Page 11
Specifications Views Ports and connectors External: USB One USB 2.0 port One USB 3.0 port One USB 3.0 port with Power Share Audio/video One HDMI port One headphone and microphone combo (headset) port ...
Page 12
Specifications Views Communications Wireless Wi-Fi 802.11ac Bluetooth 4.0 Intel Wi Di (optional) Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors...
Page 13
Specifications Views Video Controller Intel HD Graphics Memory Shared system memory Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors Media-card C...
Page 14
Specifications Views Audio Controller Conexant CX6008 with Waves Maxx Audio Speakers Two Speaker output: Average 2 W Peak 2.5 W Microphone Digital-array microphones in camera assembly Volume controls ...
Page 15
Specifications Views Storage Interface SATA 6 Gbps Hard drive One 2.5-inch drive One 2.5-inch solid-state drive Dimensions and System Ports and Memory Communications Video Audio Storage weight informa...
Page 16
Specifications Views Media-card reader Type One SD card slot Dimensions and System Ports and Memory Communications Video Audio Storage weight information connectors Media-card Computer Display Keyboar...
Page 17
Specifications Views Display Type 11.6-inch HD WLED touch Resolution (maximum) 1366 x 768 Dimensions: Height 168.50 mm (6.63 in) Width 256.13 mm (10.08 in) Diagonal 294.64 mm (11.60 in) Refresh rate 6...
Page 18
Specifications Views Keyboard Type Chiclet keyboard Shortcut keys Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary funct...
Page 19
Keyboard Shortcut keys Mute audio Turn off/on wireless Decrease volume Pause/Break Increase volume Shortcut/Secondary menu (Fn + Right Ctrl) Play/Pause Sleep Open Search charm Scroll lock Open Share c...
Page 20
Specifications Views Camera Resolution: Still image 0.72 megapixel Video 1280 x 720 (HD) at 30 fps (maximum) Diagonal viewing angle 74 degrees Dimensions and System Ports and Memory Communications Vid...
Page 21
Specifications Views Touch pad Resolution: Horizontal 1207 dpi Vertical 1702 dpi Dimensions: Width 105.20 mm (4.14 in) Height 60.20 mm (2.37 in) Dimensions and System Ports and Memory Communications V...
Page 22
Specifications Views Battery Type 3 cell Dimensions: Width 254 mm (10 in) Depth 77.20 mm (3.04 in) Height 6.80 mm (0.27 in) Weight (maximum) 0.25 kg (0.55 lb) Voltage 11.4 VDC Charging time when the W...
Page 23
Specifications Views Power adapter Type 45 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current 1.30 A Output current 2.31 A Rated output voltage 19.50 VDC Temperature range: Oper...
Page 24
Specifications Views Computer environment Airborne contaminant level G1 as defined by ISA-S71.04-1985 Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) –40°C to 65°C (–40°F to 149°F) Rela...
