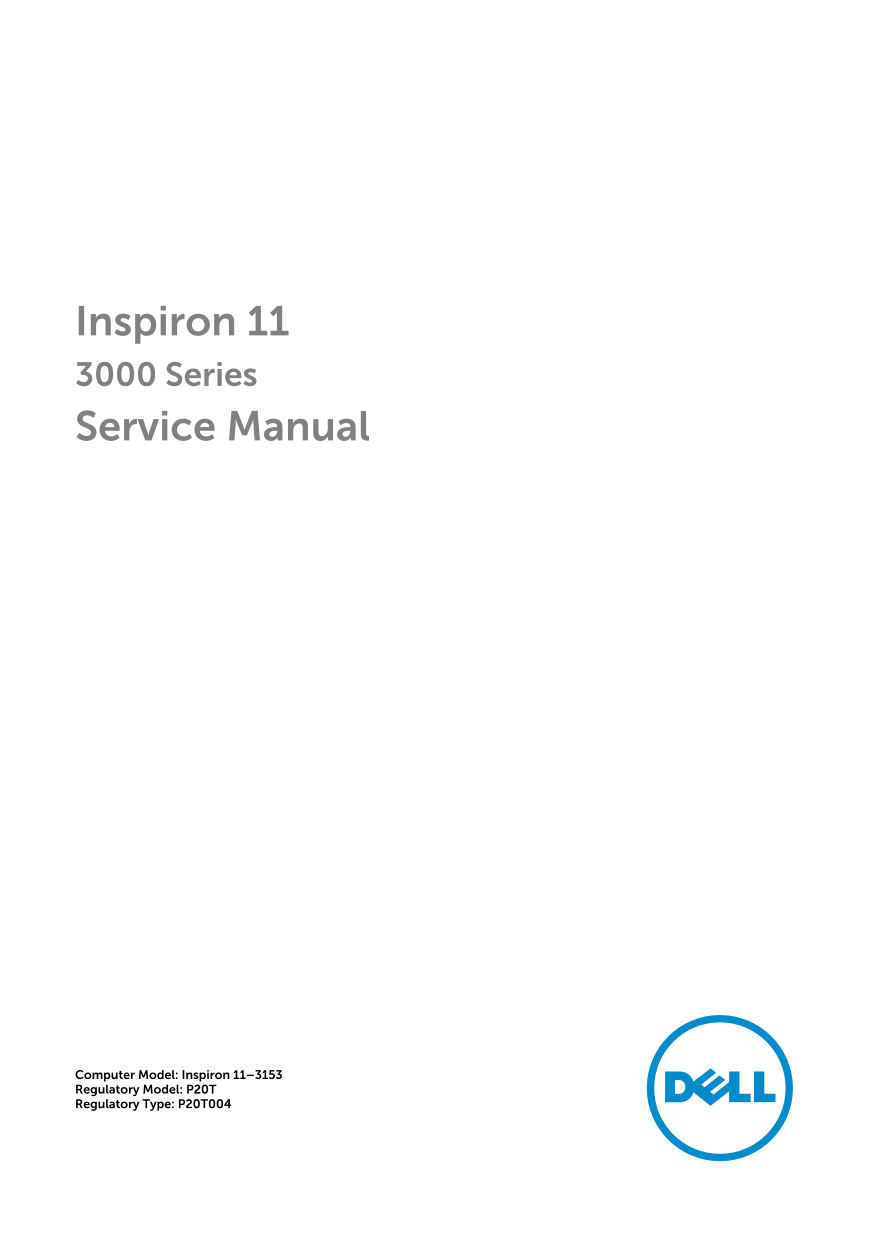

Inspiron 11 3000 Series Service Manual
Computer Model: Inspiron 11–3153 Regulatory Model: P20T Regulatory Type: P20T004
Page Summary Contents For Dell Inspiron 11 3153 Service Manual
Page 1
Inspiron 11 3000 Series Service Manual Computer Model: Inspiron 11–3153 Regulatory Model: P20T Regulatory Type: P20T004
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates either potential damage to hardware or loss of ...
Page 3
Contents Before working inside your computer.....................................9 Before you begin ...............................................................................................9 Saf...
Page 4
Removing the hard drive..........................................................23 Prerequisites.....................................................................................................23...
Page 5
Removing the speakers............................................................ Prerequisites.....................................................................................................37 P...
Page 6
Removing the system board....................................................53 Prerequisites.....................................................................................................53 Pro...
Page 7
Removing the display back-cover and antenna assembly......................................................................................69 Prerequisites.................................................
Page 8
Removing the display cable.....................................................81 Prerequisites.....................................................................................................81 P...
Page 9
Before working inside your computer CAUTION: To avoid damaging the components and cards, handle them by their edges and avoid touching pins and contacts. NOTE: The images in this document may differ f...
Page 10
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/regul...
Page 11
Plastic scribe
Page 12
After working inside your computer CAUTION: Leaving stray or loose screws inside your computer may severely damage your computer. 1 Replace all screws and ensure that no stray screws remain inside you...
Page 13
Removing the base cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wor...
Page 14
3 Using a plastic scribe, pry the base cover from the palmrest and keyboard assembly. plastic scribe palm rest and keyboard assembly base cover screws (9)
Page 15
Replacing the base cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wo...
Page 16
Removing the battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After workin...
Page 17
3 Lift the battery off the palmrest and keyboard assembly. hard-drive cable screws (3) battery palm rest and keyboard assembly 4 Press and hold the power button for 5 seconds, to ground the system boa...
Page 18
Replacing the battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After worki...
Page 19
Removing the memory module WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After ...
Page 20
2 Remove the memory module from the memory-module slot. memory module securing clips (2) memory-module slot
Page 21
Replacing the memory module WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After...
Page 22
2 Slide the memory module firmly into the slot at an angle and press the memory module down until it clicks into place. NOTE: If you do not hear the click, remove the memory module and reinstall it. t...
Page 23
Removing the hard drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wor...
Page 24
4 Lift the hard-drive assembly along with its cable off the palm rest and keyboard assembly. screws (2) tape hard-drive assembly pull tab hard-drive cable 5 Disconnect the interposer from the hard dri...
Page 25
7 Lift the hard-drive bracket from the hard drive. interposer hard-drive bracket screws (4) hard drive
Page 26
Replacing the hard drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wo...
Page 27
Removing the coin-cell battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. Af...
Page 28
plastic scribe coin-cell battery battery socket I/O board
Page 29
Replacing the coin-cell battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. A...
Page 30
Removing the wireless card WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After ...
Page 31
3 Slide the wireless card from the wireless-card slot on the I/O board. wireless-card slot screw wireless card antenna cables (2) I/O board
Page 32
Replacing the wireless card WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After...
Page 33
5 Connect the antenna cables to the wireless card. The following table provides the antenna-cable color scheme for the wireless card supported by your computer. Connectors on the wireless card Antenna...
Page 34
Removing the power and volume-buttons board WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your...
Page 35
5 Lift the power and volume-buttons board along with its cable, off the palm rest and keyboard assembly. power and volume-buttons tape board cable routing guides power and volume- buttons board
Page 36
Replacing the power and volume-buttons board WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside you...
Page 37
Removing the speakers WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After worki...
Page 38
Procedure 1 Lift the connector latch and disconnect the touch-pad cable from the connector on the touch pad. speakers (2) touch-pad cable connector latch 4 touch pad
Page 39
2 Peel the Mylar from the palm rest and keyboard assembly to access the speaker cable. Mylar speakers (2) 3 Disconnect the speaker cable from the system board. 4 Peel off the adhesive tapes that secur...
Page 40
6 Release the speakers from the alignment posts and lift the speakers along with its cable off the palm rest and keyboard assembly. speaker cable adhesive tapes (2) routing guides speakers (2)
