Dell Inspiron 3650 Specifications

Summary

Specifications and views reference document for the Dell Inspiron 3650 desktop computer. Provides detailed illustrations and descriptions of front and back panel components, ports, and connectors including USB 3.0 ports, media card reader, optical drive, headset port, power supply diagnostic button, expansion card slots, padlock rings, and security cable slot. Lists technical specifications for supported processors, memory, storage, graphics, and expansion capabilities. Intended for end-users and IT technicians needing to identify physical components, ports, and upgrade options on the Inspiron 3650 desktop.

📄 Preview ‹ PAGE OF 15 ›

‹

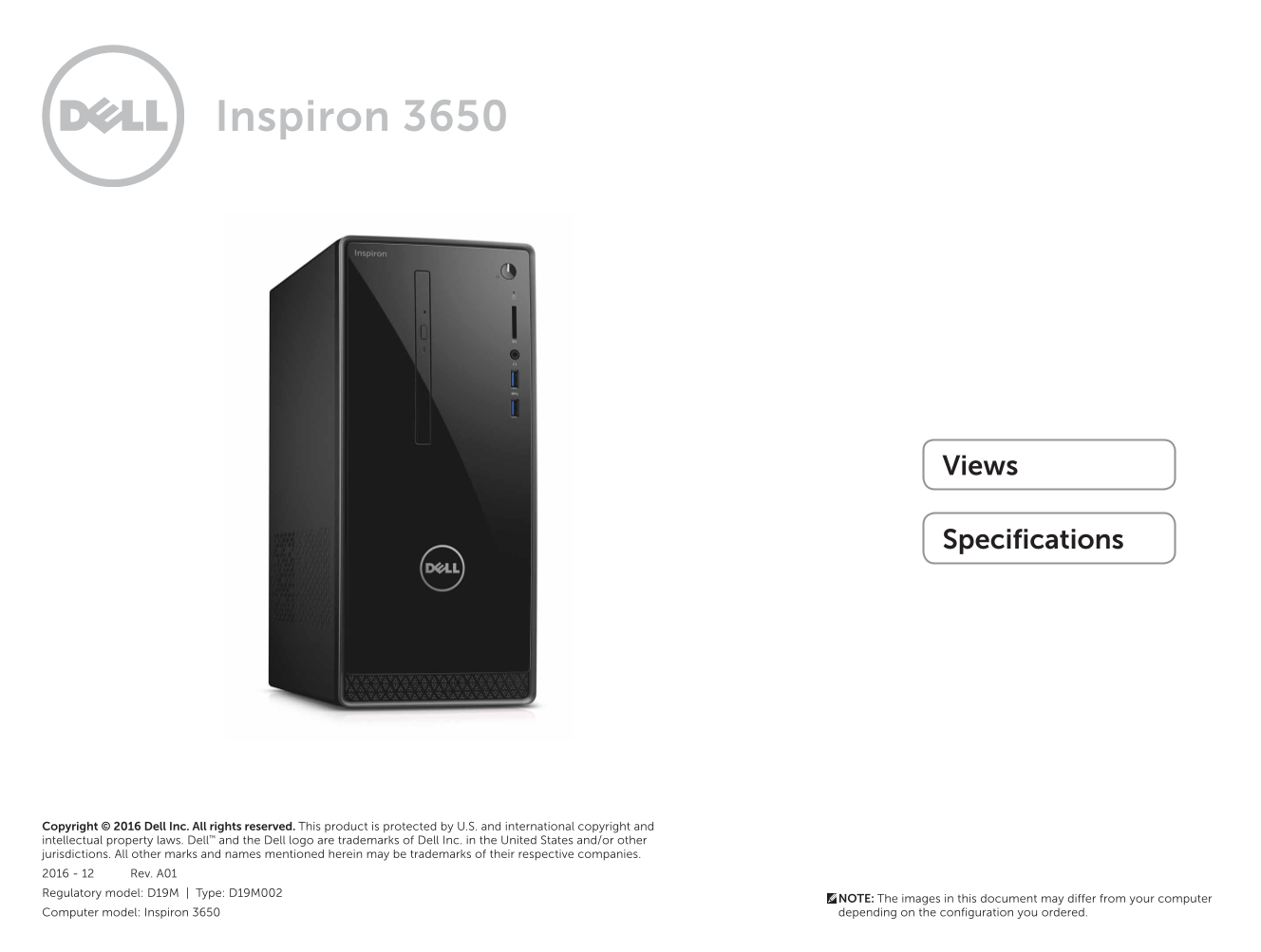

Dell Inspiron 3650 Specifications - Page 1

›

Page 1 Text Content

Inspiron 3650

Views

Specifications

Copyright © 2016 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell™ and the Dell logo are trademarks of Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned herein may be trademarks of their respective companies. 2016 ‑ 12 Rev. A01 Regulatory model: D19M | Type: D19M002

NOTE: The images in this document may differ from your computer

Computer model: Inspiron 3650 depending on the configuration you ordered.

Page Summary Contents For Dell Inspiron 3650 Specifications

Page 1 Inspiron 3650 Views Specifications Copyright © 2016 Dell Inc. All rights reserved. This product is protected by U.S. and international copyright and intellectual property laws. Dell™ and the Dell logo...

Page 2 Views Specifications Back panel Power button Hard-drive activity light USB 3.0 ports (2) Press to turn on the computer if it Turns on when the computer Connect peripherals such as is turned off or in ...

Page 3 Views Specifications Back panel Back panel Power-supply diagnostic button Connect USB, audio, video, and other devices. Press to start the test on the availability of the power supply. Expansion-card ...

Page 4 Views Specifications Back panel Back panel Line-in port USB 2.0 ports (4) Connect recording or playback devices such as a Connect peripherals such as storage devices, printers, microphone or CD player...

Page 5 Specifications Views Dimensions and weight Height 352.90 mm (13.90 in) Width 154 mm (6.06 in) Depth 303 mm (11.93in) Weight (maximum) 7.40 kg (16.30 lb) NOTE: The weight of your desktop varies dependi...

Page 6 Specifications Views System information Computer model Inspiron 3650 Processor • Intel Celeron Processor • Intel Pentium Processor • 6th Generation Intel Core i3 Processor • 6th Generation Intel Core ...

Page 7 Specifications Views Memory Slot Two UDIMM slots Type Dual‑channel DDR3L Speed 1600 MHz Configurations supported 2 GB, 4 GB, 8 GB, 12 GB, and 16 GB Dimensions and System Ports and Memory Video Audio S...

Page 8 Specifications Views Ports and connectors External: Network One RJ45 port USB • Four USB 2.0 ports • Two USB 3.0 ports Audio • One headset port • One microphone port • One line‑in port • One line‑out ...

Page 9 Specifications Views Communications Ethernet 10/100/1000 Mbps Ethernet controller integrated on system board Wireless • Up to Wi‑Fi 802.11ac • Bluetooth 4.0 Dimensions and System Ports and Memory Vide...

Page 10 Specifications Views Video Controller: Integrated Intel HD Graphics Discrete NVIDIA Ge Force GT 730 Memory: Integrated Shared system memory Discrete 2 GB GDDR3 Dimensions and System Ports and Memory V...

Page 11 Specifications Views Audio Controller Realtek Audio Codec ALC3600‑CG with Waves Maxx Audio Type Integrated 5.1 channel Intel High Definition Audio Dimensions and System Ports and Memory Video Audio St...

Page 12 Specifications Views Storage Interface • SATA 3 Gbps for optical drive • SATA 6 Gbps for hard drive Hard drive Two 2.5‑inch drive or one 3.5‑inch drive Optical drive (optional) One 9.5‑mm DVD+/‑RW dri...

Page 13 Specifications Views Media-card reader Type One 5‑in‑1 slot Cards supported • Secure Digital (SD) • SD Extended Capacity (SDXC) • High Capacity SD (SDHC) • Multi Media Card (MMC) • Multi Media Card pl...

Page 14 Specifications Views Power ratings Input voltage • 100 VAC–240 VAC • 100 VAC–127 VAC/200 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current (maximum) • 4.0 A Dimensions and System Ports and Memory ...

Page 15 Specifications Views Computer environment Airborne contaminant level G2 or lower as defined by ISA‑S71.04‑1985 Relative humidity (maximum) 20% to 80% (noncondensing) Operating Storage Temperature rang...

Manual Details

Brand	Dell
Pages	15
File Size	1.11 MB
Published	June 25, 2026

13 views

Enter the captcha to get the download link:

Frequently Asked Questions

What are the dimensions and weight of the Inspiron 3650?

Height is 352.90 mm, width is 154 mm, depth is 303 mm, and weight is 7.40 kg (16.30 lb).

What ports are available on this computer?

It has two USB 3.0 ports, four USB 2.0 ports, one HDMI port, one VGA port, one RJ45 network port, and various audio jacks.

What processors and memory configurations are supported?

It supports 6th Gen Intel Celeron, Pentium, i3, i5, and i7 processors with up to 16 GB of Dual-channel DDR3L 1600 MHz memory.

What are the supported storage options?

It supports two 2.5-inch drives or one 3.5-inch drive, plus an optional 9.5mm DVD+/‑RW optical drive.
