Dell Vostro 3653 Owner's Manual
Summary
Dell Vostro 3653 Owner's Manual. This manual provides comprehensive information for the Vostro 3653 desktop, including working inside the computer, removing and installing components, system specifications, and troubleshooting procedures. Target users: small business users and IT administrators maintaining Dell Vostro desktop systems.
Page 1 Text Content
Dell Vostro 3653 Owner's Manual
Regulatory Model: D19M Regulatory Type: D19M002
Page Summary Contents For Dell Vostro 3653 Owner's Manual

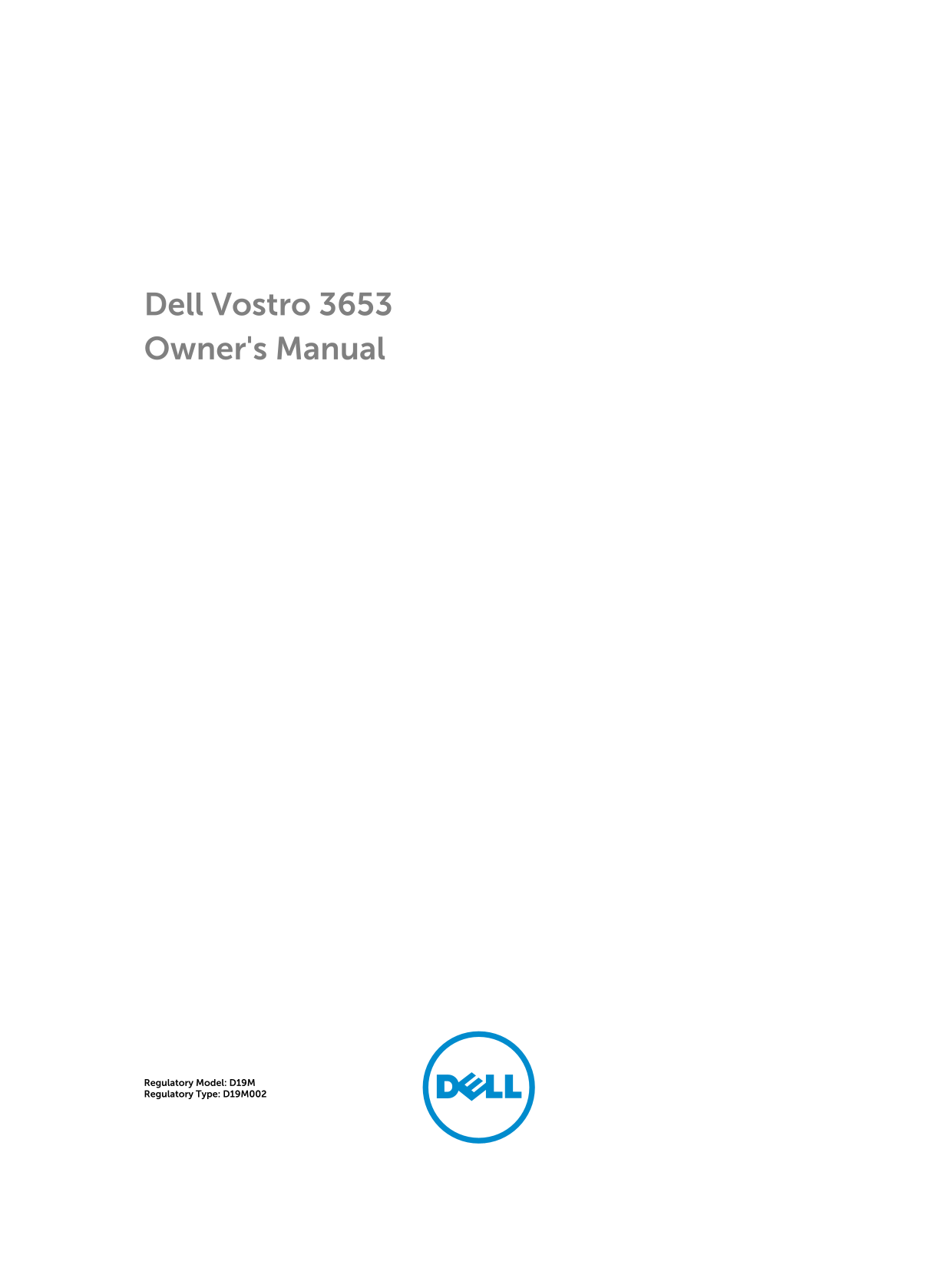

Page 1
Dell Vostro 3653 Owner's Manual Regulatory Model: D19M Regulatory Type: D19M002
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates either potential damage to hardware or loss of ...
Page 3
Contents 1 Working on Your Computer................................................................................5 Before Working Inside Your Computer...................................................
Page 4
3 Troubleshooting Your Computer.................................................................... Diagnostic Power LED Codes.............................................................................
Page 5
Working on Your Computer Before Working Inside Your Computer Use the following safety guidelines to help protect your computer from potential damage and to help to ensure your personal safety. Unless ...
Page 6
CAUTION: To disconnect a network cable, first unplug the cable from your computer and then unplug the cable from the network device. 3. Disconnect all network cables from the computer. 4. Disconnect y...
Page 7
2. Click the arrow in the lower-right corner of the Start menu as shown below, and then click Shut Down . 2. Ensure that the computer and all attached devices are turned off. If your computer and atta...
Page 8
Removing and Installing Components This section provides detailed information on how to remove or install the components from your computer. Recommended Tools The procedures in this document may requi...
Page 9
3. Follow the procedures in After Working Inside Your Computer. Removing the Bezel 1. Follow the procedures in Before Working Inside Your Computer. 2. Remove the cover. 3. Perform the following steps ...
Page 10
CAUTION: The front-bezel door opens only to a limited extent. See the printed label for the maximum permissible level. Removing the Hard-Drive Assembly 1. Follow the procedures in Before Working Insid...
Page 11
4. Perform the following steps to remove the hard drive from the hard-drive bracket: a. Remove the screws that secure the hard-drive bracket to the hard drive. b. Remove the hard drive from the hard-d...
Page 12
4. Perform the following steps to remove the optical-drive bracket: a. Remove the screws that secure the optical-drive bracket to the optical drive. b. Remove the optical-drive bracket from the optica...
Page 13
Removing the WLAN Card 1. Follow the procedures in Before Working Inside Your Computer. 2. Remove the: cover bezel 3. Open the front-bezel door. 4. Perform the following steps to remove the WLAN card ...
Page 14
4. Perform the following steps to remove the memory from the system board: a. Press down the memory-retention tabs on both sides of the memory module. b. Remove the memory from the memory-module conne...
Page 15
Installing the Expansion Card 1. Insert the expansion card to its connector on the system board. 2. Secure the expansion card by pushing the card-retention latch until it snaps into place. 3. Push the...
Page 16
Installing the Power Supply Unit (PSU) 1. Slide the PSU towards the back of the computer until it snaps into place. 2. Replace the screws to secure the power supply unit to the computer. 3. Route the ...
Page 17
Installing the Power Switch 1. Push the power switch into its slot and press it in, until it snaps into place. 2. Route the power-switch cable through the metal clip. 3. Connect the power-switch cable...
Page 18
Installing the Coin-Cell Battery 1. Place the coin-cell battery on the system board until it snaps in place. 2. Install the: bezel cover 3. Follow the procedures in After Working Inside Your Computer....
Page 19
Removing the Processor 1. Follow the procedures in Before Working Inside Your Computer. 2. Remove the: cover bezel 3. Open the front-bezel door. 4. Remove the heatsink module. 5. Perform the following...
Page 20
c. Slide the system fan to remove it from the computer [3]. Installing the System Fan 1. Place the system fan on the computer. 2. Tighten the screws to secure the system fan to the computer. 3. Connec...
Page 21
Installing the System Board 1. Place the system board into the computer securely until it snaps in place. 2. Tighten the screws to secure the system board to the computer. 3. Thread and connect all th...
Page 22
System Board Layout 1. SATA power connector 2. SATA1 3. Light bar header 4. SATA0 5. SATA3 6. SATA2 7. SATA power connector 8. PSU connector 9. Coin-cell battery 10. Clear CMS jumper 11. ME disable ju...
Page 23
Troubleshooting Your Computer You can troubleshoot your computer using indicators like Diagnostic Lights, Beep Codes, and Error Messages during the operation of the computer. Diagnostic Power LED Code...
Page 24
Diagnostic Error Messages Table 2. Diagnostic error messages Error Messages Description AUXILIARY DEVICE FAILURE The touchpad or external mouse may be faulty. For an external mouse, check the cable co...
Page 25
Error Messages Description HARD-DISK DRIVE CONFIGURATION ERROR The computer cannot identify the drive type. Shut down the computer, remove the hard drive, and boot the computer from an optical drive. ...
Page 26
Error Messages Description KEYBOARD DATA LINE FAILURE For external keyboards, check the cable connection. Run the Keyboard Controller test in the Dell Diagnostics. KEYBOARD STUCK KEY FAILURE For exter...
Page 27
Error Messages Description OPTIONAL ROM BAD CHECKSUM The optional ROM has failed. Contact Dell. SECTOR NOT FOUND The operating system cannot locate a sector on the hard drive. You may have a defective...
Page 28
System Error Messages Table 3. System error messages System Message Description Alert! Previous attempts at booting this system The computer failed to complete the boot routine have failed at checkpoi...
Page 29
System Setup Options Table 4. — Main System Time Displays the system time. Allows you to reset the time on the computer’s internal clock. System Date Displays the system date. Allows you to reset the ...
Page 30
Default: Enabled SATA Operation Allows you to change the SATA mode Default: AHCI Intel Multi-Display Allows you to enable or disable the multi-display feature. Default: disabled USB Emulation Allows y...
Page 31
Default: Not Set Asset Tag Allows you to enter your service tag. Admin Password Allows you to create an admin password. HDD Password Allows you to create an HDD password. System Password Allows you to...
Page 32
change the system configuration information after you add, change, or remove any hardware in your computer. set or change a user-selectable option such as the user password. read the current amount of...
Page 33
Specifications NOTE: Offerings may vary by region. The following specifications are only those required by law to ship with your computer. For more information about the configuration of your computer...
Page 34
Table 12. Audio Integrated Integrated 5.1 channel High Definition Audio Table 13. Communication Ethernet 10/100/1000 Mbps Ethernet controller integrated on system board Wireless Up to Wi-Fi 802.11ac B...
Page 35
Front panel Two USB 3.0 connectors Back panel Four USB 2.0 connectors Video one 15-hole VGA connector one 19-pin HDMI connector Table 19. Control Lights And Diagnostic Lights power button light white ...
Page 36
Relative humidity 20 % to 80 % (non-condensing) Altitude: Operating –15.20 m to 3048 m (–50 ft to 10,000 ft) Storage –15.20 m to 10,668 m (–50 ft to 35,000 ft) Airborne contaminant level G1 as defined...
Page 37
Contacting Dell NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog. Dell provides several on...
