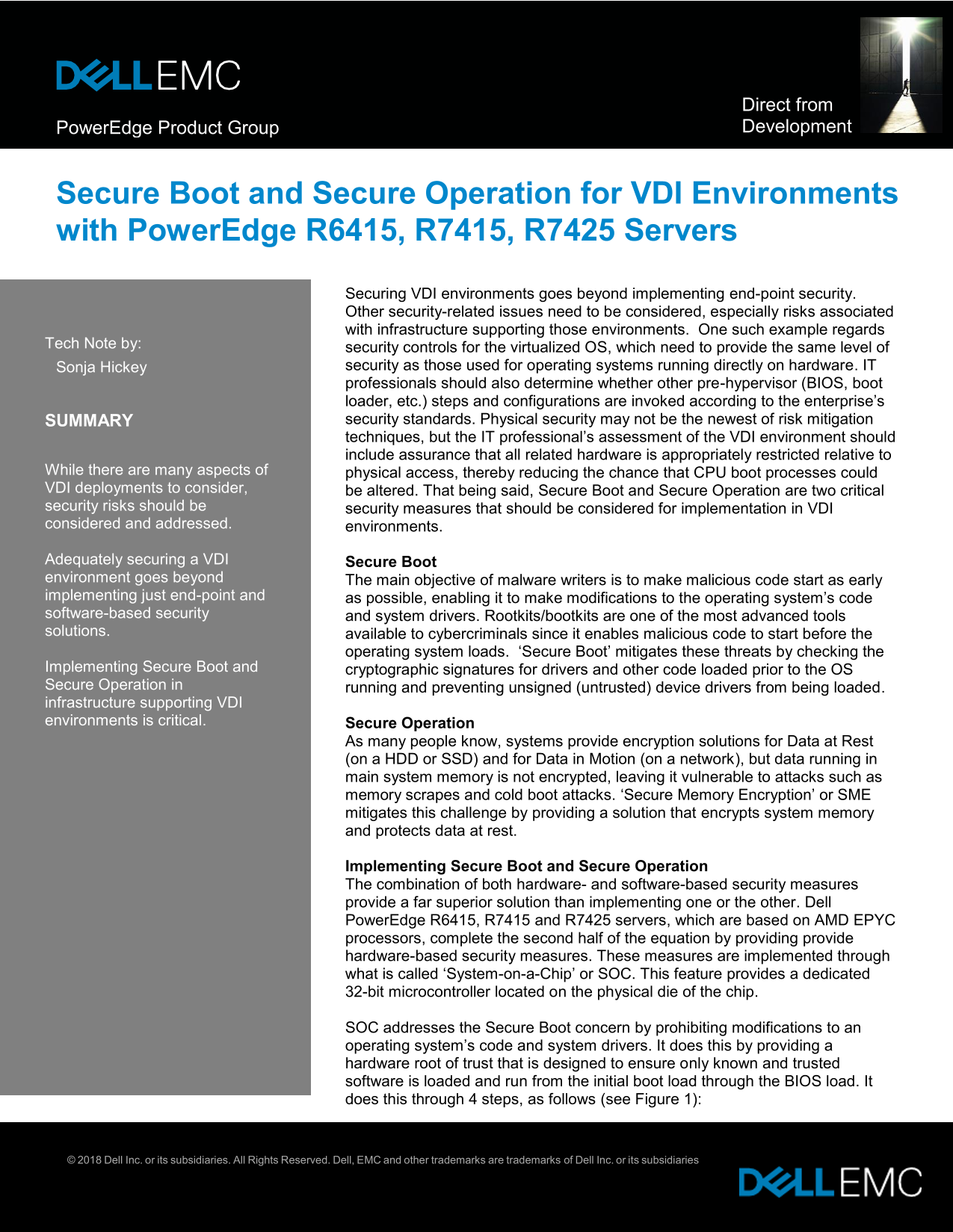

Secure Boot and Secure Operation for VDI Environments with Power Edge R6415, R7415, R7425 Servers

Securing VDI environments goes beyond implementing end-point security. Other security-related issues need to be considered, especially risks associated with infrastructure supporting those environments. One such example regards

Tech Note by:

security controls for the virtualized OS, which need to provide the same level of Sonja Hickey security as those used for operating systems running directly on hardware. IT professionals should also determine whether other pre-hypervisor (BIOS, boot loader, etc.) steps and configurations are invoked according to the enterprise’s SUMMARY security standards. Physical security may not be the newest of risk mitigation techniques, but the IT professional’s assessment of the VDI environment should include assurance that all related hardware is appropriately restricted relative to

While there are many aspects of physical access, thereby reducing the chance that CPU boot processes could VDI deployments to consider, be altered. That being said, Secure Boot and Secure Operation are two critical security risks should be security measures that should be considered for implementation in VDI considered and addressed. environments.

Adequately securing a VDI Secure Boot environment goes beyond The main objective of malware writers is to make malicious code start as early implementing just end-point and as possible, enabling it to make modifications to the operating system’s code software-based security and system drivers. Rootkits/bootkits are one of the most advanced tools solutions. available to cybercriminals since it enables malicious code to start before the

operating system loads. ‘Secure Boot’ mitigates these threats by checking the

Implementing Secure Boot and cryptographic signatures for drivers and other code loaded prior to the OS Secure Operation in running and preventing unsigned (untrusted) device drivers from being loaded. infrastructure supporting VDI environments is critical. Secure Operation

As many people know, systems provide encryption solutions for Data at Rest (on a HDD or SSD) and for Data in Motion (on a network), but data running in main system memory is not encrypted, leaving it vulnerable to attacks such as memory scrapes and cold boot attacks. ‘Secure Memory Encryption’ or SME mitigates this challenge by providing a solution that encrypts system memory and protects data at rest.

Implementing Secure Boot and Secure Operation The combination of both hardware- and software-based security measures provide a far superior solution than implementing one or the other. Dell Power Edge R6415, R7415 and R7425 servers, which are based on AMD EPYC processors, complete the second half of the equation by providing provide hardware-based security measures. These measures are implemented through what is called ‘System-on-a-Chip’ or SOC. This feature provides a dedicated 32-bit microcontroller located on the physical die of the chip.

SOC addresses the Secure Boot concern by prohibiting modifications to an operating system’s code and system drivers. It does this by providing a hardware root of trust that is designed to ensure only known and trusted software is loaded and run from the initial boot load through the BIOS load. It does this through 4 steps, as follows (see Figure 1):
