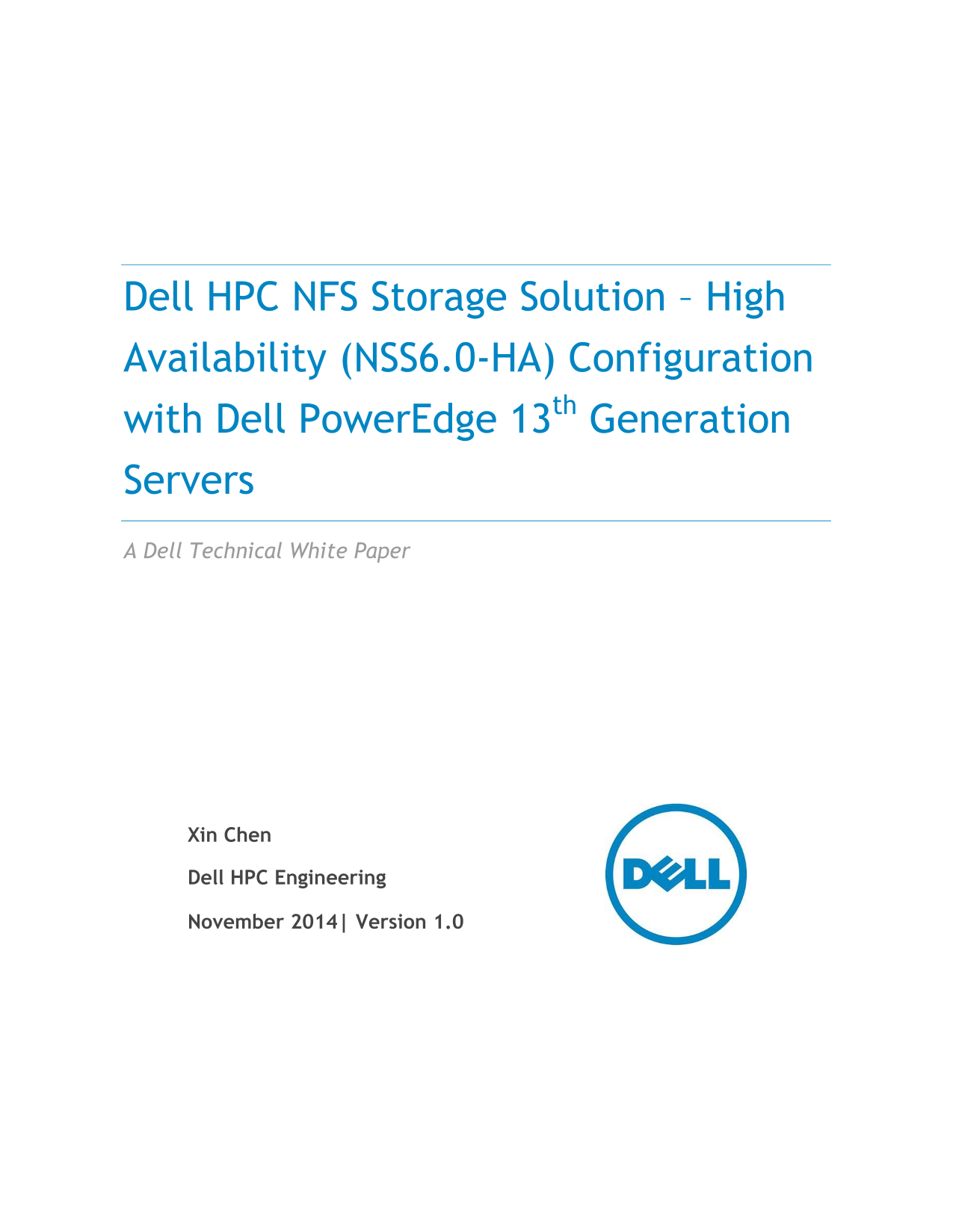

Dell HPC NFS Storage Solution – High Availability (NSS6.0-HA) Configuration with Dell Power Edge 13th Generation Servers A Dell Technical White Paper
Xin Chen
Dell HPC Engineering
November 2014| Version 1.0
Page Summary Contents For Dell HPC NFS Storage Solution - High Availability NSS6.0-HA Configuration with Dell PowerEdge 13th Generation Servers Owner's Manual and User Guide
Page 1
Dell HPC NFS Storage Solution – High Availability (NSS6.0-HA) Configuration with Dell Power Edge 13th Generation Servers A Dell Technical White Paper Xin Chen Dell HPC Engineering November 2014| Versi...
Page 2
Dell HPC NFS Storage Solution - High Availability (NSS6.0-HA) Configuration with Dell Power Edge 13th Generation Servers This document is for informational purposes only and may contain typographical ...
Page 3
Dell HPC NFS Storage Solution - High Availability (NSS6.0-HA) Configuration with Dell Power Edge 13th Generation Servers Contents Executive summary .......................................................
Page 4
Dell HPC NFS Storage Solution - High Availability (NSS6.0-HA) Configuration with Dell Power Edge 13th Generation Servers Figure 4. IPo IB random write and read performance ...............................
Page 5
Dell HPC NFS Storage Solution - High Availability (NSS6.0-HA) Configuration with Dell Power Edge 13th Generation Servers Executive summary This white paper describes the Dell NFS Storage Solution - Hi...
Page 6
Dell HPC NFS Storage Solution - High Availability (NSS6.0-HA) Configuration with Dell Power Edge 13th Generation Servers 1. Introduction This white paper provides information on the latest Dell NFS St...
Page 7
Dell HPC NFS Storage Solution - High Availability (NSS6.0-HA) Configuration with Dell Power Edge 13th Generation Servers failover the storage service to the healthy server with the assistance of the t...
Page 8
Dell HPC NFS Storage Solution - High Availability (NSS6.0-HA) Configuration with Dell Power Edge 13th Generation Servers 2.2. NSS-HA offerings from Dell Table 1 lists the available Dell NSS-HA solutio...
Page 9
Dell HPC NFS Storage Solution - High Availability (NSS6.0-HA) Configuration with Dell Power Edge 13th Generation Servers 3. Dell Power Vault MD3460 and MD3060e storage arrays As compared to previous v...
Page 10
Dell HPC NFS Storage Solution - High Availability (NSS6.0-HA) Configuration with Dell Power Edge 13th Generation Servers 4. Evaluation The architecture proposed in this white paper was evaluated in th...
Page 11
Dell HPC NFS Storage Solution - High Availability (NSS6.0-HA) Configuration with Dell Power Edge 13th Generation Servers NSS6.0-HA test bed Figure 2. Public network (IB or 10Gb E) Clients Clients Priv...
Page 12
Dell HPC NFS Storage Solution - High Availability (NSS6.0-HA) Configuration with Dell Power Edge 13th Generation Servers Systems Management i DRAC8 Enterprise. Power Supply Dual Power Supply Units. St...
Page 13
Dell HPC NFS Storage Solution - High Availability (NSS6.0-HA) Configuration with Dell Power Edge 13th Generation Servers NSS6.0-HA client cluster configuration Table 5. Client / HPC Compute Cluster Cl...
Page 14
Dell HPC NFS Storage Solution - High Availability (NSS6.0-HA) Configuration with Dell Power Edge 13th Generation Servers Note: The analysis below assumes that the HA cluster service is running on the ...
Page 15
Dell HPC NFS Storage Solution - High Availability (NSS6.0-HA) Configuration with Dell Power Edge 13th Generation Servers Fence device failure Single SAS link failure Multiple SAS link failures T...
Page 16
Dell HPC NFS Storage Solution - High Availability (NSS6.0-HA) Configuration with Dell Power Edge 13th Generation Servers Impact to clients Clients mount the NFS file system exported by the server usin...
Page 17
Dell HPC NFS Storage Solution - High Availability (NSS6.0-HA) Configuration with Dell Power Edge 13th Generation Servers Leveraging the latest Power Edge R630 server and RHEL 7.0, significant sequenti...
Page 18
Dell HPC NFS Storage Solution - High Availability (NSS6.0-HA) Configuration with Dell Power Edge 13th Generation Servers IPo IB random write and read performance Figure 4. NFS IB random I/O performanc...
Page 19
Dell HPC NFS Storage Solution - High Availability (NSS6.0-HA) Configuration with Dell Power Edge 13th Generation Servers 7. References 1. Dell HPC NFS Storage Solution High Availability Configurations...
Page 20
Dell HPC NFS Storage Solution - High Availability (NSS6.0-HA) Configuration with Dell Power Edge 13th Generation Servers Appendix A: Benchmarks and test tools The IOzone benchmark tool was used to mea...
Page 21
Dell HPC NFS Storage Solution - High Availability (NSS6.0-HA) Configuration with Dell Power Edge 13th Generation Servers IOzone Argument Description -t Number of threads. +m Location of clients to run...
Page 22
Dell HPC NFS Storage Solution - High Availability (NSS6.0-HA) Configuration with Dell Power Edge 13th Generation Servers A.2. Checkstream The checkstream utility is available at http://sourceforge.net...
Page 23
Dell HPC NFS Storage Solution - High Availability (NSS6.0-HA) Configuration with Dell Power Edge 13th Generation Servers # dd if=/dev/zero of=/mnt/xfs/file bs=1M count=90000 To read data from the stor...
