Dell HPC NFS Storage Solution - High Availability NSS-HA Configuration with Dell PowerVault MD3260-MD3060e Storage Arrays User Guide and Technical Manual.
Summary
Technical white paper describing the Dell HPC NFS Storage Solution with High Availability (NSS-HA) configuration using Dell PowerVault MD3260 and MD3060e storage arrays. Authored by Dell HPC Engineering (Xin Chen, Garima Kochhar, Mario Gallegos), this May 2013 version 2.0 document covers NSS-HA architecture overview, Dell-specific HA offerings, deployment best practices, and configuration procedures for building redundant NFS storage infrastructure supporting high-performance computing clusters.
Page 1 Text Content

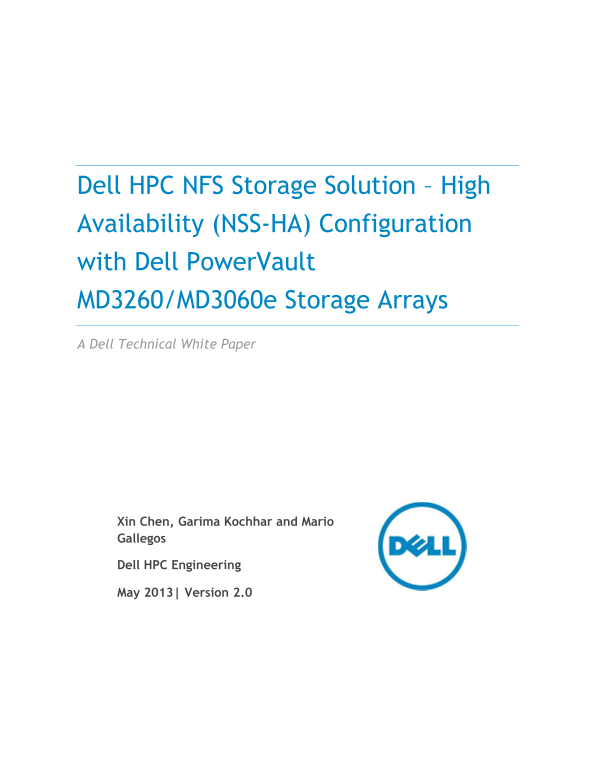

Dell HPC NFS Storage Solution – High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays A Dell Technical White Paper
Xin Chen, Garima Kochhar and Mario Gallegos
Dell HPC Engineering
May 2013| Version 2.0
Page Summary Contents For Dell HPC NFS Storage Solution - High Availability NSS-HA Configuration with Dell PowerVault MD3260-MD3060e Storage Arrays User Guide and Technical Manual.
Page 1
Dell HPC NFS Storage Solution – High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays A Dell Technical White Paper Xin Chen, Garima Kochhar and Mario Gallegos De...
Page 2
Dell HPC NFS Storage Solution - High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays This document is for informational purposes only and may contain typographi...
Page 3
Dell HPC NFS Storage Solution - High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays Contents Executive summary (updated May 2013) ................................
Page 4
Dell HPC NFS Storage Solution - High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays Figures Figure 1. The infrastructure of the NSS-HA solution ..................
Page 5
Dell HPC NFS Storage Solution - High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays Executive summary (updated May 2013) This solution guide describes the Dell...
Page 6
Dell HPC NFS Storage Solution - High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays 1. Introduction This solution guide provides information on the latest Dell...
Page 7
Dell HPC NFS Storage Solution - High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays The infrastructure of the NSS-HA solution Figure 1. Note: The i DRAC 7 ente...
Page 8
Dell HPC NFS Storage Solution - High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays NSS-HA Solutions(1), (2), (3) Table 1. NSS2-HA NSS3-HA Release NSS4-HA NSS4...
Page 9
Dell HPC NFS Storage Solution - High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays 3. Dell Power Vault MD3260 and MD3060e storage arrays As compared to previo...
Page 10
Dell HPC NFS Storage Solution - High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays o With the RAID-6 8+2 choice for the virtual disk configuration, six virtua...
Page 11
Dell HPC NFS Storage Solution - High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays 4. Evaluation The architecture proposed in this white paper was evaluated i...
Page 12
Dell HPC NFS Storage Solution - High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays NSS4.5-HA test bed Figure 3. Public network (IB or 10Gb E) Clients Clients ...
Page 13
Dell HPC NFS Storage Solution - High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays Storage configuration Storage Enclosure One Dell Power Vault MD3260 enclosu...
Page 14
Dell HPC NFS Storage Solution - High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays Firmware and Drivers PERC H710P firmware 21.0.2-0001 PERC H710P driver mega...
Page 15
Dell HPC NFS Storage Solution - High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays tolerant mechanisms in NSS-HA solutions, then presents the HA functionality...
Page 16
Dell HPC NFS Storage Solution - High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays Server failure. Heartbeat link failure. Public link failure. Privat...
Page 17
Dell HPC NFS Storage Solution - High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays Multiple SAS link failures — simulated by disconnecting all SAS links bet...
Page 18
Dell HPC NFS Storage Solution - High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays 5.1. IPo IB sequential writes and reads ro in /s Figure 4 shows the sequent...
Page 19
Dell HPC NFS Storage Solution - High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays IPo IB random write and read performance Figure 5. NFS IPo IB random I/O pe...
Page 20
Dell HPC NFS Storage Solution - High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays IPo IB file create performance Figure 6. st ra ti re te ra ti se se File cr...
Page 21
Dell HPC NFS Storage Solution - High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays IPo IB file remove performance Figure 8. re ra ti File remove se File remov...
Page 22
Dell HPC NFS Storage Solution - High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays Appendix A: Benchmarks and test tools The IOzone benchmark was used to meas...
Page 23
Dell HPC NFS Storage Solution - High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays IOzone Argument Description -s File size. -t Number of threads. +m Location...
Page 24
Dell HPC NFS Storage Solution - High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays A.2. mdtest You can download mdtest from http://sourceforge.net/projects/md...
Page 25
Dell HPC NFS Storage Solution - High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays Start the cluster service on the server. Mount NFS Share on clients. Me...
Page 26
Dell HPC NFS Storage Solution - High Availability (NSS-HA) Configuration with Dell Power Vault MD3260/MD3060e Storage Arrays checkstream[compute-00-10]: [valid data] 1488 valid extents in 273.860652 s...
