Dell S2318HN S2318NX Outline Diagram User's Manual
Summary
Dell S2318H/S2318HX/S2318HN/S2318NX/S2318M monitor outline dimension drawing showing physical measurements (mm and inches) including display bezel dimensions, stand depth, tilt range, VESA mounting pattern, and full dimensional specifications for front/side/back views.
Page 1 Text Content

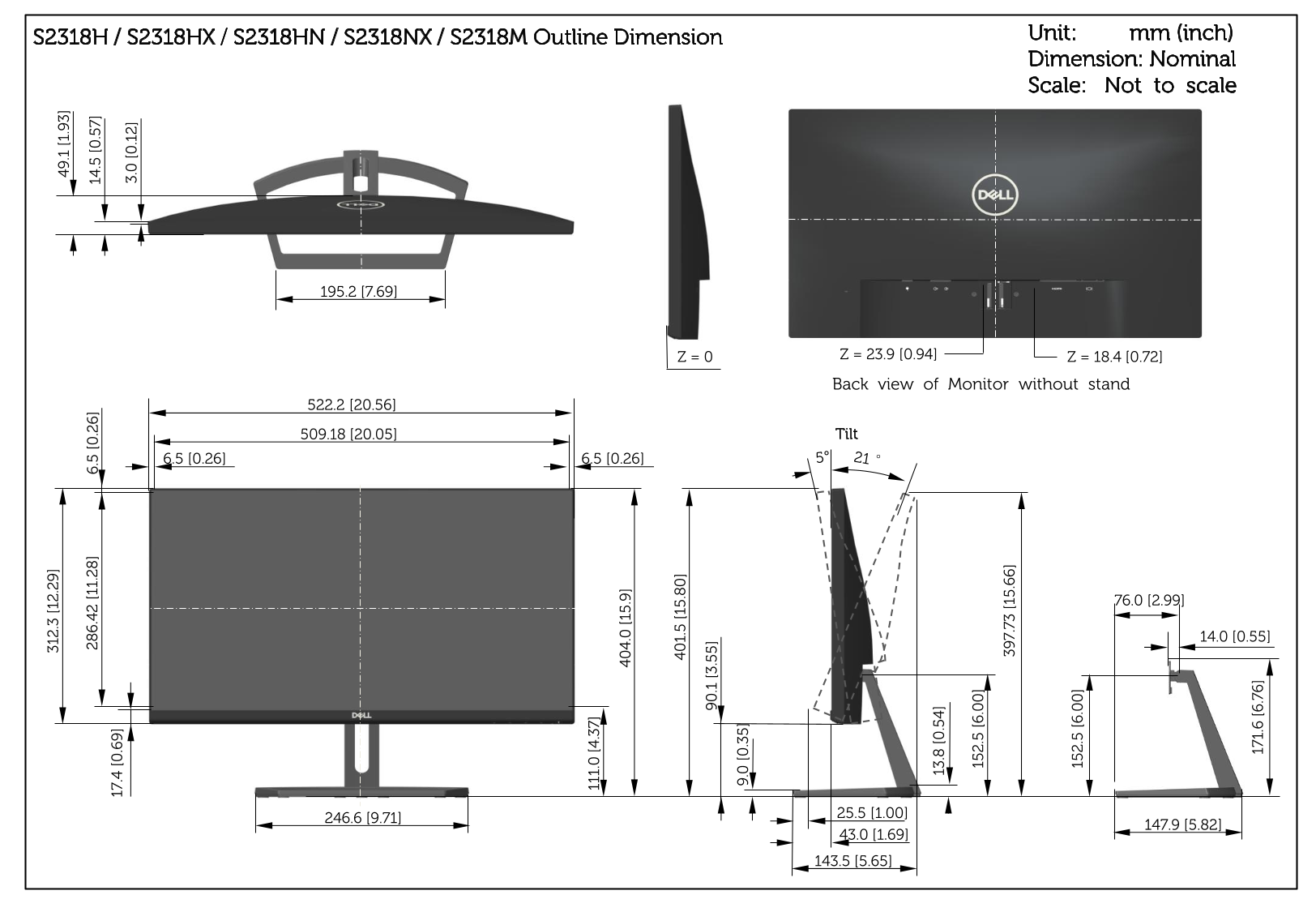

S2318H / S2318HX / S2318HN / S2318NX / S2318M Outline Dimension Unit: mm (inch)
.1 1. Dimension: Nominal Scale: Not to scale
Z = 0 Z = 23.9 [0.94] Z = 18.4 [0.72] Back view of Monitor without stand
509.18 [20.05] Tilt
