Dell Outline Drawing User's Manual
Summary
Outline dimension drawings for Dell S2340L and S2340M monitors. Provides measurements in millimeters and inches including width, height, depth, tilt, and stand dimensions. Target users are integrators and consumers planning workspace layouts and monitor installations.
Page 1 Text Content

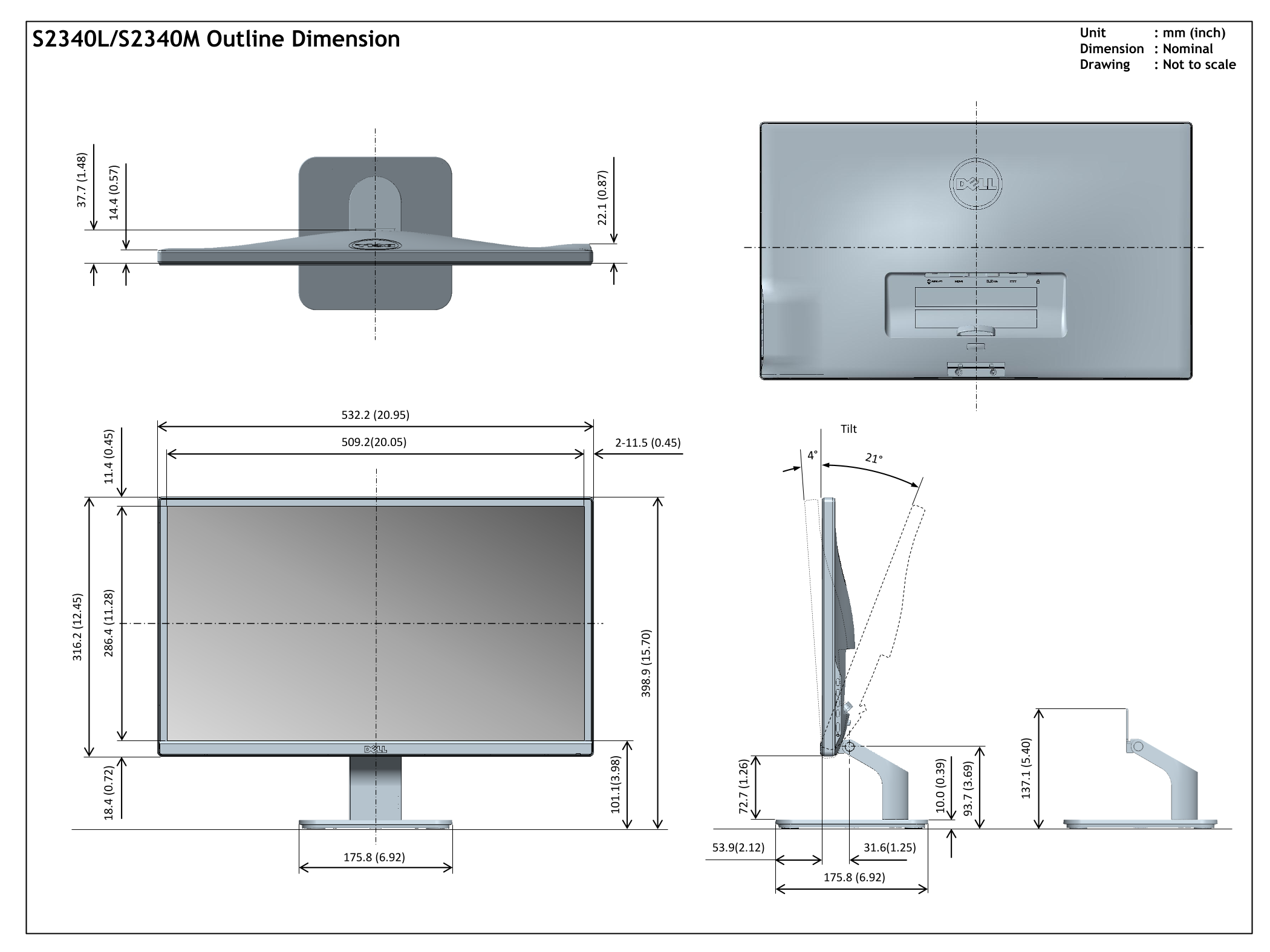

S2340L/S2340M Outline Dimension Unit : mm (inch)
Dimension : Nominal Drawing : Not to scale
Page Summary Contents For Dell Outline Drawing User's Manual
Page 1
S2340L/S2340M Outline Dimension Unit : mm (inch) Dimension : Nominal Drawing : Not to scale
