Dell U2414H Outline Drawing User's Manual
Summary

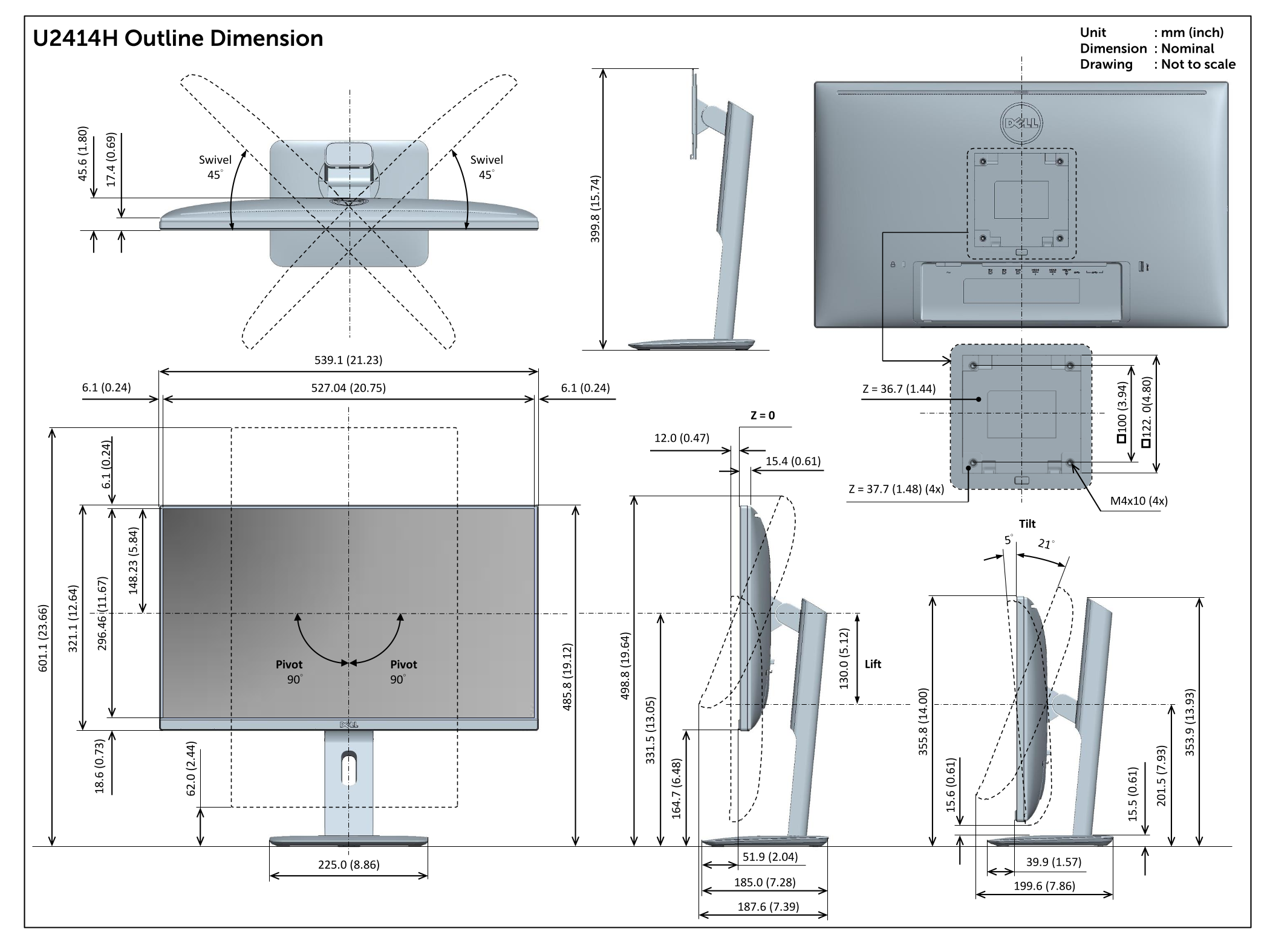

Technical dimension drawing for the Dell U2414H monitor showing outline dimensions in millimeters and inches. The document specifies nominal dimensions including screen size, bezel measurements, stand dimensions, swivel range (45 degrees each direction), tilt angles, pivot capability (90 degrees), lift height adjustment, and VESA mounting hole patterns (M4x10). It includes multiple views showing the monitor in various positions and orientations. Target users are industrial designers, furniture planners, AV installers, and procurement specialists requiring precise physical specifications for workspace planning and monitor mounting solutions.
Page 1 Text Content
U2414H Outline Dimension Unit : mm (inch) .1 .6 6)
Dimension : Nominal Drawing : Not to scale
Swivel Swivel 45° 45° .0 .4
Pivot Pivot Lift
