Dell S2318HN S2318NX Outline Drawing
Summary
Mechanical outline dimension drawing for Dell S2318H/S2318HX/S2318HN/S2318NX/S2318M monitor series. Provides detailed physical measurements in millimeters and inches covering front, side, and rear views including display panel dimensions, stand specifications, tilt range, bezel widths, VESA mounting interface, connector port locations, and overall footprint. Intended for hardware engineers, OEM integrators, and mounting bracket designers needing precise dimensional data for these 23-inch Dell monitor models.
Page 1 Text Content

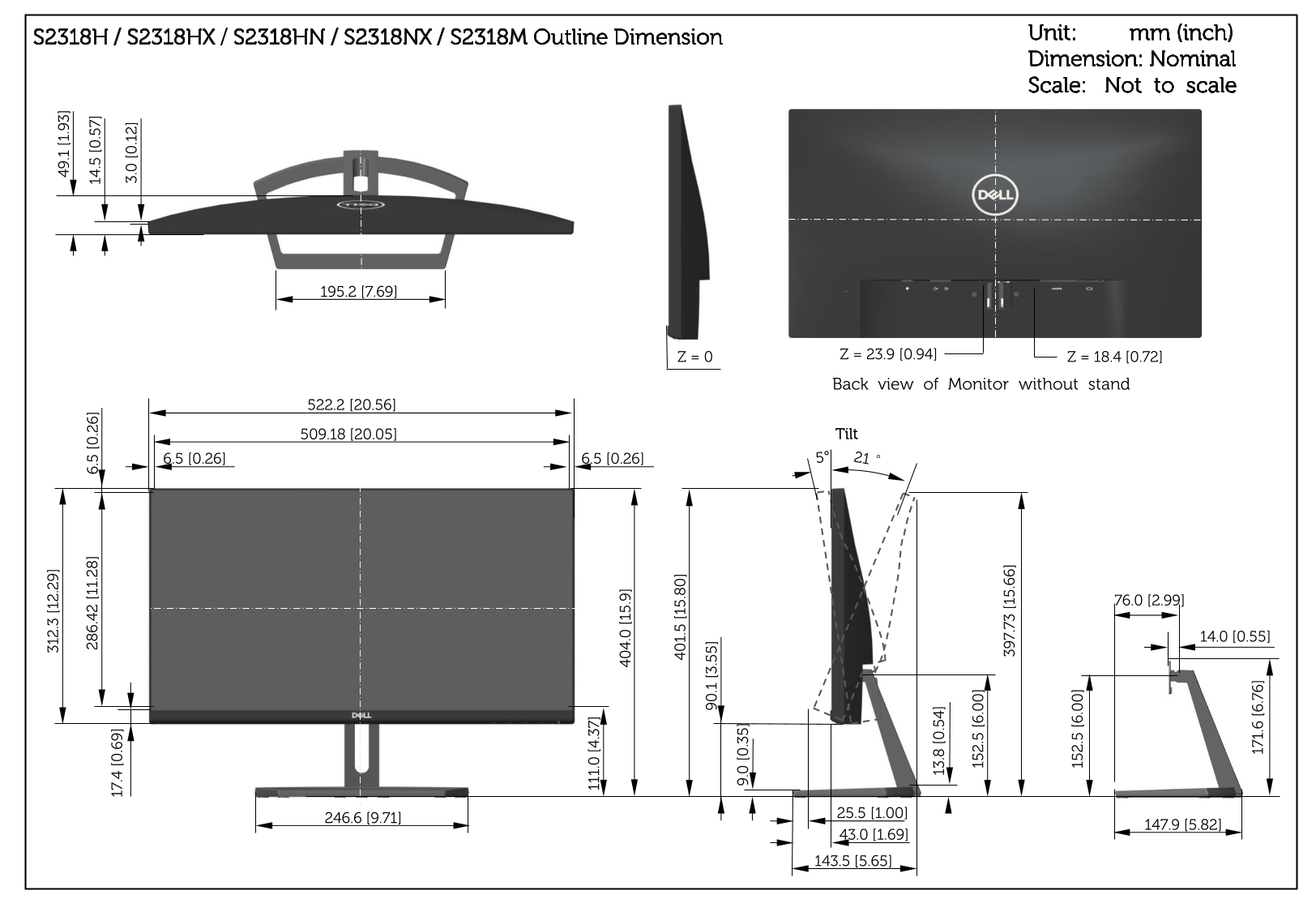

S2318H / S2318HX / S2318HN / S2318NX / S2318M Outline Dimension Unit: mm (inch)
.1 1. Dimension: Nominal Scale: Not to scale
Z = 0 Z = 23.9 [0.94] Z = 18.4 [0.72] Back view of Monitor without stand
509.18 [20.05] Tilt
