Dell S2240T Quick Reference Guide and User's Manual.
Summary

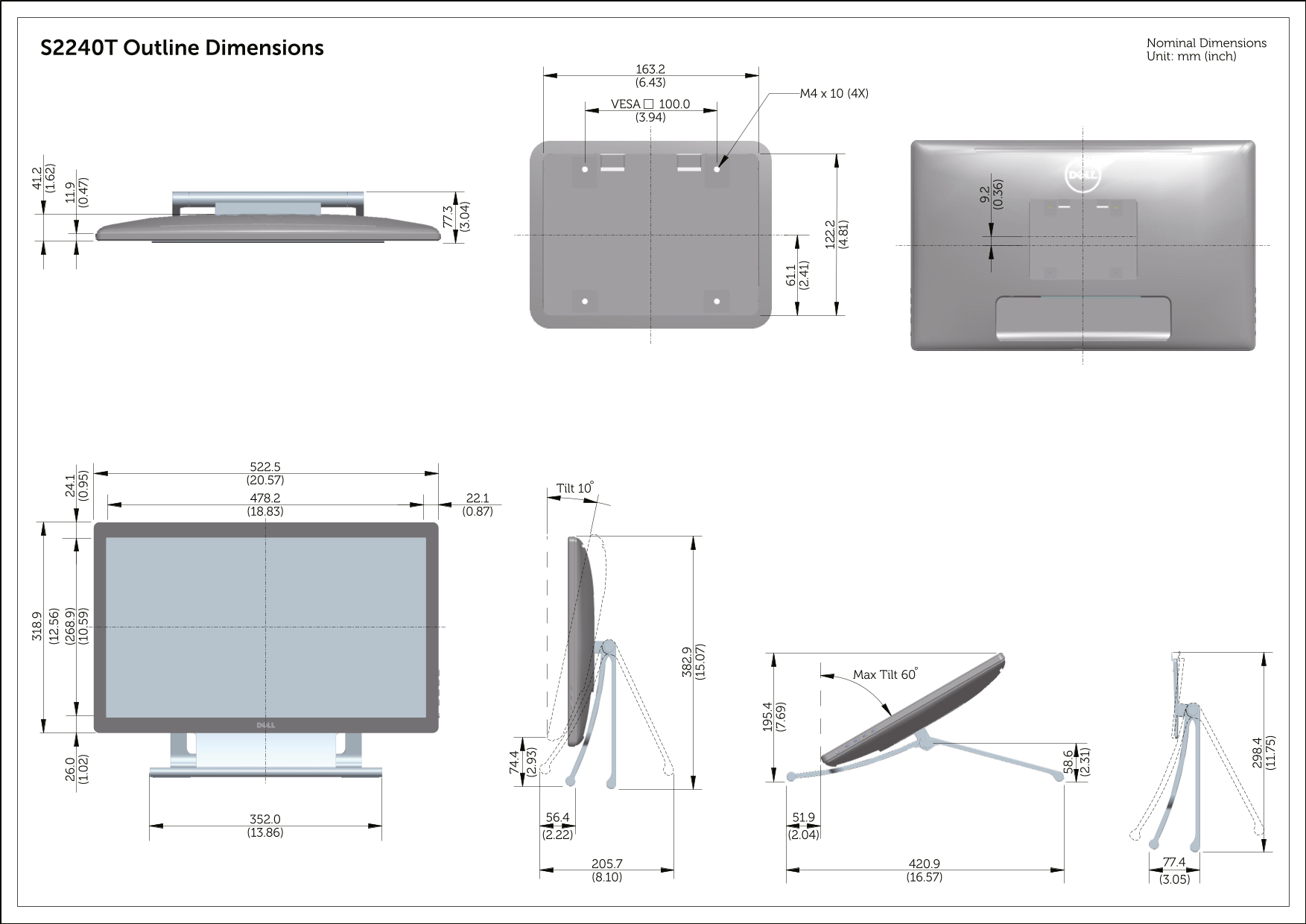

Dell S2240T touchscreen monitor outline dimension drawing showing nominal dimensions including VESA 100mm mounting pattern (4x M4x10), tilt range from 10° to 60° maximum, overall width 522.5mm, height 478.2mm, depth 205.7mm, and detailed side/top/rear measurement specifications in millimeters and inches.
Page 1 Text Content
Nominal Dimensions
S2240T Outline Dimensions (1 .6
(1 .5 6) Unit: mm (inch)
VESA 100.0 (3.94)
Tilt 10
Max Tilt 60
Page Summary Contents For Dell S2240T Quick Reference Guide and User's Manual.
Page 1
Nominal Dimensions S2240T Outline Dimensions (1 .6 (1 .5 6) Unit: mm (inch) VESA 100.0 (3.94) Tilt 10 Max Tilt 60
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 1.61 MB |
| Published | July 03, 2026 |
2 views
Enter the captcha to get the download link:
Frequently Asked Questions
What are the unit measurements used for the dimensions?
All nominal and outline dimensions are provided in millimeters (mm) and inches (")
How large is the mount's maximum tilt capability?
The mounting system supports a maximum tilt of 60 degrees.
Does this bracket include VESA compatibility options?
Yes, it supports a VESA mount with dimensions of 100.0 mm (3.94 inches).
What are the mounting hole specifications for hardware attachment?
The specified hardware attachment point is M4 x 10 mm (4X).
