This document provides the outline dimension drawing for the Dell S3221QS curved monitor, showing detailed physical measurements in millimeters and inches. It includes overall dimensions (709.2mm width, 518.1mm height with stand), curved display curvature specifications, tilt adjustment range, lift height, stand footprint, VESA mounting hole pattern, and detailed depth measurements at multiple points. Designed for workspace planners, IT procurement teams, and users needing precise dimensional data for 32-inch curved 4K monitor deployment.
Page 1 Text Content
Unit : mm(inch)

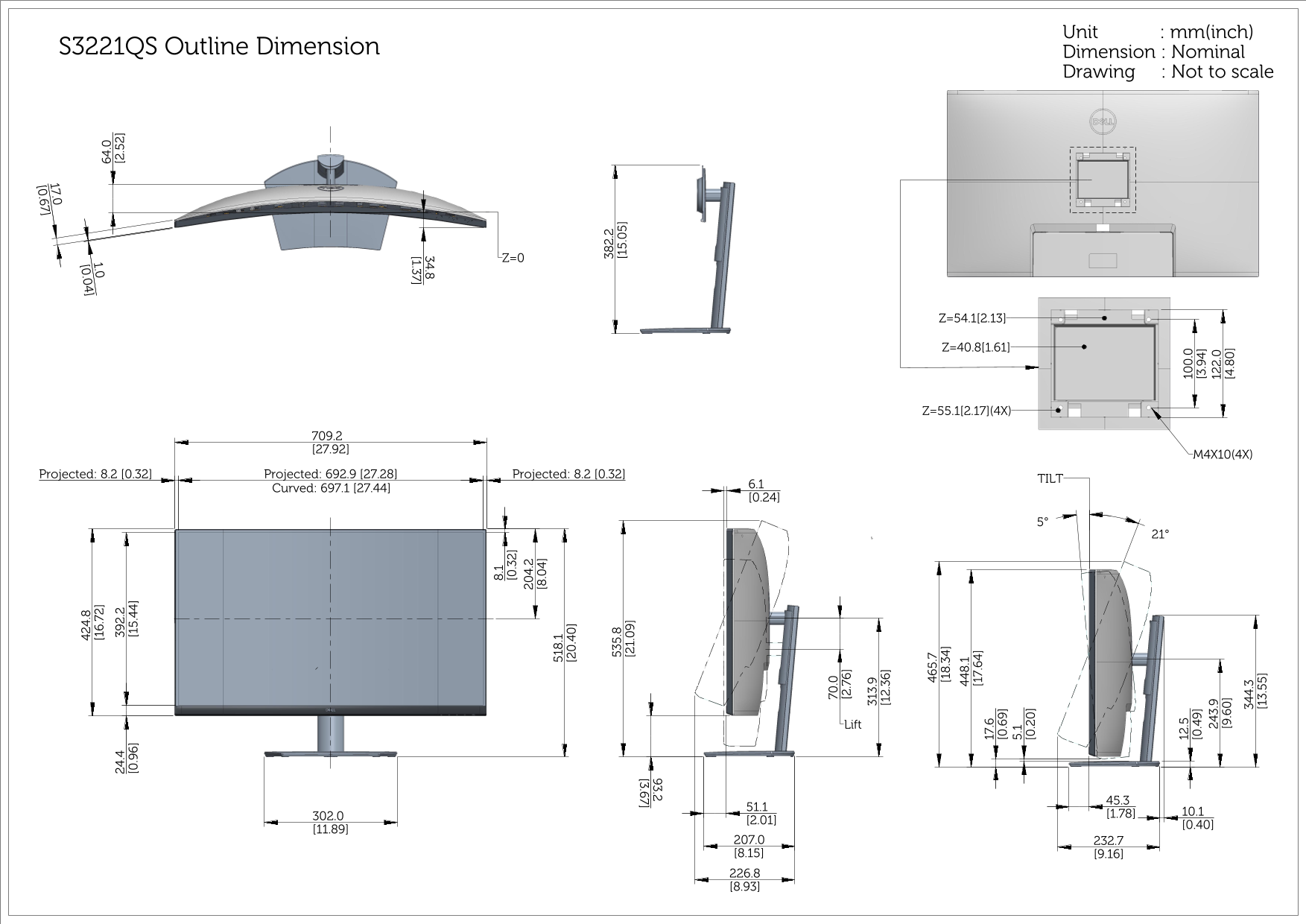

S3221QS Outline Dimension Dimension : Nominal
Drawing : Not to scale
Projected: 8.2 [0.32] Projected: 692.9 [27.28] Projected: 8.2 [0.32]
Curved: 697.1 [27.44]
Page Summary Contents For Dell S3221QS Monitor User Guide and Quick Reference
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 457.28 KB |
| Published | July 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the dimensions for model S3221QS?
The outline dimension is generally 709.2 mm (27.92 inches), with various projected measurements available throughout the drawing.
Does this unit specify different lifting or tilting angles?
Yes, the drawings include specifications for TILT at 5° and 21°, and a Lift measurement of 45.3 units.
What are the base mounting/fixing hole dimensions shown?
The drawing indicates M4X10(4X) and M4X10(4X) mounting points, suggesting four holes for hardware attachment.
