Dell S3221QS Monitor Specifications and User Guide
Summary
This document contains outline dimension specifications for the Dell S3221QS monitor, providing mechanical drawings in millimeters and inches. Includes screen dimensions, stand height adjustments, tilt angles from -5 to 21 degrees, curvature radius, and mounting hole patterns. Intended for product designers and installation professionals needing precise physical dimensions for mounting and workspace planning.
Page 1 Text Content
Unit : mm(inch)

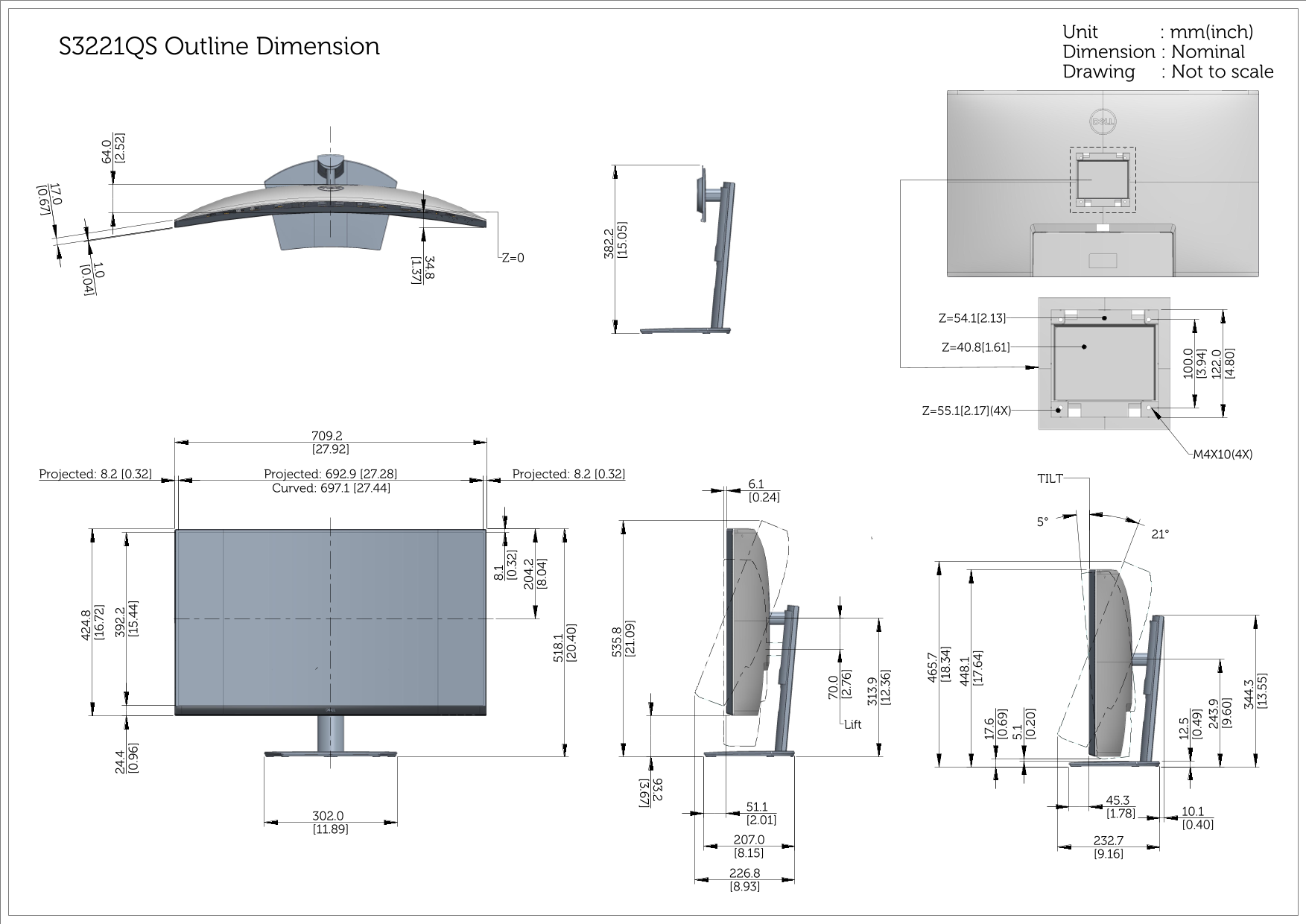

S3221QS Outline Dimension Dimension : Nominal
Drawing : Not to scale
Projected: 8.2 [0.32] Projected: 692.9 [27.28] Projected: 8.2 [0.32]
Curved: 697.1 [27.44]
Page Summary Contents For Dell S3221QS Monitor Specifications and User Guide
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 457.28 KB |
| Published | June 26, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the unit measurements for the provided dimensions?
The unit is specified as mm(inch).
What is the outline dimension Z=55.1 and what does it represent?
It measures 55.1 (2.17) in a set of four units.
What are the basic dimensions listed for projections?
The projected dimensions include 8.2 [0.32], 692.9 [27.28], and another 8.2 [0.32].
What is the total span shown near Z=424.8?
This area shows a dimension of 424.8 [16.72] with associated dimensions like M4X10(4X) and similar coordinates.
