Dell SE2018HL Monitor User Guide and Specifications
Summary
Mechanical outline dimension drawing for the Dell SE2018HL monitor display. Provides detailed physical measurements in millimeters and inches including overall dimensions, stand mounting specifications (M4x10 screws), tilt angles, and bezel dimensions. Intended for hardware engineers, industrial designers, and mounting solution developers who need precise dimensional data for physical integration and VESA mounting compatibility planning.
Page 1 Text Content

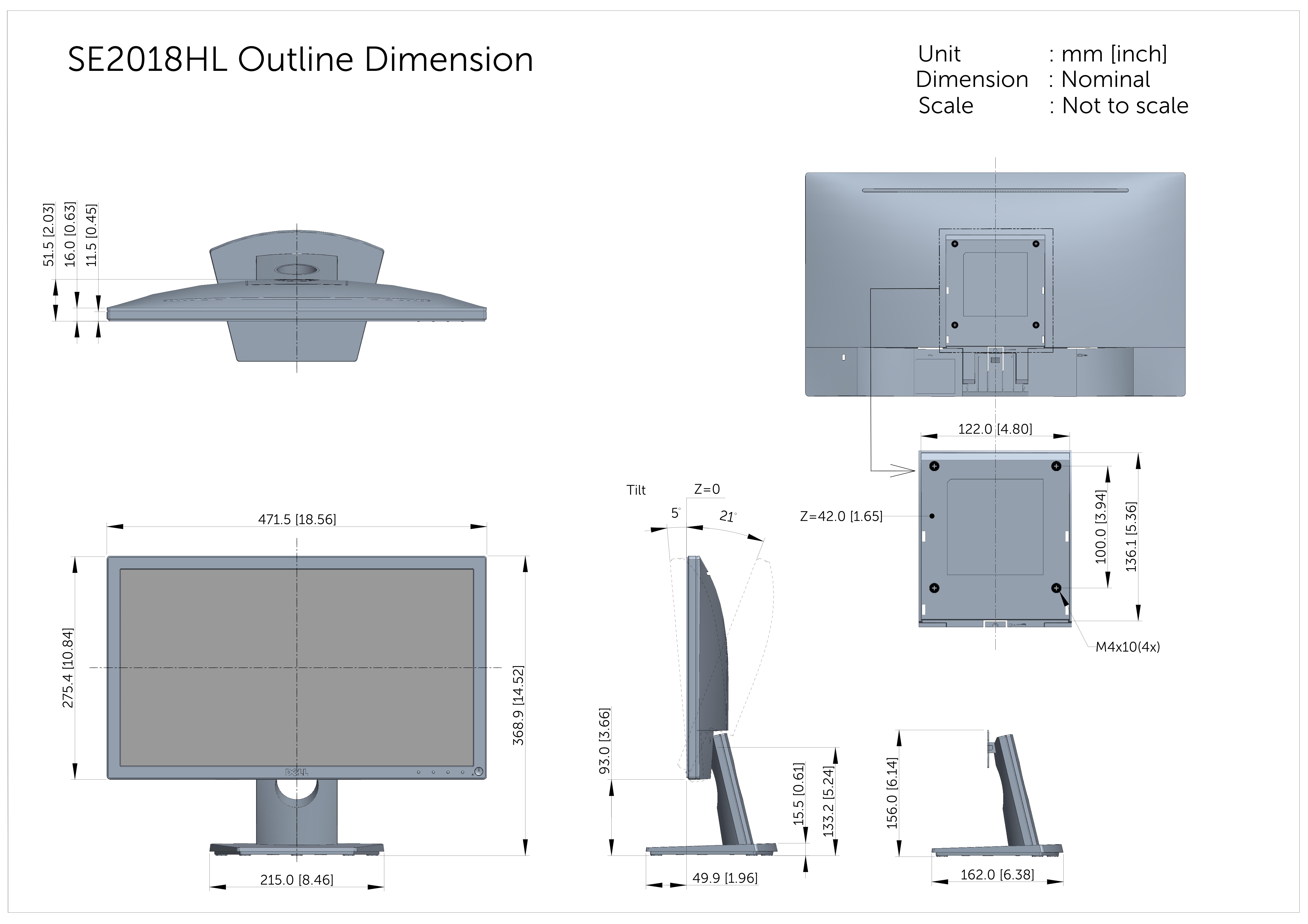

Unit : mm [inch] SE2018HL Outline Dimension Dimension : Nominal Scale : Not to scale 122.0 [4.80] Tilt Z=0 5~ Z=42.0 [1.65] 471.5 [18.56] M4x10(4x) 162.0 [6.38] 215.0 [8.46] 49.9 [1.96]
Page Summary Contents For Dell SE2018HL Monitor User Guide and Specifications
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 349.01 KB |
| Published | June 26, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the overall dimensions of the SE2018HL?
The outline dimension measurements are provided as lengths (e.g., 122.0 [4.80]), tilts, and various component sizes.
How is the unit secured to a surface?
It uses M4x10(4x) screws for mounting.
What specific dimensions must be adhered to when installing?
The manual provides multiple dimension points (e.g., 162.0 [6.38], 49.9 [1.96], 215.0 [8.46]), along with specified Z and Tilt values.
