Dell S2740L Monitor Specifications and User Guide
Summary
This document provides the outline dimension drawing for the Dell S2740L monitor, showing detailed physical measurements in millimeters and inches. It includes overall dimensions (641.9mm width, 467.5mm height with stand), tilt specifications, VESA mounting hole pattern with edge-to-edge cover glass design, stand footprint, display depth, and key measurement points. Designed for workspace planners, IT procurement teams, and users needing precise dimensional data for 27-inch monitor with glass-front design deployment.
Page 1 Text Content

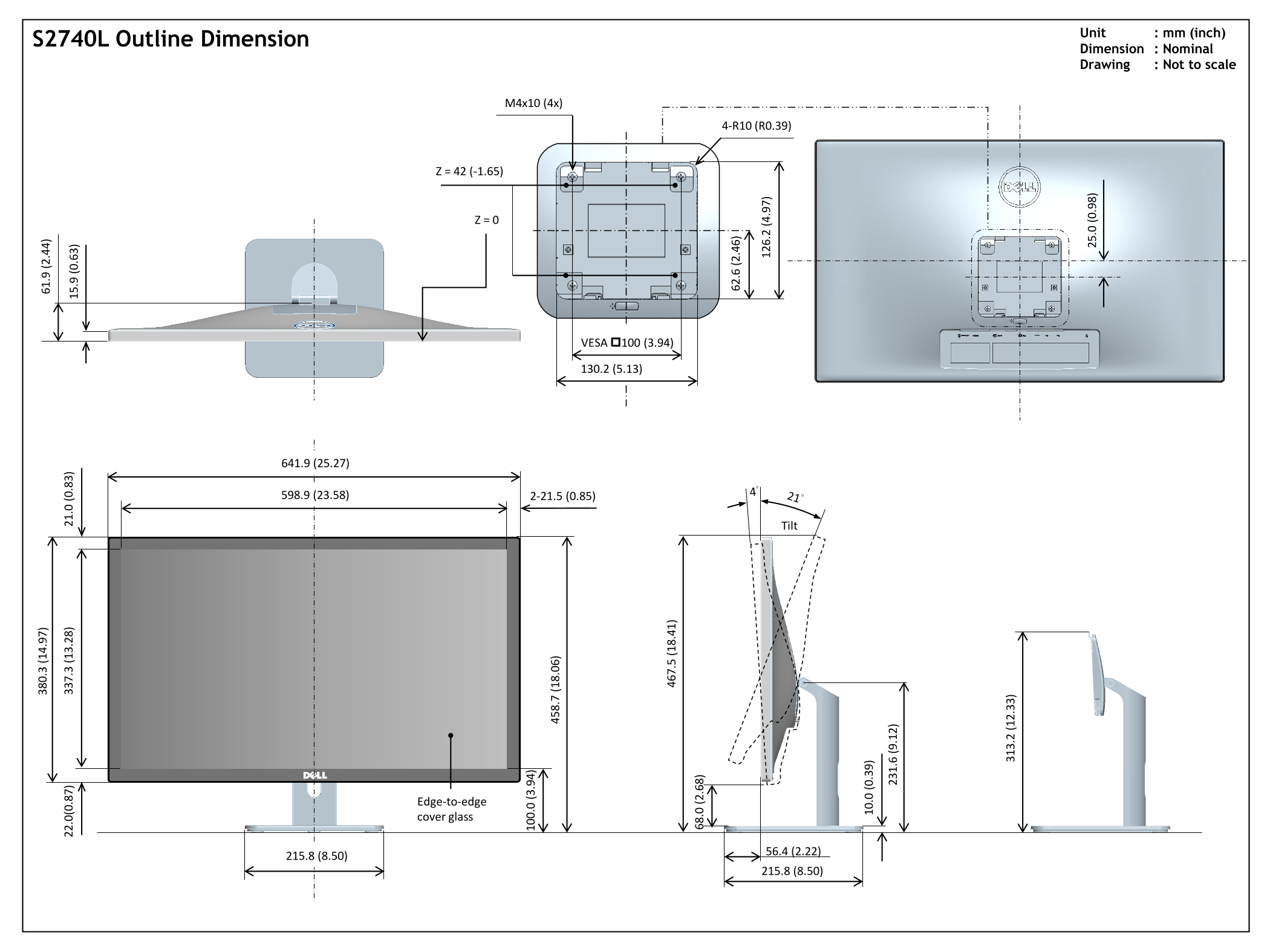

S2740L Outline Dimension Unit : mm (inch) .3 4.
Dimension : Nominal Drawing : Not to scale
VESA p100 (3.94)
Edge-to-edge cover glass
Page Summary Contents For Dell S2740L Monitor Specifications and User Guide
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 274.68 KB |
| Published | July 02, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the overall dimensions of the S2740L?
They are 641.9 mm (25.27 inches) wide, 598.9 mm (23.58 inches) deep, and 130.2 mm (5.13 inches) high.
Does the S2740L support VESA mounting?
The unit features a VESA p100 (3.94 inch) mount point.
What are the screw hole specifications for mounting?
It provides four M4x10 (4x) mounting points, with specific offsets listed by coordinates.
