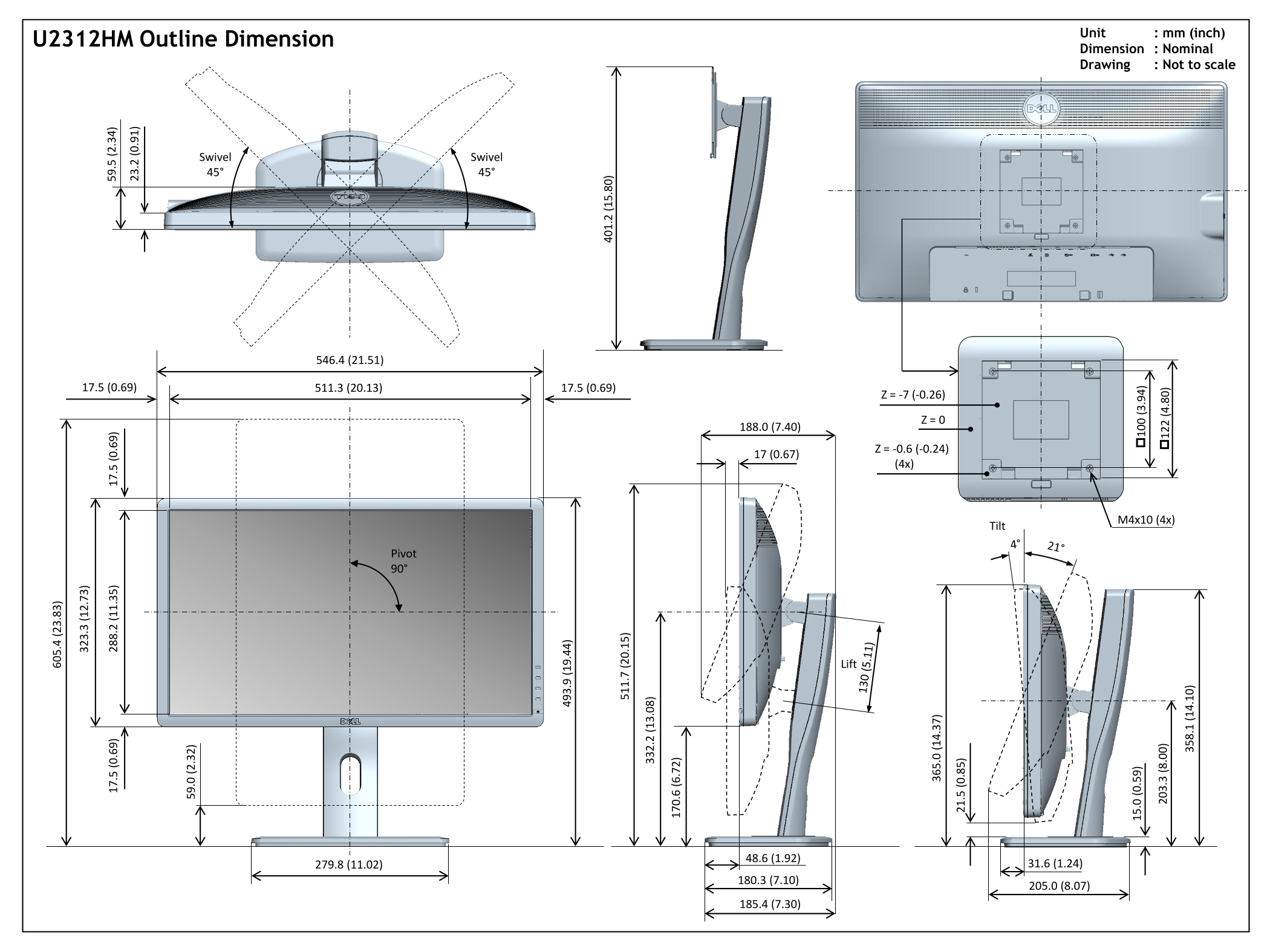

Dell U2312HM monitor outline dimension drawing showing physical measurements (mm and inches) including swivel range (±45°), tilt, pivot (90°), height adjustment, VESA mounting pattern (100mm), and full dimensional specifications with 4x M4x10 mounting screws for the 23-inch UltraSharp monitor.
Page 1 Text Content
Unit : mm (inch)
U2312HM Outline Dimension
Dimension : Nominal
Drawing : Not to scale
Swivel Swivel 45° 45°5 .0 .3
Pivot
