Unit : mm (inch)

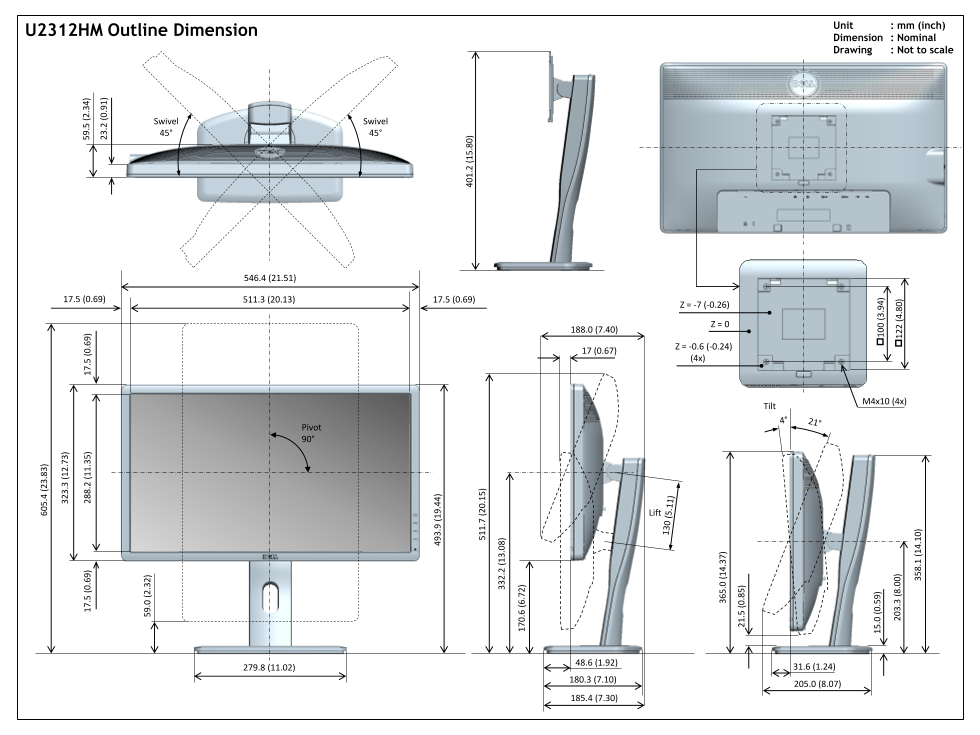

U2312HM Outline Dimension
Dimension : Nominal
Drawing : Not to scale
Swivel Swivel 45° 45°5 .0 .3
Pivot
