Dell S2318H/S2318HX Contour Diagram User's Manual
Summary
View detailed engineering drawings and precise dimensional specifications for professional monitors. This technical manual provides complete outlines, stand dimensions, and accurate measurements in both millimeters and inches across multiple models. Essential for system integrators, engineers, and product designers who require exact physical parameters for installation planning, mounting hardware development, or CAD modeling.
Page 1 Text Content

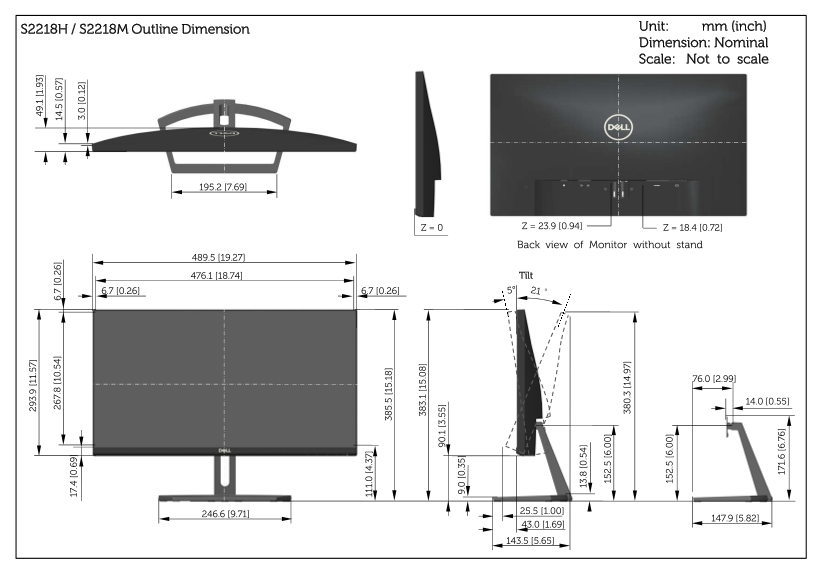

S2218H / S2218M Outline Dimension Unit: mm (inch)
Dimension: Nominal
.8 .5 .7 .2 .5 .5 Scale: Not to scale
Back view of Monitor without stand
476.1 [18.74] Tilt
Page Summary Contents For Dell S2318H/S2318HX Contour Diagram User's Manual
Manual Details
| Brand | Contour |
|---|---|
| Pages | 2 |
| File Size | 198.90 KB |
| Published | May 28, 2026 |
