Dell U2312HM Monitor Outline Drawing User's Guide
Summary

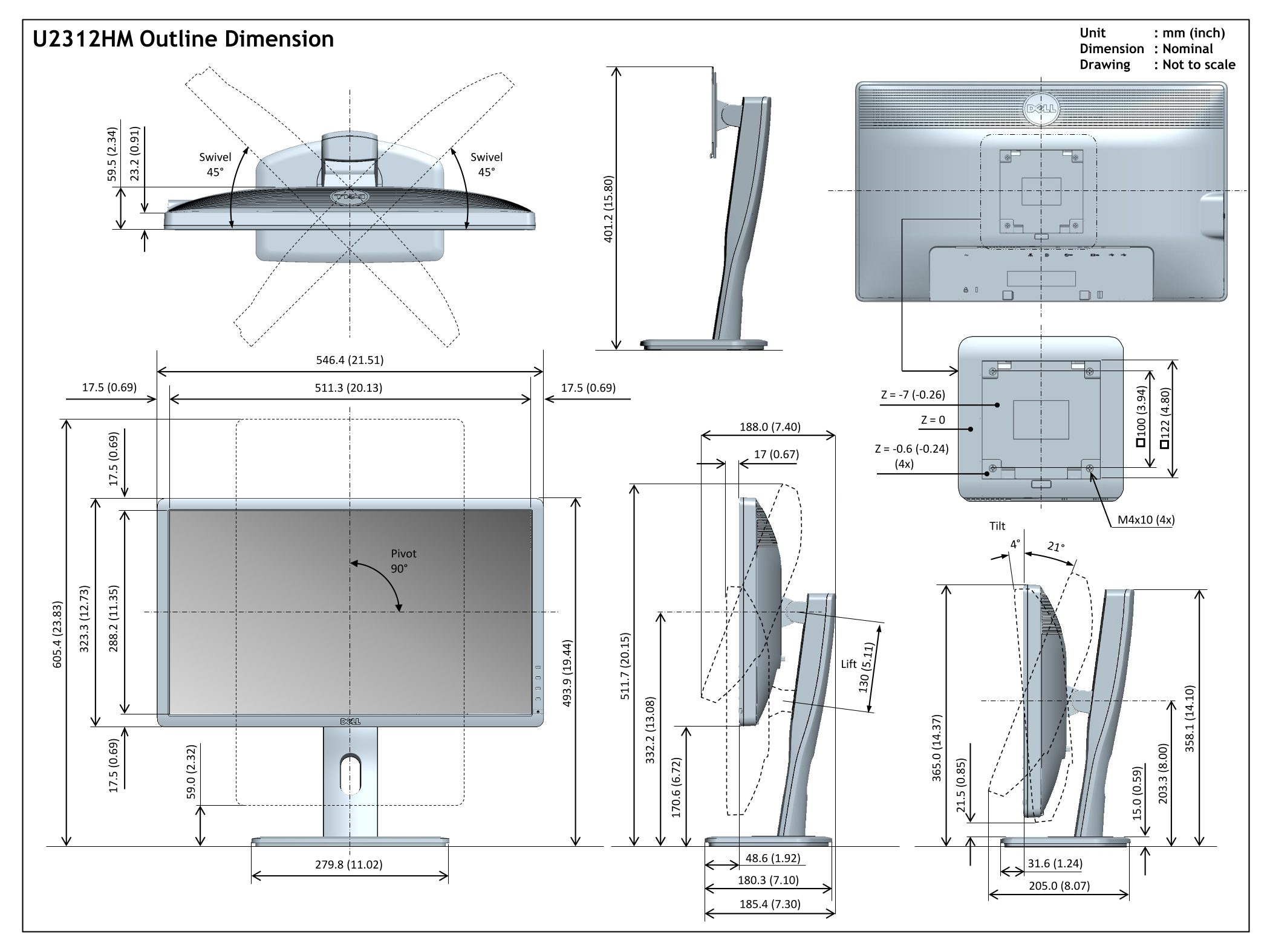

Technical mechanical drawing for Dell U2312HM monitor showing outline dimensions in millimeters and inches. Includes display panel, stand assembly, swivel range, tilt, pivot, lift adjustment, and VESA mounting specifications. Target users are system integrators and deployment planners requiring exact physical dimensions.
Page 1 Text Content
Unit : mm (inch)
U2312HM Outline Dimension
Dimension : Nominal
Drawing : Not to scale
Swivel Swivel 45° 45°5 .0 .3
Pivot
Page Summary Contents For Dell U2312HM Monitor Outline Drawing User's Guide
Page 1
Unit : mm (inch) U2312HM Outline Dimension Dimension : Nominal Drawing : Not to scale Swivel Swivel 45° 45°5 .0 .3 Pivot
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 400.47 KB |
| Published | June 26, 2026 |
