Dell S2230MX Monitor Outline Drawing
Summary
This document contains the outline dimension drawings for Dell S2230MX and S2330MX monitors. It provides nominal measurements in millimeters and inches, detailing the physical specifications including width, height, depth, stand dimensions, and mounting specifications for both monitor models. This technical drawing is intended for product designers, furniture planners, and system integrators who need precise physical specifications for space planning and mounting solutions.
Page 1 Text Content
Unit : mm (inch)

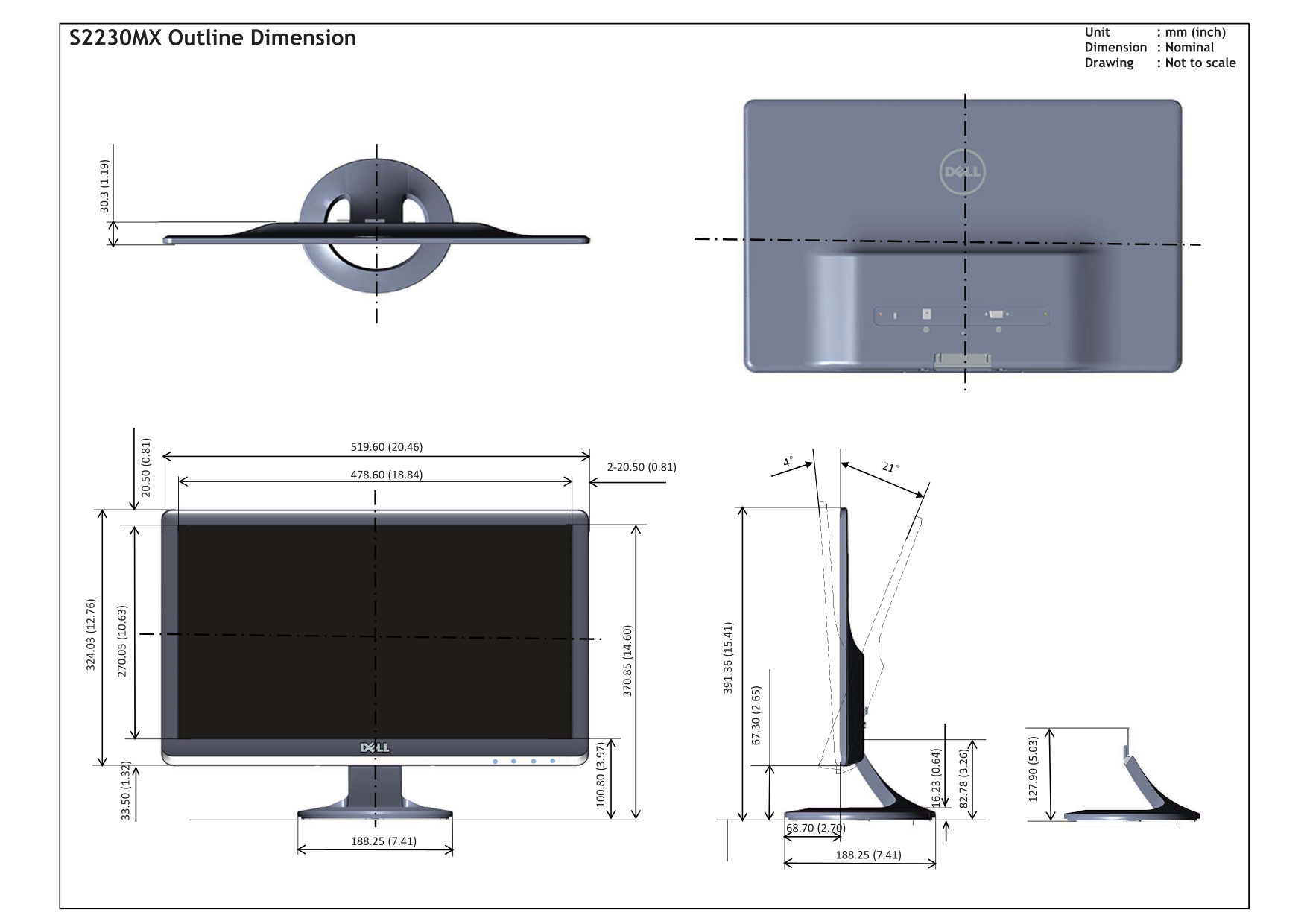

S2230MX Outline Dimension
Dimension : Nominal Drawing : Not to scale
