Dell S2721HGF Monitor Outline Drawing
Summary
Technical drawing showing the outline dimensions of the Dell S2721HGF curved gaming monitor, with measurements in millimeters and inches. The drawing includes specifications for width, height, depth, tilt and lift ranges, curvature radius, and VESA mounting hole patterns. Target users include gaming enthusiasts and system builders requiring precise physical measurements for desk setup and mounting configurations.
Page 1 Text Content

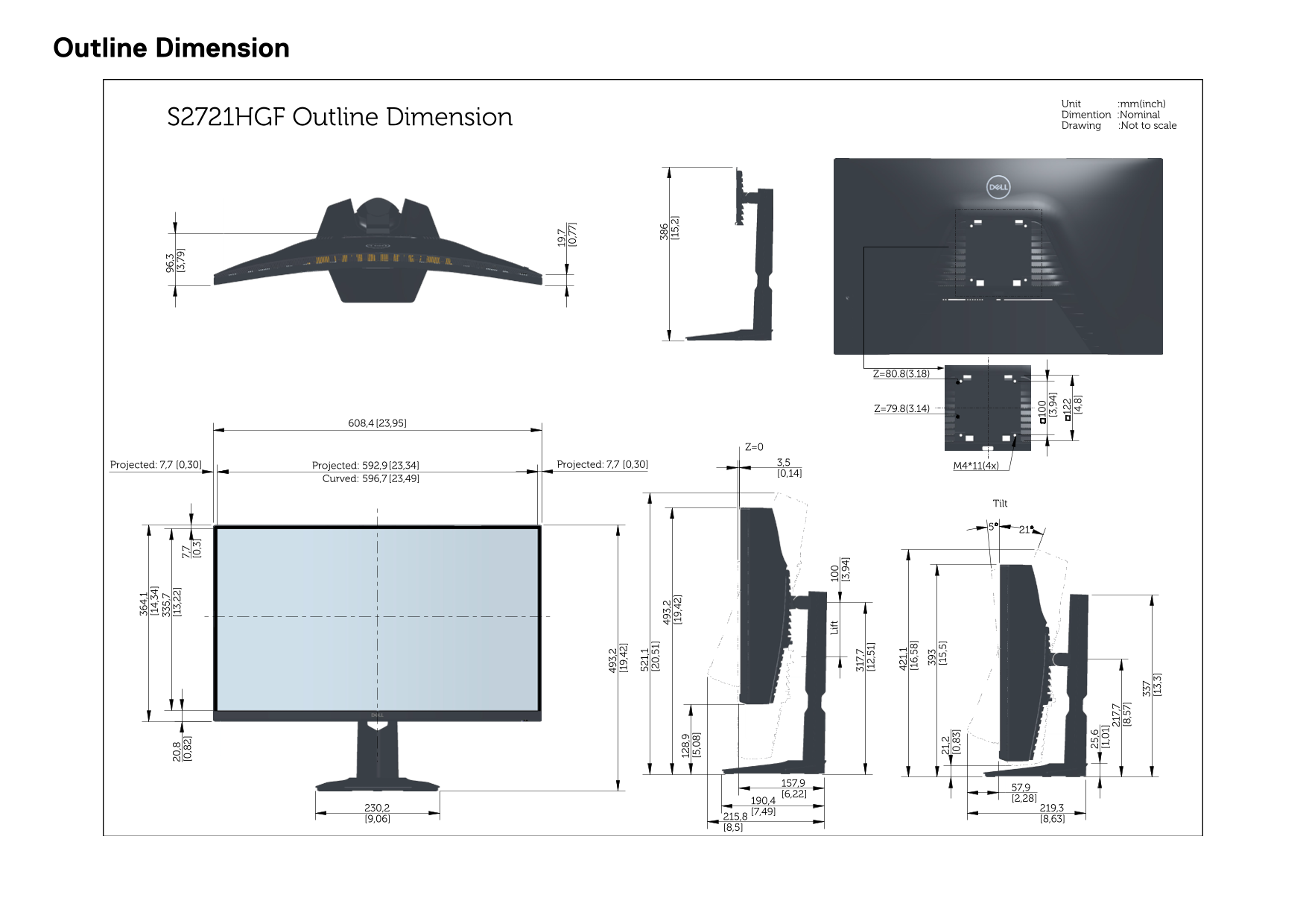

Outline Dimension
Unit :mm(inch) Dimention :Nominal
S2721HGF Outline Dimension
Drawing :Not to scale
Z=0 7,7 [0,30]Projected: Projected: 592,9 [23,34] Projected: 7,7 [0,30] 3,5
Curved: 596,7 [23,49]
Li ft
