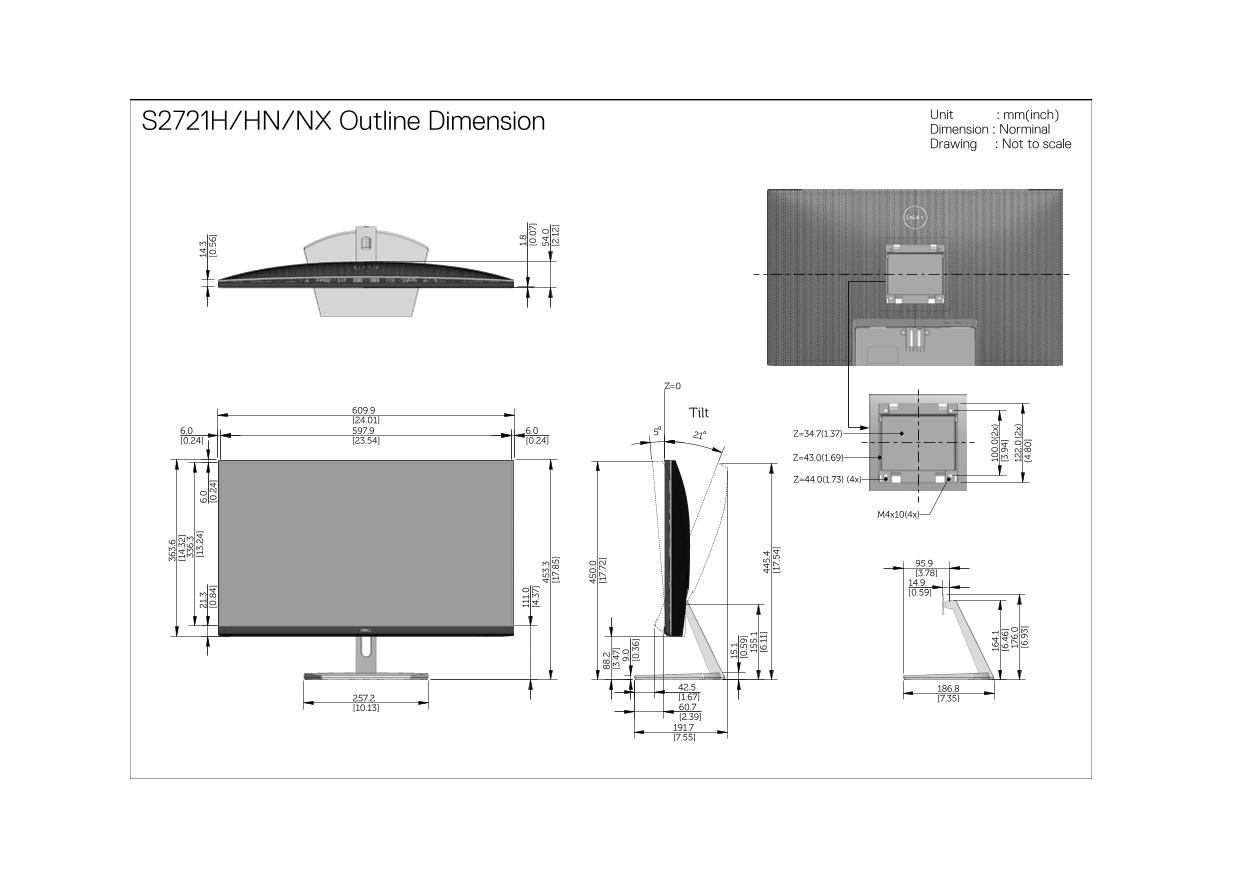

Mechanical outline dimension drawing for Dell S2721H/HN/NX 27-inch monitors. Provides measurements in millimeters and inches for the monitor housing, stand, tilt range, VESA mount interface, and cable management. Includes dimensional callouts for width, height, depth, bezel, and mounting hole patterns. Intended for industrial designers and mounting accessory manufacturers requiring exact physical specifications.
Page 1 Text Content
Unit : mm(inch)
S2721H/HN/NX Outline Dimension Dimension : Norminal
Drawing : Not to scale
609.9 Tilt [24.01]
Page Summary Contents For Dell S2721H Monitor Outline Drawing Owner'
Page 1
Unit : mm(inch) S2721H/HN/NX Outline Dimension Dimension : Norminal Drawing : Not to scale 609.9 Tilt [24.01]
