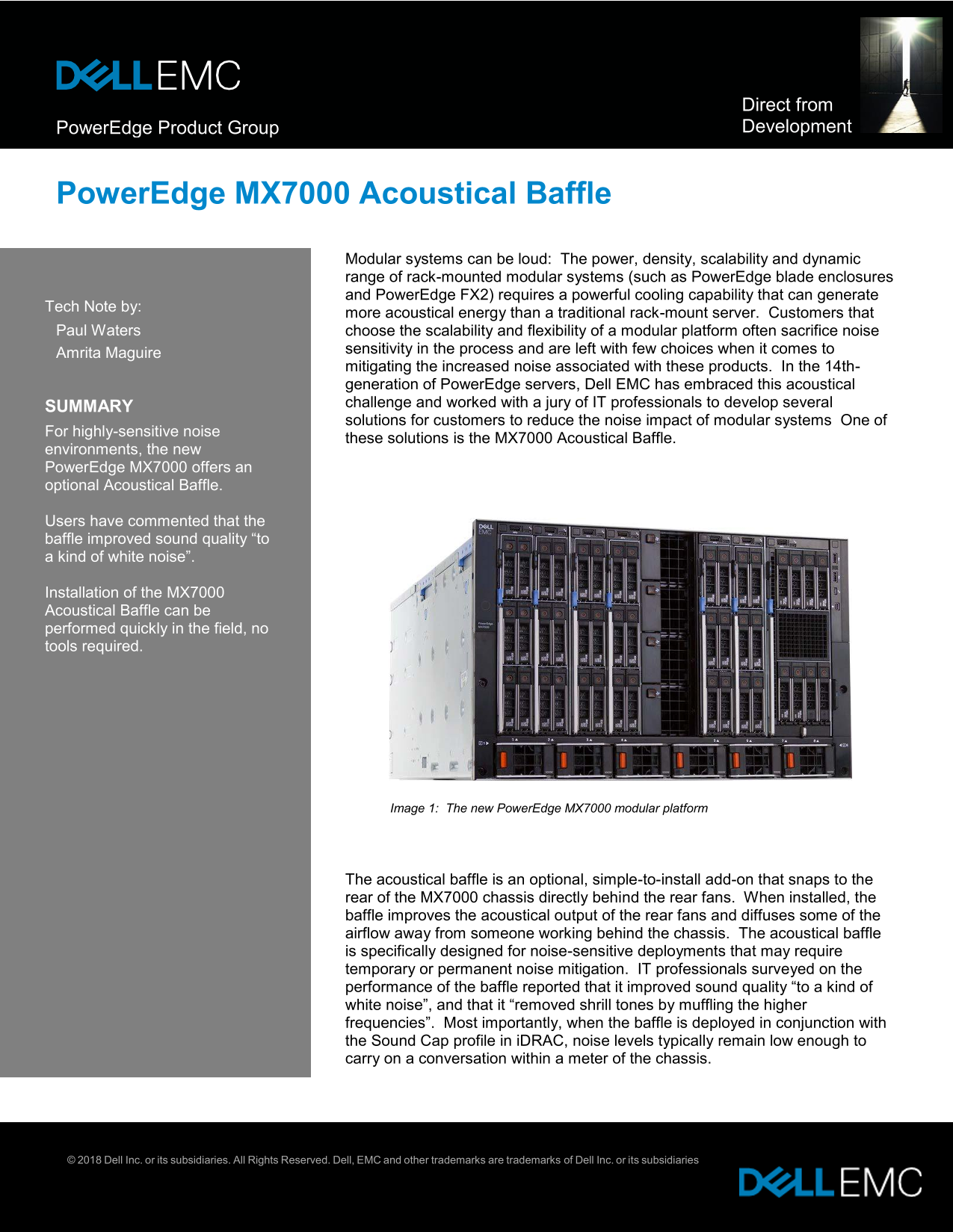

Page 1 Text Content
Direct from Power Edge Product Group Development
Power Edge MX7000 Acoustical Baffle
Modular systems can be loud: The power, density, scalability and dynamic range of rack-mounted modular systems (such as Power Edge blade enclosures and Power Edge FX2) requires a powerful cooling capability that can generate
Tech Note by:
more acoustical energy than a traditional rack-mount server. Customers that
Paul Waters choose the scalability and flexibility of a modular platform often sacrifice noise
sensitivity in the process and are left with few choices when it comes to
Amrita Maguire
mitigating the increased noise associated with these products. In the 14th- generation of Power Edge servers, Dell EMC has embraced this acoustical challenge and worked with a jury of IT professionals to develop several
SUMMARY
solutions for customers to reduce the noise impact of modular systems One of
For highly-sensitive noise
these solutions is the MX7000 Acoustical Baffle.
environments, the new Power Edge MX7000 offers an optional Acoustical Baffle.
Users have commented that the baffle improved sound quality “to a kind of white noise”.
Installation of the MX7000 Acoustical Baffle can be performed quickly in the field, no tools required.
Image 1: The new Power Edge MX7000 modular platform
The acoustical baffle is an optional, simple-to-install add-on that snaps to the rear of the MX7000 chassis directly behind the rear fans. When installed, the baffle improves the acoustical output of the rear fans and diffuses some of the airflow away from someone working behind the chassis. The acoustical baffle is specifically designed for noise-sensitive deployments that may require temporary or permanent noise mitigation. IT professionals surveyed on the performance of the baffle reported that it improved sound quality “to a kind of white noise”, and that it “removed shrill tones by muffling the higher frequencies”. Most importantly, when the baffle is deployed in conjunction with the Sound Cap profile in i DRAC, noise levels typically remain low enough to carry on a conversation within a meter of the chassis.
© 2018 Dell Inc. or its subsidiaries. All Rights Reserved. Dell, EMC and other trademarks are trademarks of Dell Inc. or its subsidiaries
Page Summary Contents For Dell PowerEdge MX7000 Acoustical Baffle Specifications User Guide
Manual Details
| Brand | Dell |
|---|---|
| Pages | 2 |
| File Size | 510.72 KB |
| Published | June 22, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How difficult is it to install the Acoustical Baffle?
Installation is simple and quick in the field, requiring no tools. It snaps onto the rear of the MX7000 chassis behind the fans.
Does the baffle only reduce noise or also improve sound quality?
It improves sound quality by muffling higher frequencies, which users have noted helps make the background operational noise resemble a kind of white noise.
Are there any systems I should not use this baffle on?
You shouldn't use it for systems where the CPU TDP is greater than 140W, or in environments warmer than 35°C, as performance may be impacted in these conditions.
Is this accessory designed or safe to use for cable management?
No, the baffle is not a cable management tool and cannot support the weight of cables. You must never affix or lay cables on it.
