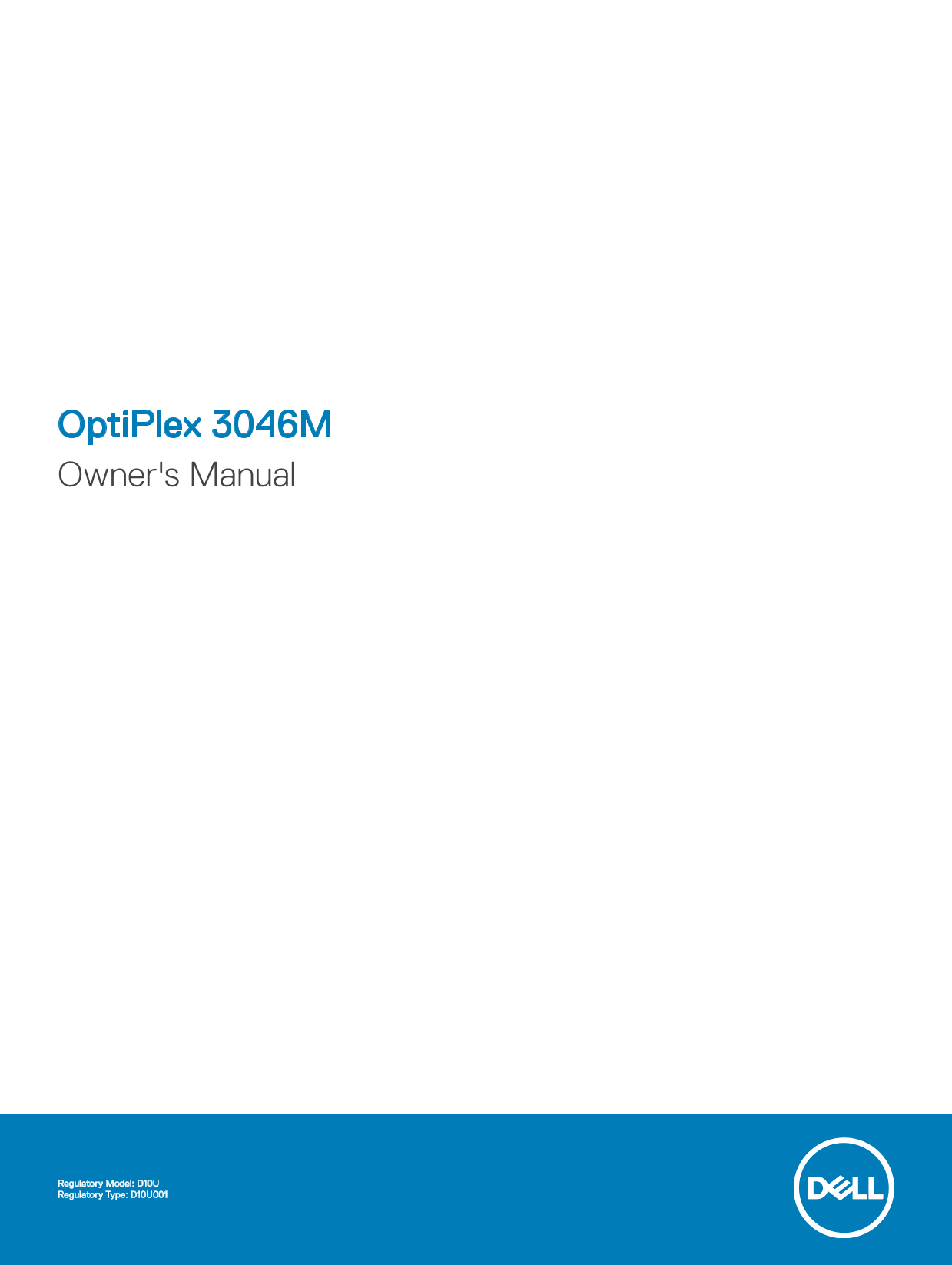

Opti Plex 3046M Owner's Manual
Regulatory Model: D10U Regulatory Type: D10U001
Page Summary Contents For Dell OptiPlex 3046M Owner's Manual
Page 1
Opti Plex 3046M Owner's Manual Regulatory Model: D10U Regulatory Type: D10U001
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates either potential damage to hardware or loss of ...
Page 3
Contents 1 Working on your computer............................................................................................................................. Before working inside your computer.......
Page 4
System Setup options..................................................................................................................................................... Updating the BIOS ...............
Page 5
Working on your computer Before working inside your computer To avoid damaging your computer, perform the following steps before you begin working inside the computer. 1 Ensure that your work surface ...
Page 6
Removing and installing components This section provides detailed information on how to remove or install the components from your computer. Recommended tools The procedures in this document require t...
Page 7
Removing the hard drive assembly 1 Follow the procedure in Before Working Inside Your Computer. 2 Remove the cover. 3 To remove the hard drive assembly: Press the blue tabs on both sides of the hard d...
Page 8
Installing the hard drive into the hard drive bracket 1 Align and insert the pins on the hard drive bracket with the slots on one side of the hard drive. 2 Flex the other side of the hard drive bracke...
Page 9
Installing the VGA board 1 Align and insert the VGA connector into the slot on the computer. 2 Tighten the screws to secure the VGA board to the computer. 3 Connect the VGA board cable to the connecto...
Page 10
Installing the system fan 1 Connect the speaker cable and system fan cable to the connectors on the system board. 2 Place the system fan on the computer and slide the system fan until it clicks into p...
Page 11
Removing the heat sink 1 Follow the procedure in Before Working Inside Your Computer. 2 Remove the: cover hard drive assembly system fan 3 To remove the heat sink: Loosen the captive screws that secur...
Page 12
CAUTION: The processor socket pins are fragile and can be permanently damaged. Be careful not to bend the pins in the processor socket when removing the processor out of the socket. Lift the processor...
Page 13
Installing the speaker 1 Align the slots on the speaker with the slots on the system fan. 2 Tighten the screws to secure the speaker to the system fan. 3 Route the speaker cable through the retention ...
Page 14
3 Install the: VGA board hard drive assembly cover 4 Follow the procedure in After Working Inside Your Computer. Removing the system board 1 Follow the procedure in Before Working Inside Your Computer...
Page 15
Installing the system board 1 Hold the system board by its edges and angle it toward the back of the computer. 2 Lower the system board into the computer until the connectors at the back of the system...
Page 16
System board layout Processor 2 CPU fan connector Internal speaker connector Memory module connectors USB 3.0 connector Intrusion switch USB 3.0 connector Line out connector Universal audio jack M.2 s...
Page 17
List of compatible monitor models Table 1. Models for E-plate, PUZ-plate, and U-plate Behind Monitor Mounts E-series Monitor Mount Not Supported E1715S P1914S Supports all monitor E1916H S2240T models...
Page 18
Behind Monitor Mounts E-series Monitor Mount Not Supported U2417HJ U2417HWi UP2414Q UP2715K UP3214Q UP3216Q UZ2215H UZ2315H UZ2715H UP2516D UP2716D UP3017 List of compatible monitor models
Page 19
Troubleshooting your computer You can troubleshoot your computer using indicators like diagnostic lights, beep codes, and error messages during the operation of the computer. Diagnostic power LED code...
Page 20
Power LED light status Possible cause Troubleshooting steps If the display is connected and turned on, listen for a beep code. Diagnostic error messages Table 3. Diagnostic error messages Error messag...
Page 21
Error messages Description HARD-DISK DRIVE CONTROLLER FAILURE 0 The hard drive does not respond to commands from the computer. Shut down the computer, remove the hard drive, and boot the computer from...
Page 22
Error messages Description MEMORY WRITE/READ FAILURE AT ADDRESS, READ A memory module may be faulty or improperly seated. Reinstall the VALUE EXPECTING VALUE memory module or, if necessary, replace it...
Page 23
System error messages Table 4. System error messages System message Description Alert! Previous attempts at booting this system The computer failed to complete the boot routine three consecutive have ...
Page 24
System Setup System Setup enables you to manage your computer hardware and specify BIOS level options. From the System Setup, you can: Change the NVRAM settings after you add or remove hardware View t...
Page 25
Keys Navigation Down arrow Moves to the next field. Enter Selects a value in the selected field (if applicable) or follow the link in the field. Spacebar Expands or collapses a drop‐down list, if appl...
Page 26
Option Description Device Information: Displays SATA-0, LOM MAC Address, Video Controller, Audio Controller, Wi-Fi Device, and Bluetooth Device. Boot Sequence Allows you to specify the order in which ...
Page 27
Option Description Audio Allows you to enable or disable the integrated audio controller. Enable Microphone Enable Internal Speaker Both the options are enabled by default. Miscellaneous Devices Allow...
Page 28
Option Description Enabled (default) Computrace This field lets you Activate or Disable the BIOS module interface of the optional Computrace Service from Absolute Software. Enables or disables the opt...
Page 29
Option Description Delete All Keys- Deletes all the keys NOTE: If you disable the Custom Mode, all the changes made will be erased and the keys will restore to default settings. Table 10. Intel Softwa...
Page 30
Option Description Enabled in S5 only Enabled in S4 and S5 This option is Disabled by default. USB Wake Support Allows you to enable the USB devices to wake the computer from standby mode. Wake on LAN...
Page 31
Table 15. Wireless Option Description Wireless Device Enable Allows you to enable or disable the internal wireless devices. All the options are enabled by default. Table 16. Maintenance Option Descrip...
Page 32
Table 18. System Logs Option Description BIOS Events Displays the system event log and allows you to: Clear Log Mark all Entries Table 19. Advanced configurations Option Description ASPM Allows you to...
Page 33
Password type Description System password Password that you must enter to log on to your system. Setup password Password that you must enter to access and make changes to the BIOS settings of your com...
Page 34
NOTE: If you change the System and/or Setup password, re-enter the new password when promoted. If you delete the System and/or Setup password, confirm the deletion when promoted. 5 Press Esc and a mes...
Page 35
Specifications NOTE: Offerings may vary by region. For more information regarding the configuration of your computer in: Windows 10, click or tap Start > Settings > System > About. Windows 8....
Page 36
Table 23. Audio Feature Specification Integrated Realtek HDA Codec ALC3234 Table 24. Network Feature Specification Integrated Realtek 8111HSD Table 25. System information Feature Specification System ...
Page 37
Feature Specification Line out connector Network adapter RJ-45 connector Serial PS2 and serial connector (optional) USB 2.0 (front/back/internal) 0/2/1 USB 3.0 (front/back/internal) 2/2/0 Video 15-pin...
Page 38
Table 32. Physical dimension Physical Micro Premier Height 18.2 cm (7.2 inches) Width 3.6 cm (1.4 inches) Depth 17.6 cm (7 inches) Weight 1.41 kg (3.12 lb) Table 33. Environmental Feature Specificatio...
Page 39
Contacting Dell NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog. Dell provides several on...
