Dell OptiPlex 3040 Mini Tower Owner's Manual
Summary
This user guide provides comprehensive documentation for the product. The document includes detailed information about setup, configuration, operation, and maintenance of the desktop. It covers key features, specifications, installation procedures, troubleshooting steps, and best practices. The manual is designed for system administrators, IT professionals, and end users who need to deploy, manage, or operate the equipment effectively. Readers will find step-by-step instructions, technical diagrams, safety information, and reference materials to ensure proper usage and optimal performance.
Page 1 Text Content
Opti Plex 3040 - Mini Tower Owner's Manual
Regulatory Model: D18M Regulatory Type: D18M002
Page Summary Contents For Dell OptiPlex 3040 Mini Tower Owner's Manual

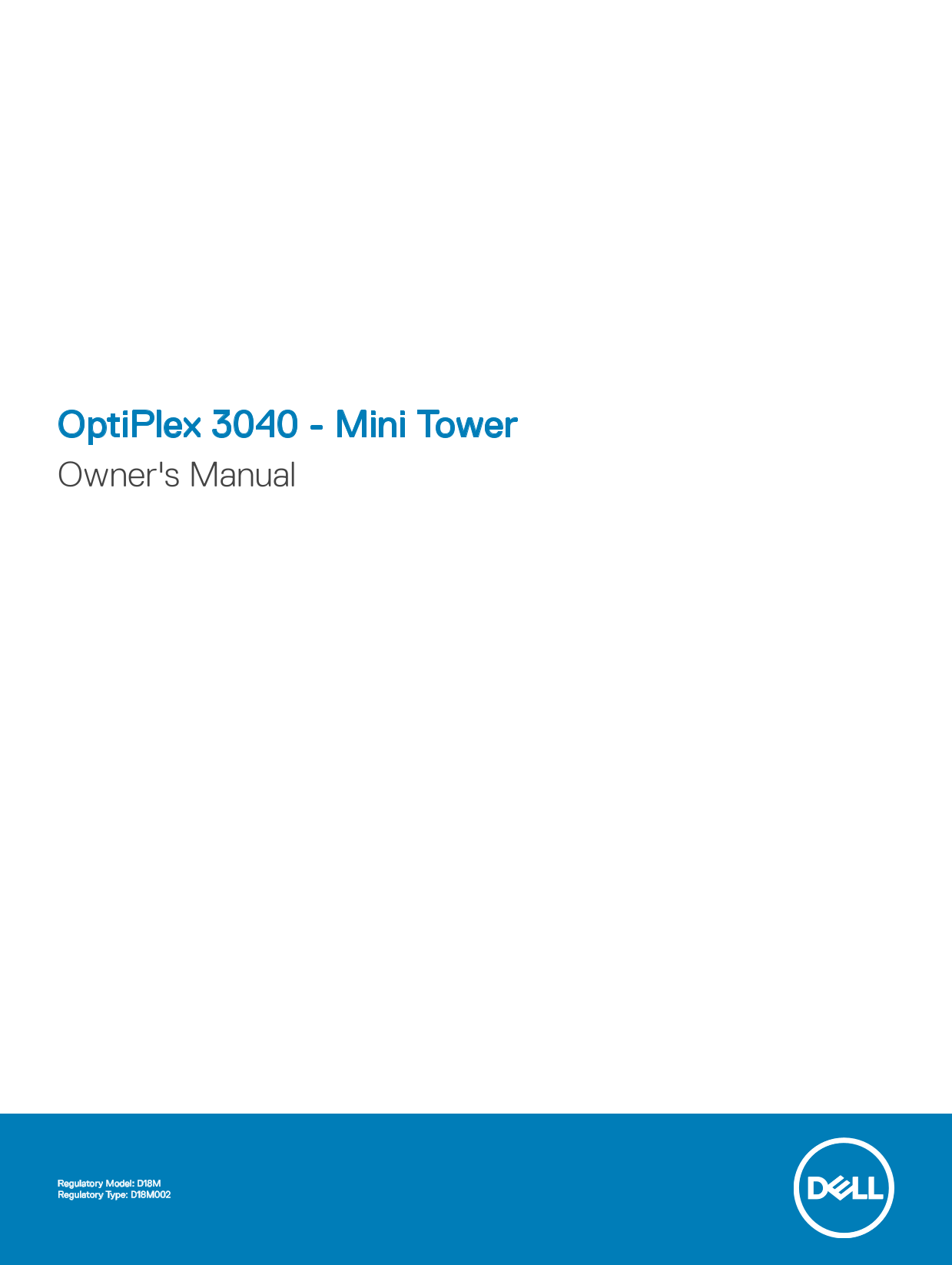

Page 1
Opti Plex 3040 - Mini Tower Owner's Manual Regulatory Model: D18M Regulatory Type: D18M002
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates either potential damage to hardware or loss of ...
Page 3
Contents 1 Working on your computer............................................................................................................................. Before working inside your computer.......
Page 4
Installing the processor.................................................................................................................................................... Removing the system fan.......
Page 5
Working on your computer Before working inside your computer Use the following safety guidelines to help protect your computer from potential damage and to help to ensure your personal safety. Unless ...
Page 6
Turning off your computer CAUTION: To avoid losing data, save and close all open files and exit all open programs before you turn off your computer. 1 Turning off your computer: In Windows 10 (using a...
Page 7
Removing and installing components This section provides detailed information on how to remove or install the components from your computer. Recommended tools The procedures in this document require t...
Page 8
Remove the front bezel from the computer. Installing the bezel 1 Insert the tabs on the bezel into the slots on the computer. 2 Press the bezel until the tabs clicks into place. 3 Install the cover. 4...
Page 9
CAUTION: The front bezel door opens only to a limited extent. See the printed label for the maximum permissible level. Removing the hard drive assembly 1 Follow the procedure in Before Working Inside ...
Page 10
Installing the hard drive into the hard drive bracket 1 Align and insert the pins on the hard drive bracket with the slots on one side of the hard drive. 2 Flex the other side of the hard drive bracke...
Page 11
Installing the slim optical drive 1 Insert the optical drive into the optical drive bay until it clicks into place. 2 Open the front bezel door. 3 Connect the data cable and power cable to the connect...
Page 12
Removing the SD card reader 1 Follow the procedure in Before Working Inside Your Computer. 2 Remove the: cover bezel 3 Open the front bezel door. 4 To remove the SD card reader: Disconnect the SD card...
Page 13
Installing the memory module 1 Align the notch on the memory module with the tab on the memory module connector. 2 Insert the memory module into the memory module socket. 3 Press the memory module unt...
Page 14
3 Secure the PCIe expansion card by pushing the card retention latch until it clicks into place. 4 Close the release latch. 5 Close the front bezel door. 6 Install the: bezel cover 7 Follow the proced...
Page 15
Removing the power supply unit (PSU) 1 Follow the procedure in Before Working Inside Your Computer. 2 Remove the: cover bezel 3 Open the front bezel door. 4 To remove the PSU: Remove the screws that s...
Page 16
Remove the screws that secure the VGA connector to the computer [1]. Slide the VGA connector to release it from the computer [2]. Remove the screw that secures the VGA daughter board to the computer [...
Page 17
Installing the intrusion switch 1 Insert the intrusion switch into the slot on the computer. 2 Route the intrusion switch cable through the fan grommet. 3 Connect the intrusion switch cable to the con...
Page 18
Installing the power switch 1 Insert the power switch into the slot and press it until it clicks into place. 2 Route the power switch cable through the cable retention clip. 3 Connect the power switch...
Page 19
Removing the coin cell battery 1 Follow the procedure in Before Working Inside Your Computer. 2 Remove the: cover bezel 3 Open the front bezel door. 4 To remove the coin cell battery: Using a plastic ...
Page 20
Installing the heat sink assembly 1 Place the heat sink assembly on the processor. 2 Tighten the captive screws to secure the heat sink assembly to the system board. 3 Connect the heat sink assembly c...
Page 21
Installing the processor 1 Align the processor with the socket keys. CAUTION: Do not use force to seat the processor. When the processor is positioned correctly, it engages easily into the socket. 2 A...
Page 22
NOTE: Install the lower two grommets first. 5 Connect the system fan cable to the connector on the system board. 6 Close the front bezel door. 7 Install the: bezel cover 8 Follow the procedure in Afte...
Page 23
optional Ethernet port card PCIe expansion card VGA daughter board processor heat sink assembly 6 Close the front bezel door. 7 Install the: bezel cover 8 Follow the procedure in After Working Inside ...
Page 24
Hard drive and optical drive power cable connector SATA0 connector Internal USB connector Coin cell battery RTCRST/Password clear/MFG Jumper Removing and installing components
Page 25
Troubleshooting your computer You can troubleshoot your computer using indicators like diagnostic lights, beep codes, and error messages during the operation of the computer. Diagnostic power LED code...
Page 26
Power LED light status Possible cause Troubleshooting steps If the display is connected and turned on, listen for a beep code. Diagnostic error messages Table 2. Diagnostic error messages Error messag...
Page 27
Error messages Description HARD-DISK DRIVE CONTROLLER FAILURE 0 The hard drive does not respond to commands from the computer. Shut down the computer, remove the hard drive, and boot the computer from...
Page 28
Error messages Description MEMORY WRITE/READ FAILURE AT ADDRESS, READ A memory module may be faulty or improperly seated. Reinstall the VALUE EXPECTING VALUE memory module or, if necessary, replace it...
Page 29
System error messages Table 3. System error messages System message Description Alert! Previous attempts at booting this system The computer failed to complete the boot routine three consecutive have ...
Page 30
System Setup System Setup enables you to manage your computer hardware and specify BIOS level options. From the System Setup, you can: Change the NVRAM settings after you add or remove hardware View t...
Page 31
Table 4. Navigation keys Keys Navigation Up arrow Moves to the previous field. Down arrow Moves to the next field. Enter Allows you to select a value in the selected field (if applicable) or follow th...
Page 32
Option Description Processor Information: Displays Processor Type, Core Count, Processor ID, Current Clock Speed, Minimum Clock Speed, Maximum Clock Speed, Processor L2 Cache, Processor L3 Cache, HT C...
Page 33
Option Description Smart Reporting This field controls whether hard drive errors for integrated drives are reported during system startup. This option is disabled by default. USB Configuration Allows ...
Page 34
Option Description Disabled — Always prompt for the system and internal HDD password when they are set. This option is disabled by default. Reboot Bypass — Bypass the password prompts on Restarts (war...
Page 35
Option Description Disable Enable Expert key Management Allows you to manipulate the security key databases only if the system is in Custom Mode. The Enable Custom Mode option is disabled by default. ...
Page 36
Option Description Hyper Thread control Allows you to enable or disable Hyper Threading in the processor. Table 12. Power Management Option Description AC Recovery Determines how the system responds w...
Page 37
Option Description Minimal — The system boots quickly, unless the BIOS has been updated, memory changed, or the previous POST did not complete. Thorough — The system does not skip any steps in the boo...
Page 38
Option Description Server port Specifies the primary port of the cloud desktop. The default setting is 06910. Client Address Method Specifies how the client will obtain the IP address. Static IP DHCP ...
Page 39
You can also analyze which drivers need an update. To do this for your product, click Analyze System for Updates and follow the instructions on the screen. 10 Select your preferred download method in ...
Page 40
Deleting or changing an existing system and/or setup password Ensure that the Password Status is Unlocked (in the System Setup) before attempting to delete or change the existing System and/or Setup p...
Manual Details
| Brand | Dell |
|---|---|
| Pages | 46 |
| File Size | 2.69 MB |
| Published | June 28, 2026 |
8 views
Enter the captcha to get the download link:
Frequently Asked Questions
What are the dimensions and weight of the OptiPlex 3040?
It is 350.00 mm high, 154.00 mm wide, 274.00 mm deep, and weighs 8.00 kg.
What is the power supply wattage and heat dissipation?
The maximum power supply wattage is 240 W, with a heat dissipation of 819.00 BTU/hr.
What is the operating temperature range?
The operating temperature range is 5°C to 35°C (41°F to 95°F).
How do I contact Dell for support?
Go to Dell.com/support, select your support category, and verify your region.
