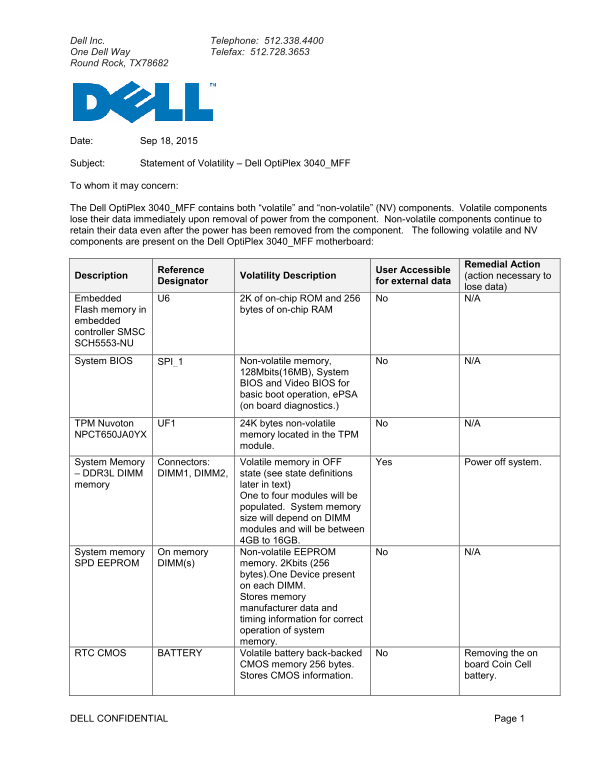

Statement of Volatility for Dell OptiPlex 3040 Micro Form Factor Owner's Manual

Dell Inc. Telephone: 512.338.4400 One Dell Way Telefax: 512.728.3653 Round Rock, TX78682

Date: Sep 18, 2015

Subject: Statement of Volatility – Dell Opti Plex 3040_MFF

To whom it may concern:

The Dell Opti Plex 3040_MFF contains both “volatile” and “non-volatile” (NV) components. Volatile components lose their data immediately upon removal of power from the component. Non-volatile components continue to retain their data even after the power has been removed from the component. The following volatile and NV components are present on the Dell Opti Plex 3040_MFF motherboard:

Remedial Action

Reference User Accessible

Description Volatility Description (action necessary to

Designator for external data

lose data)

Embedded U6 2K of on-chip ROM and 256 No N/A Flash memory in bytes of on-chip RAM embedded controller SMSC SCH5553-NU

System BIOS SPI_1 Non-volatile memory, No N/A

128Mbits(16MB), System BIOS and Video BIOS for basic boot operation, e PSA (on board diagnostics.)

TPM Nuvoton UF1 24K bytes non-volatile No N/A NPCT650JA0YX memory located in the TPM

module.

System Memory Connectors: Volatile memory in OFF Yes Power off system. – DDR3L DIMM DIMM1, DIMM2, state (see state definitions memory later in text)

One to four modules will be populated. System memory size will depend on DIMM modules and will be between 4GB to 16GB.

System memory On memory Non-volatile EEPROM No N/A SPD EEPROM DIMM(s) memory. 2Kbits (256

bytes).One Device present on each DIMM. Stores memory manufacturer data and timing information for correct operation of system memory.

RTC CMOS BATTERY Volatile battery back-backed No Removing the on

CMOS memory 256 bytes. board Coin Cell Stores CMOS information. battery.

DELL CONFIDENTIAL Page 1
