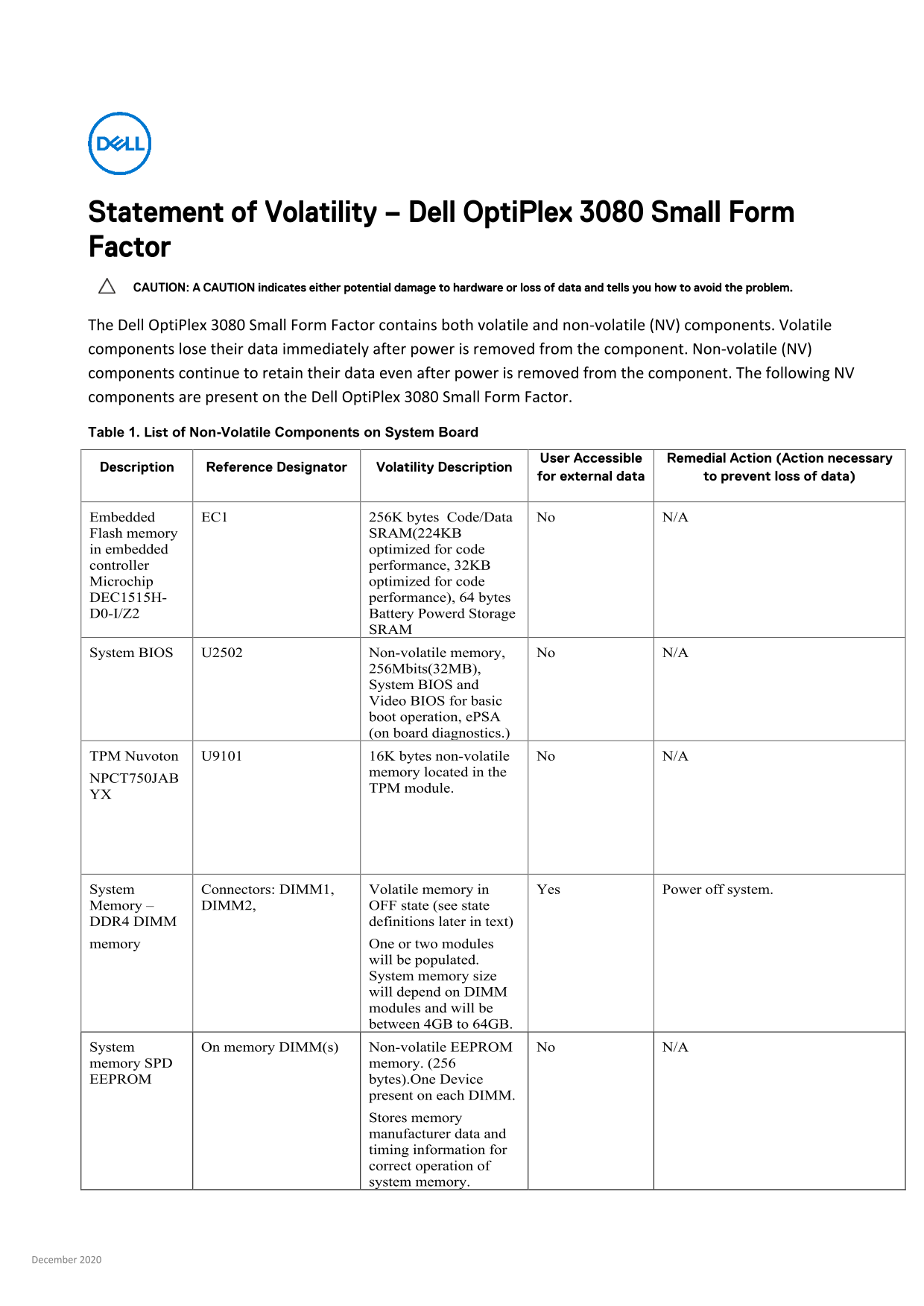

Dell OptiPlex 3080 Small Form Factor Statement of Volatility

Statement of Volatility – Dell Opti Plex 3080 Small Form Factor CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell Opti Plex 3080 Small Form Factor contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even after power is removed from the component. The following NV components are present on the Dell Opti Plex 3080 Small Form Factor. Table 1. List of Non-Volatile Components on System Board

User Accessible Remedial Action (Action necessary

Description Reference Designator Volatility Description

for external data to prevent loss of data)

Embedded EC1 256K bytes Code/Data No N/A Flash memory SRAM(224KB in embedded optimized for code controller performance, 32KB Microchip optimized for code DEC1515H- performance), 64 bytes D0-I/Z2 Battery Powerd Storage

System BIOS U2502 Non-volatile memory, No N/A

256Mbits(32MB), System BIOS and Video BIOS for basic boot operation, e PSA (on board diagnostics.)

TPM Nuvoton U9101 16K bytes non-volatile No N/A

memory located in the

NPCT750JAB

TPM module.

System Connectors: DIMM1, Volatile memory in Yes Power off system. Memory – DIMM2, OFF state (see state DDR4 DIMM definitions later in text) memory One or two modules

will be populated. System memory size will depend on DIMM modules and will be between 4GB to 64GB.

System On memory DIMM(s) Non-volatile EEPROM No N/A memory SPD memory. (256 EEPROM bytes).One Device

present on each DIMM. Stores memory manufacturer data and timing information for correct operation of system memory.

December 2020
