Dell OptiPlex 5090 Small Form Factor Statement of Volatility
Summary
Statement of Volatility for Dell OptiPlex 5090 Small Form Factor documenting all volatile and non-volatile memory components on the system board, including embedded flash in microcontroller, BIOS flash memory, TPM module, DDR4 DIMM system memory (4-128GB), SPD EEPROMs, RTC CMOS, and Intel ME flash. Provides remediation actions for data clearing. Intended for security and compliance personnel.

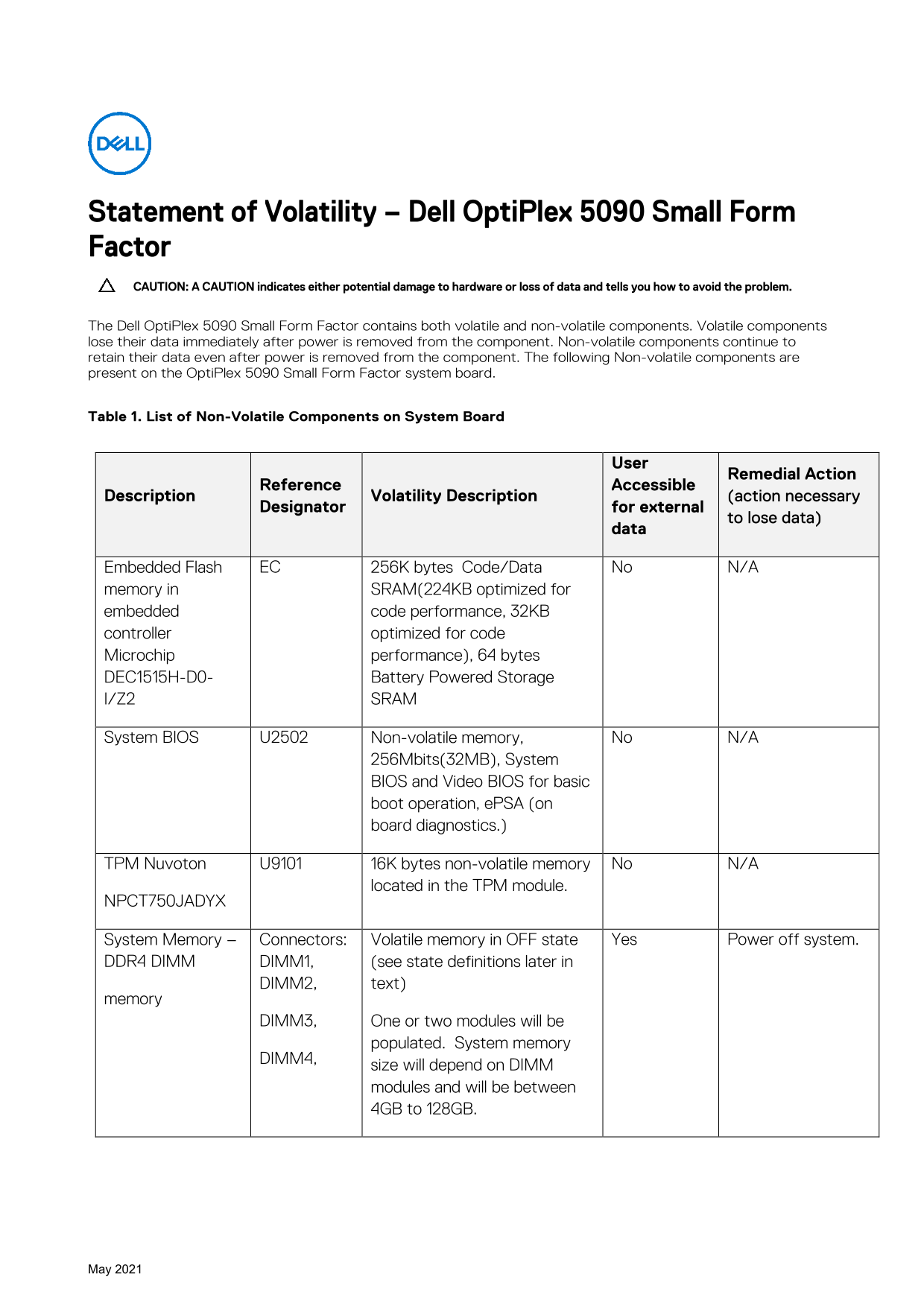

Page 1 Text Content
Statement of Volatility – Dell Opti Plex 5090 Small Form Factor CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell Opti Plex 5090 Small Form Factor contains both volatile and non-volatile components. Volatile components lose their data immediately after power is removed from the component. Non-volatile components continue to retain their data even after power is removed from the component. The following Non-volatile components are present on the Opti Plex 5090 Small Form Factor system board.
Table 1. List of Non-Volatile Components on System Board
Remedial Action
Reference Accessible
Description Volatility Description (action necessary
Designator for external
to lose data)
Embedded Flash EC 256K bytes Code/Data No N/A
memory in SRAM(224KB optimized for embedded code performance, 32KB controller optimized for code Microchip performance), 64 bytes DEC1515H-D0- Battery Powered Storage I/Z2 SRAM
System BIOS U2502 Non-volatile memory, No N/A
256Mbits(32MB), System BIOS and Video BIOS for basic boot operation, e PSA (on board diagnostics.)
TPM Nuvoton U9101 16K bytes non-volatile memory No N/A
located in the TPM module.
NPCT750JADYX
System Memory – Connectors: Volatile memory in OFF state Yes Power off system.
DDR4 DIMM DIMM1, (see state definitions later in
DIMM2, text)
memory
DIMM3, One or two modules will be
populated. System memory
DIMM4,
size will depend on DIMM modules and will be between 4GB to 128GB.
May 2021
Page Summary Contents For Dell OptiPlex 5090 Small Form Factor Statement of Volatility
Manual Details
| Brand | Dell |
|---|---|
| Pages | 3 |
| File Size | 136.20 KB |
| Published | June 24, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What happens to data if the main power cord is unplugged?
Data on volatile components like DDR4 memory will be lost immediately. All user data on memory will be destroyed.
Does removing the coin cell battery erase configuration data?
Yes, removing the on-board coin cell battery destroys system data regarding configuration and time-of-day information.
Which power states does the OptiPlex 5090 Small Form Factor support?
It supports S0 (working), S1 (low wake-up latency), S3 (suspend to RAM), S4 (hibernate), and S5 (soft off).
Is system memory volatile or non-volatile?
System memory is volatile and loses data when power is removed, though non-volatile SPD EEPROM chips store timing info.
