Dell OptiPlex 7090 Micro Form Factor Statement of Volatility

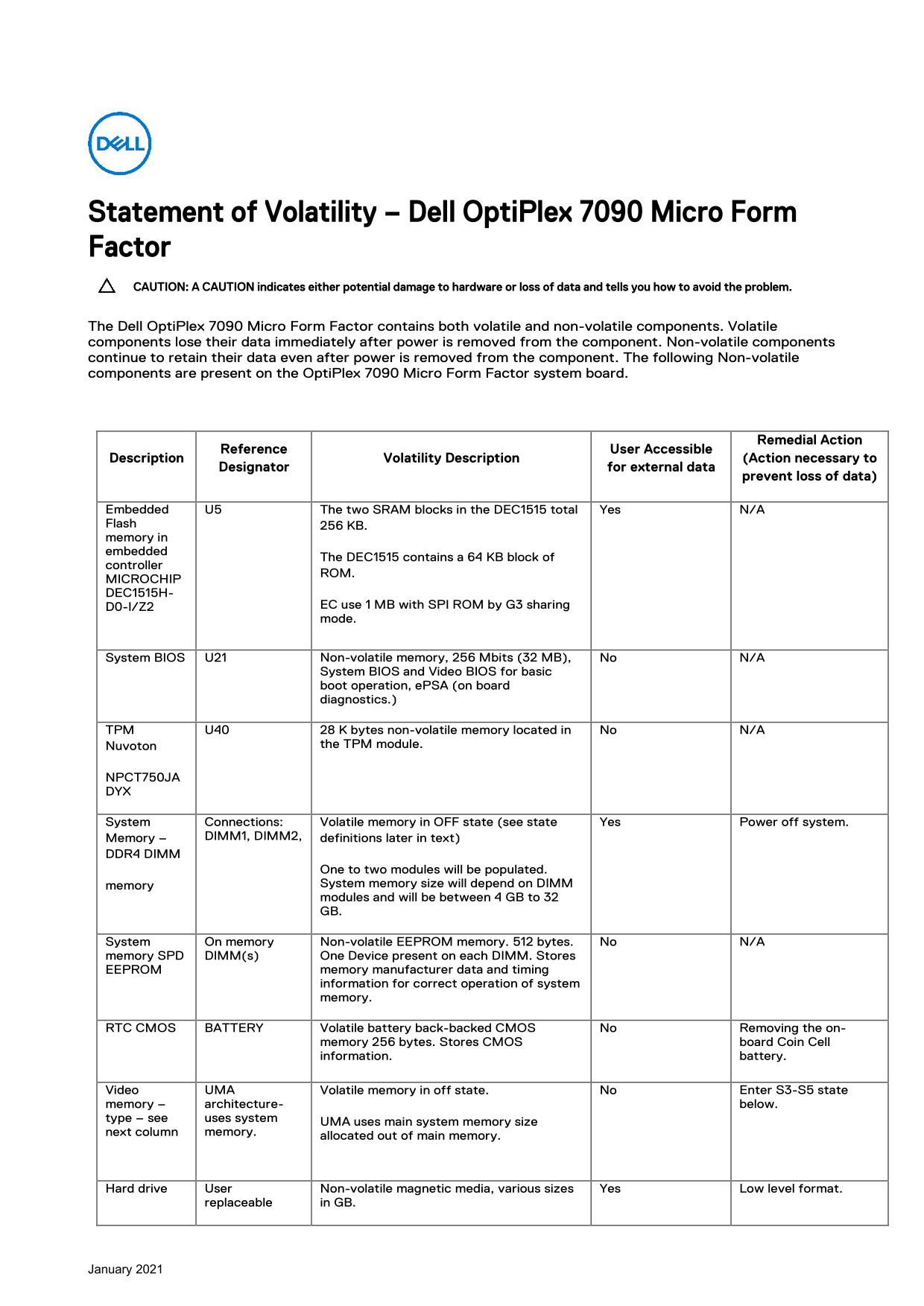

Statement of Volatility – Dell Opti Plex 7090 Micro Form Factor CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell Opti Plex 7090 Micro Form Factor contains both volatile and non-volatile components. Volatile components lose their data immediately after power is removed from the component. Non-volatile components continue to retain their data even after power is removed from the component. The following Non-volatile components are present on the Opti Plex 7090 Micro Form Factor system board.

Remedial Action

Reference User Accessible

Description Volatility Description (Action necessary to

Designator for external data

prevent loss of data)

Embedded U5 The two SRAM blocks in the DEC1515 total Yes N/A Flash 256 KB. memory in embedded

The DEC1515 contains a 64 KB block of

controller

MICROCHIP DEC1515H-

D0-I/Z2 EC use 1 MB with SPI ROM by G3 sharing mode.

System BIOS U21 Non-volatile memory, 256 Mbits (32 MB), No N/A

System BIOS and Video BIOS for basic boot operation, e PSA (on board diagnostics.)

TPM U40 28 K bytes non-volatile memory located in No N/A

Nuvoton the TPM module.

NPCT750JA DYX

System Connections: Volatile memory in OFF state (see state Yes Power off system.

Memory – DIMM1, DIMM2, definitions later in text)

DDR4 DIMM

One to two modules will be populated. memory System memory size will depend on DIMM modules and will be between 4 GB to 32 GB.

System On memory Non-volatile EEPROM memory. 512 bytes. No N/A memory SPD DIMM(s) One Device present on each DIMM. Stores

EEPROM memory manufacturer data and timing information for correct operation of system memory.

RTC CMOS BATTERY Volatile battery back-backed CMOS No Removing the on-

memory 256 bytes. Stores CMOS board Coin Cell information. battery.

Video UMA Volatile memory in off state. No Enter S3-S5 state memory – architecture- below. type – see uses system

UMA uses main system memory size

next column memory.

allocated out of main memory.

Hard drive User Non-volatile magnetic media, various sizes Yes Low level format.

replaceable in GB.
